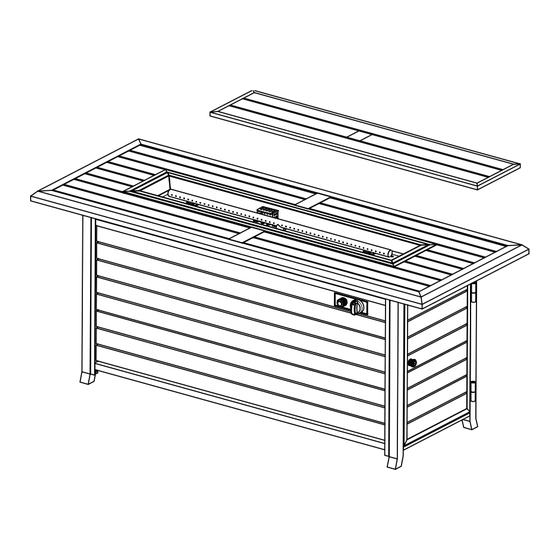

Legacy Heating WELLFP-RA Owner's Manual

Hide thumbs

Advertisement

Table of Contents

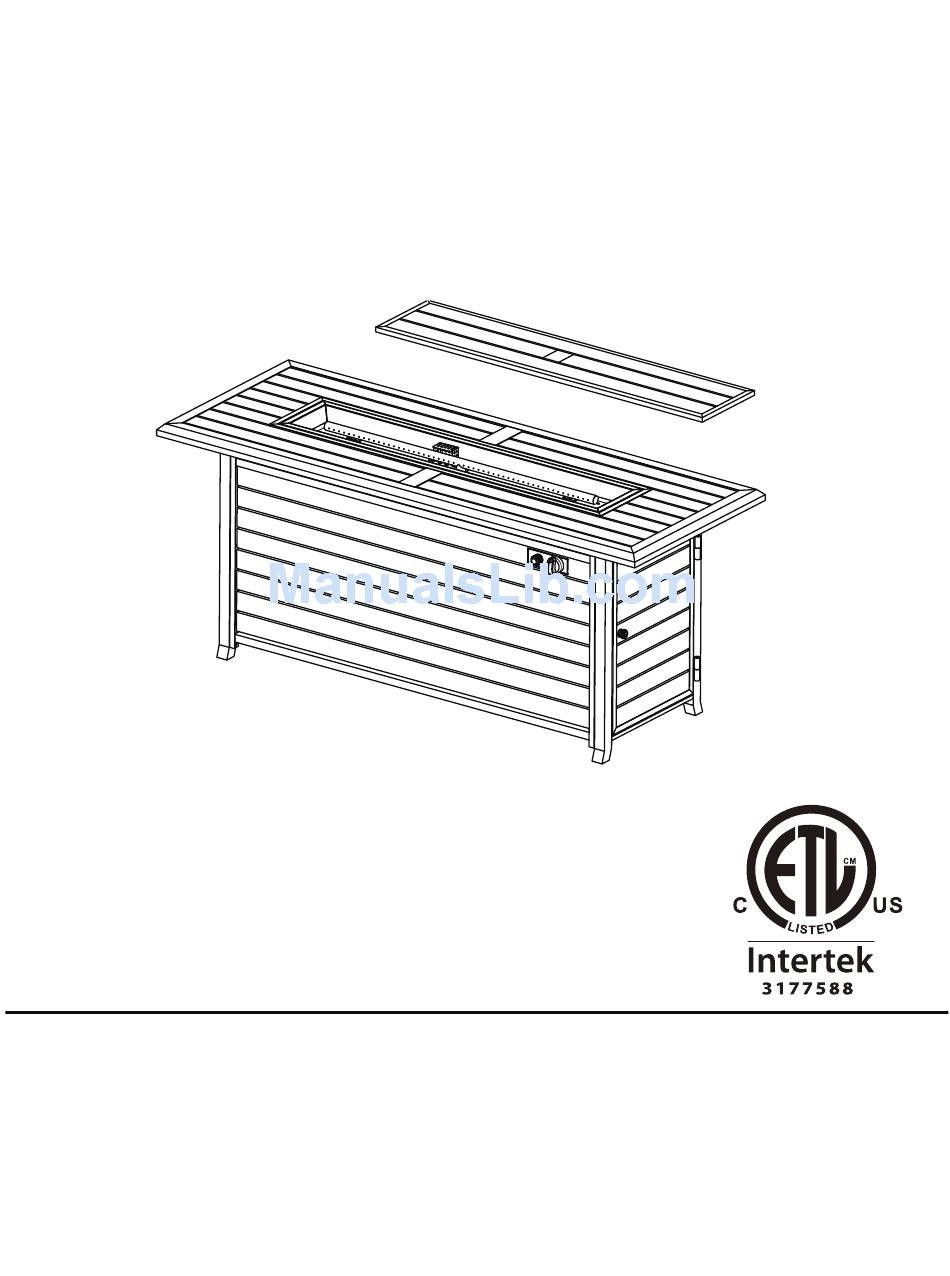

Owner's Manual
MODEL NO.: WELLFP-RA/CDFP-S-CB-M/CDFP-S-CB/CDFP-S-CB-B
/CDFP-S-CBMOCHA/CDFP-S-Cbwood/ vc-CDFP-S-CBmocha/vc-CDFP-S-CB
/ vc-CDFP-S-CBwood/ v-CDFP-S-Cbwood/ v-CDFP-S-CB/ v-CDFP-S-Cbmocha
Conforms to ANSI STD Z21.97-2014 Certified to CSA STD 2.41-2014
If you have any question or concerns, please DO NOT RETURN this item before contact with customer service.
Please contact with California Outdoor Design at the below resources:
Toll Free Phone: 800-305-8803 Monday –Friday 8am-4:30pm.
Email:Support@legacyheatcalifornia.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WELLFP-RA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Legacy Heating WELLFP-RA

Summary of Contents for Legacy Heating WELLFP-RA

  • Page 1 Owner's Manual MODEL NO.: WELLFP-RA/CDFP-S-CB-M/CDFP-S-CB/CDFP-S-CB-B /CDFP-S-CBMOCHA/CDFP-S-Cbwood/ vc-CDFP-S-CBmocha/vc-CDFP-S-CB / vc-CDFP-S-CBwood/ v-CDFP-S-Cbwood/ v-CDFP-S-CB/ v-CDFP-S-Cbmocha Conforms to ANSI STD Z21.97-2014 Certified to CSA STD 2.41-2014 If you have any question or concerns, please DO NOT RETURN this item before contact with customer service.

  • Page 2: Safety Information

    SAFETY INFORMATION DANGER CARBON MONOXIDE HAZARD WARNING: • This appliance can produce carbon monoxide which has no odor. • Using it in an enclosed space can kill you. Improper installation, adjustment, alteration, service or • Never use this appliance in a enclosed space such maintenance can cause property damage, injury or death.

  • Page 3: Burn Hazard

    SAFETY INFORMATION CAUTION WARNING Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. An CAUTION indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate LP-cylinder not connected for use shall not be stored in personal injury, or property damage.

  • Page 4: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION QUANTITY Table top with burner Back Panel Right Side Panel Left Side Panel Bottom Plate Door Panel With Door...

  • Page 5: Hardware Contents

    HARDWARE CONTENTS M6x25 Bolt Wrench B Battery M8x16 M8 Washer M6 Washer Wrench A Qty. 12 Qty. 1 Qty. 1 Bolt . 4 Qty. 4 Qty. 12 Qty. 1 Propane Tank Strap Fire Glass Vinyl Fire Pit Qty. 1 Qty. 1 pack Cover Qty.

  • Page 6: Operation Checklist

    OPERATION CHECKLIST Operation Checklist For a safe and pleasurable heating experience, perform this check before each use. Before Operating: 1. I am famili ar with entire owner’s manual and understand all precautions noted. 2. All components are properly assembled, intact and operable. 3.
  • Page 7 ASSEMBLY 1. Locate B/C/D and Door Panel with Door -F . Align hole in all panels and insert M6x25 Bolts ( AA) , througn M6 Washer (BB) ,then insert Bolt /Washer through holes . Loosely tighten with Wrench A (CC) .DO NOT OVERTIGHTEN AS you will need to adjust the panels to ensure proper alignment Hardware used Hardware Used:...
  • Page 8 ASSEMBLY 4. Attach the table top ( A) to the assembled side panels . Align the holes in the table top (A) with the holes at the top of the assembled side Panels and insert M8 x16 Bolts through M8 Washer ( GG ) and through holes . Tighten with Wrengh B ( HH ) Do not overtighten as you will need to adjust the holes to ensure proper alignment .
  • Page 9 ASSEMBLY 6. Close the door and turn the door knob to hold the door shut . Fire pit assembely is now complete . At the bottom of legs ,there are four sdjustable screws , Consumer can adjust the screws to a conformation heright . .
  • Page 10 ASSEMBLY A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S. Department of Transportation(DOT) or the standard for cylinders, spheres and tubes for transportation of dangerous goods and commission, CAN/CSA-B339.
  • Page 11 OPERATION INSTRUCTIONS Leak Test WARNING Perform all tests outdoors. Extinguish all open flames. NEVER leak test when smoking. Do not use the fire pit until all connections have been leak tested and do not leak. Hose/Regulator Regulator/Cylinder Connection Connection 1. Make 2-3 oz. of leak test solution (one part liquid dishwashing detergent and three parts water). 2.Apply several drops of solution where hose attaches to regulator.

  • Page 12: Carbon Monoxide Hazard

    OPERATION INSTRUCTIONS DANGER WARNING CARBON MONOXIDE HAZARD VERY HOT WHILE IN OPERATION For outdoor use only. Never us inside house, or other Never lean over the fire pit while in use. Do not touch unventilated or enclosed areas. This fire pit consumes air surfaces while the fire pit is in operation.

  • Page 13: For Your Safety

    OPERATION INSTRUCTIONS WARNING FOR YOUR SAFETY Be careful when attempting to manually ignite this fire pit. Holding in the control knob for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition. Re-lighting: 1. Turn control knob to OFF. 2.
  • Page 14 CARE AND MAINTENANCE • o l l • Fire pit does NOT reach the desired temperature. • Fire pit glow is excessively uneven. • Fire pit makes popping noises. • Spiders and insects can nest in burner or orifices. This dangerous condition can damage fire pit and render it unsafe for use.

  • Page 15: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Propane cylinder is empty Replace propane cylinder Burner won’t light Blockage in orifice Clear blockage Control knob is not in ON position Turn control knob to ON Turn cylinder valve OFF and re-fill the Gas pressure is low cylinder Outdoor temperature is less than 40°F...
