Owner's Manual
ANS Z21.97-2010, Outdoor Decorative Gas Appliances
CGA CR 97-003 Outdoor Gas Fireplaces
INSISTS ON THE HIGHEST STANDARD OF QUALITY IN MANUFACTURING.
IN CASE OF ANY ISSUES DO NOT RETURN TO STORE.
CALL 1-800-379-2185 OR E-MAIL US AT info@calell.com WITH QUESTIONS OR WARRANTY ISSUES.
OUR OFFICE HOURS ARE MONDAY TO FRIDAY 8 AM – 4 PM (PST).
WE WILL BE BACK TO YOU AS QUICKLY AS POSSIBLE.

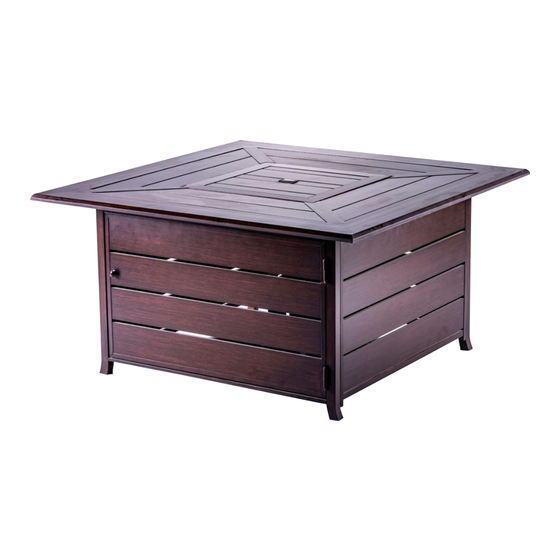

OUTDOOR FIRE PIT
MODEL NO.:
WELLFP-S-CA2(5)/CDFP-S-CA/ CDFP-S-CA HB
/CDFP-S-Camocha /CSFP-S-CAwood
/vc-CDFP-S-Camocha/vc-CDFP-S-Cawood
/v-CDFP-S-CA/v-CDFP-CAA
Advertisement
Table of Contents
Related Manuals for Legacy Heating WELLFP-S-CA2
Summary of Contents for Legacy Heating WELLFP-S-CA2
- Page 1 Owner's Manual OUTDOOR FIRE PIT MODEL NO.: WELLFP-S-CA2(5)/CDFP-S-CA/ CDFP-S-CA HB /CDFP-S-Camocha /CSFP-S-CAwood /vc-CDFP-S-Camocha/vc-CDFP-S-Cawood /v-CDFP-S-CA/v-CDFP-CAA ANS Z21.97-2010, Outdoor Decorative Gas Appliances CGA CR 97-003 Outdoor Gas Fireplaces INSISTS ON THE HIGHEST STANDARD OF QUALITY IN MANUFACTURING. IN CASE OF ANY ISSUES DO NOT RETURN TO STORE.
-
Page 3: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Table Top Right Panel Doorframe Door Back Panel Left Panel Bottom Plate Lava Rock Protective Cover Battery Adjust Foot... -
Page 4: Hardware Contents
HARDWARE CONTENTS Item Description M6X30 Screw M6X12 Screw M6 washer M8X16 Bolt M8 Washer Propane Tank Strap Wrench Philips (not included） SAFETY INFORMATION SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install this appliance. If you have any questions regarding the product, please call customer service 1-800-379-2185 Monday-Friday,... -
Page 5: Carbon Monoxide Hazard
SAFETY INFORMATION DANGER DANGER EXPLOSION – FIRE HAZARD CARBON MONOXIDE HAZARD Keep solid combustibles, such as building materials, This fire pit is a combustion appliance. All combustion paper, or cardboard a safe distance away from the fire appliances produce carbon monoxide (CO) during the pit as recommended by the instructions. -
Page 6: Burn Hazard
SAFETY INFORMATION WARNING WARNING This product is fueled by propane gas. Propane gas is invisible, odorless, and flammable. An odorant is California Proposition 65 Warning: normally added to help detect leaks and can be Combustion by-products produced when using this described as having a “rotten egg”... -
Page 7: Operation Checklist
OPERATION CHECKLIST Operation Checklist For a safe and pleasurable heating experience, perform this check before each use. Before Operating: 1. I am familiar with entire owner’s manual and understand all precautions noted. 2. All components are properly assembled, intact and operable. 3. - Page 8 ASSEMBLY INSTRUCTIONS Attach propane tank straps(FF) to the bottom plate(H) in two cross corners as shown. 2.Align the right panel(C) and left panel(G) into bottom(H) using 4pcs M6X30 screws(AA) and 4pcs M6 washers(CC).Be sure not to over tighten-you may need to adjust the panels later on to ensure proper alignment.
- Page 9 ASSEMBLY INSTRUCTIONS 4. Assemble the back panel(F) using 4pcs M6X12 screws(BB) and 4pcs M6 washers(CC). CC BB Insert door(E) into the bottom hole. Assemble doorframe(D) using 4pcs M6X12 screws (BB) and 4pcs M6 washers(CC).
- Page 10 ASSEMBLY INSTRUCTIONS Attach the table top(B)to the panel construction by aligning the holes at the bottom of the table top to the holes in the top of the panel construction and securing with 4pcs M8X16 bolts(DD) and 4pcs M8 washers(EE),tighten with wrench(GG).Be sure to position the control panel to be over the door panel(E).
-
Page 11: Pressure Relief Valve
ASSEMBLY INSTRUCTIONS 9. Place a 20 lb. propane gas tank (not included) into the round stand on bottom plate (H). Insert one pr opane tank strap (FF) th rough the handle holes on the collar of the 20 lb. propane gas tank. Connect with the other propane tank strap (FF) by attaching the buckles together. -
Page 12: Operation
OPERATION Before performing a leak test, be sure that no sparks can occur and you are in a spacious outdoor area. Connect the propane gas tank to the regulator and turn the valve on the unit to the “off” position. Brush a soap and water mixture on all connections. Turn the gas supply on; if bubbles occur on any connection there may be a leak. -
Page 13: Maintenance
MAINTENANCE • Before performing any maintenance always disconnect propane gas tank. • Keep the heating item free and clear from combustible materials. • Visually inspect burner for obstructions and keep tank enclosure free and clear from debris. • Use a soft brush to get rid of the mild stains, loose dirt and soil after the burner and pumice stones/ are completely cooled down. -
Page 14: Troubleshooting
TROUBLESHOOTING Problem Cause Solution Igniter pin and burner are wet Dry off with a soft cloth Igniter battery is incorrectly inserted Check which direction the battery is inserted Igniter pin is broken Contact Bond Manufacturing Co., Inc. for Heating unit won’t light a replacement part Electrode wire is loose or disconnected Reconnect wire to the igniter box located...
