Lighting

CAUTION:Keep outdoor gas appliance area clear and free from combustible
material, gasoline and other flammable vapors and liquid.
CAUTION:Do NOT obstruct the flow of combustion and ventilation air.
CAUTION:Check and clean burner/ venturi tubes for insects and insect nests. A clogged
tube can lead to a fire.
CAUTION:Attempting to light the burner with a lid on it may cause an explosion
1. Make sure all labels, packing and protective films have been removed from the outdoor
fireplace.
2. Check for obstructions of airflow to the burner. Spiders, insects and webs can clog the
burner/venturi tube. A clogged burner tube can lead to a fire.
3. Control knob must be in the "OFF" position.
4. Clear small area of lava rocks away from the pilot housing .
5. Connect LP gas tank per " Installing gas tank" section.
6. Turn LP gas tank valve to "ON".
7. Push in gas control knob & turn counter clockwise to " HIGH" .
8. Manually ignite with match or lighter.
9. Afterthe fire pit lights, release control knob. To decrease the flame, turn the control knob
clockwise to "LOW". To increase the flame, turn the control knob counter clockwise to
"HIGH".
10. After lighting, observe the burner flame. Make sure all burner ports are lit and flame
height matches illustration(Figure 1).
Note: If burner fails to remain lit, all valves should be closed and a waiting periodof at least 5
minutes should pass before attemping to light.
CAUTION: After lighting - using a fireplace tool and heat-resistant g ves,
move the lava rocks back to their proper position, being careful to avoid the flame.
CAUTION: If ignition does not occur in 5 seconds turn burner control knob to "OFF' ,
wait 5 minutes, fan with a newspaper or magazine, and repeat lighting procedure.
Cleaning and Care
1. All cleaning and maintenance should be done when outdoor fireplace is cool
and with the fuel supply disconnected.
2. Do NOT clean any outdoor fireplace part in self-cleaning oven. The extreme heat
will damage the finish.
3. Do NOT enlarge valve orifices or burner ports when cleaning the valves or burners.
Turning Off
1. Turn LP gas tank valve "OFF" .
2. Turn control knob to the "OFF" position.
Note: A "poof" sound is normal as the last of the LP gas in burned.
3. Disconnect LP gas tank per "Disconnecting LP gas tank" section.

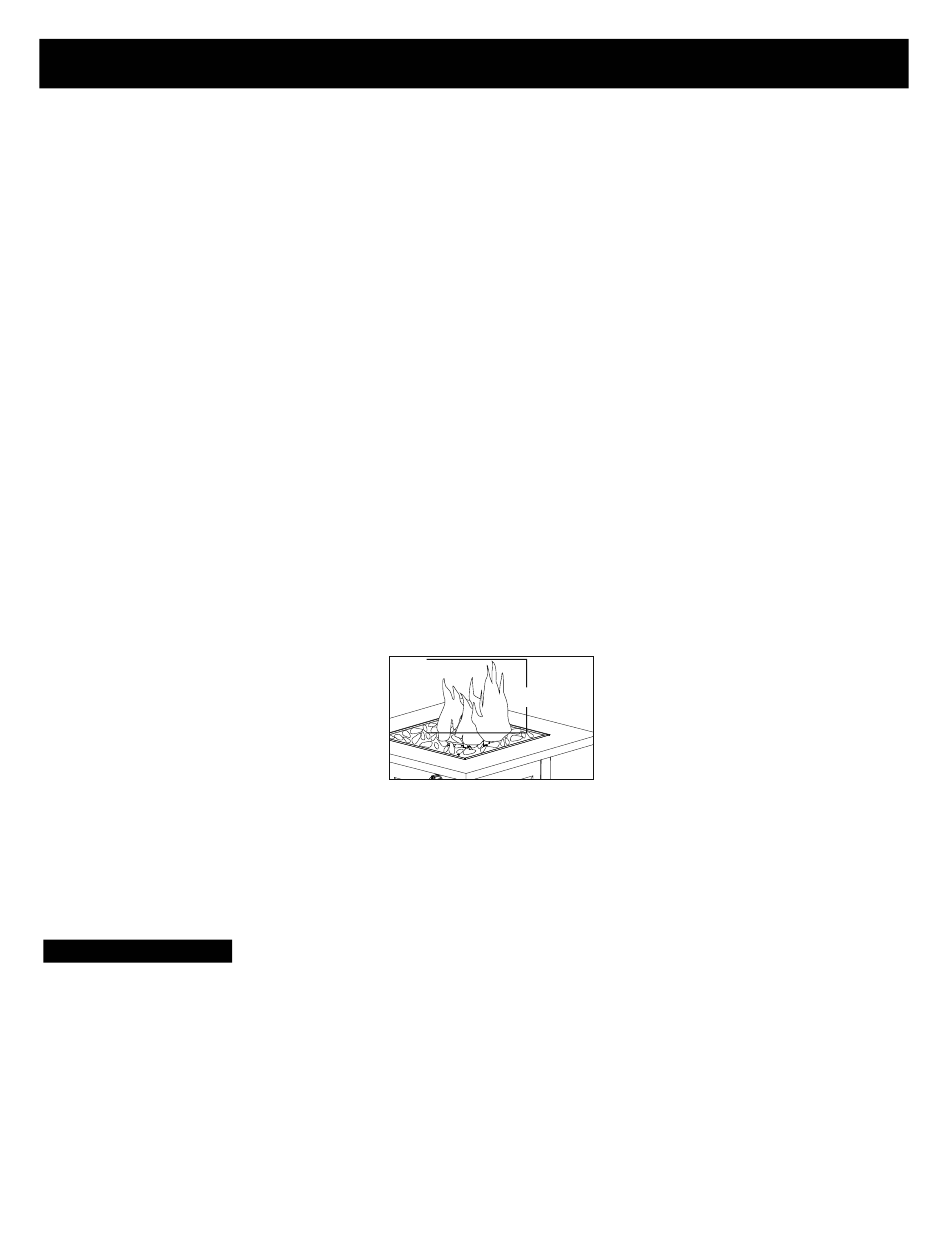

Figure 1
15.75 in-19.7 in
40-60 cm
