SmartSwitch 9000
9E132-15, 9E133-36
9E138-12 & 9E138-36
User's Guide
9031173-02

Advertisement

Table of Contents
loading

Related Manuals for Cabletron Systems 9E133-36

Summary of Contents for Cabletron Systems 9E133-36

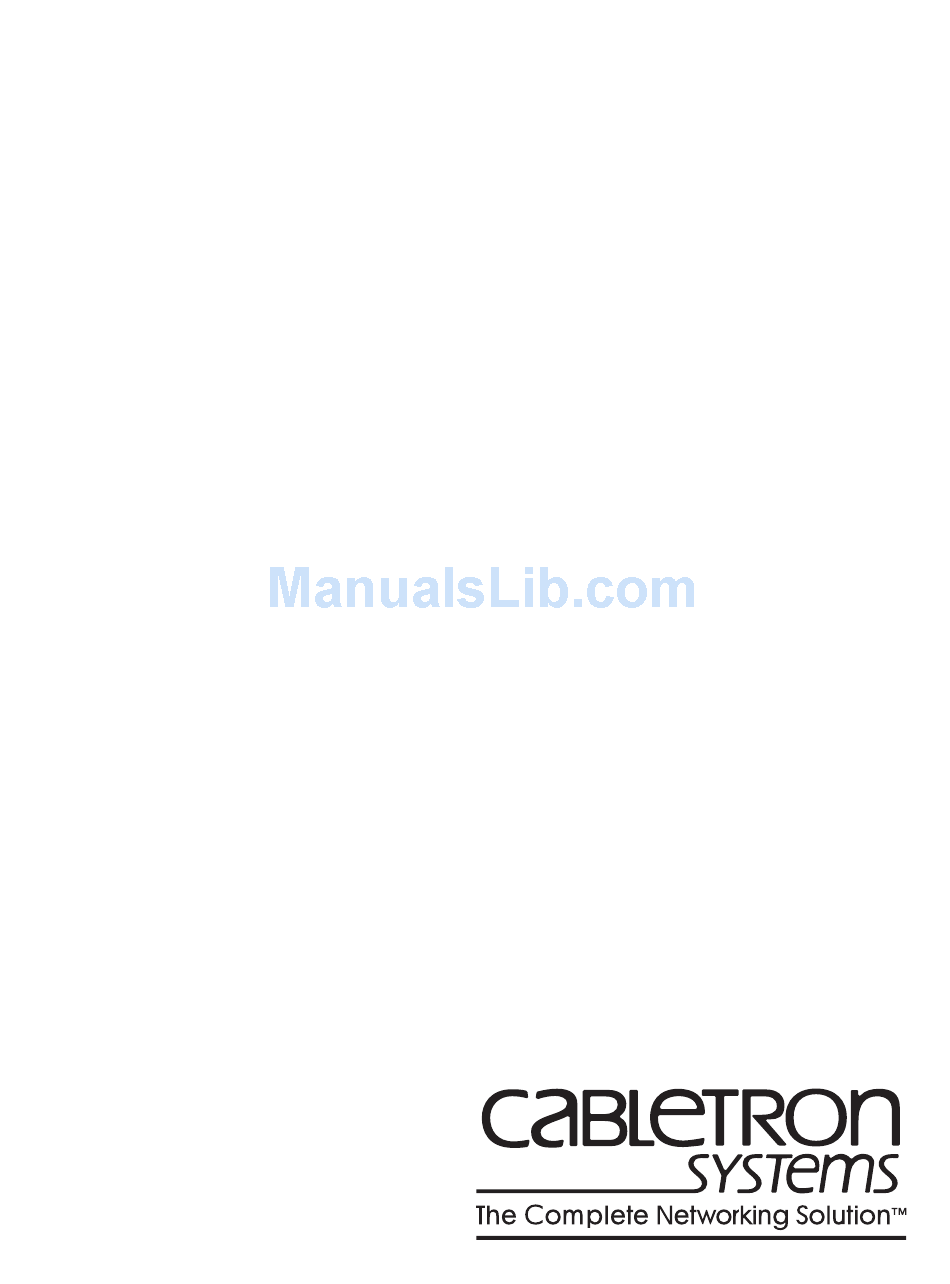

  • Page 1 SmartSwitch 9000 9E132-15, 9E133-36 9E138-12 & 9E138-36 User’s Guide 9031173-02...
  • Page 3 Printed in the United States of America Order Number: 9031173-02 LANVIEW is a registered trademark, and SmartSwitch is a trademark of Cabletron Systems, Inc. CompuServe is a registered trademark of CompuServe, Inc. i960 microprocessor is a registered trademark of Intel Corp.

  • Page 4: Fcc Notice

    Notice FCC Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.

  • Page 5: Declaration Of Conformity

    ____________________________________________________ Title Rochester, NH, USA ____________________________________________________ Location ADDENDUM 89/336/EEC 73/23/EEC Cabletron Systems, Inc. 35 Industrial Way PO Box 5005 Rochester, NH 03867 Mr. J. Solari Cabletron Systems Limited Nexus House, Newbury Business Park London Road, Newbury Berkshire RG13 2PZ, England...
  • Page 6 Notice...

  • Page 7: Table Of Contents

    Installing EPIMs ... 2-3 EPIM Revisions ... 2-3 Installing the EPIM ... 2-4 The Reset Switch ... 2-5 User-Accessible Components... 2-6 Setting the Module Card DIP Switch ... 2-7 Chapter 3 Operation Flexible Network Bus (FNB)... 3-2 System Management Buses ... 3-2 SMB-1 Bus ...
  • Page 8 Contents Appendix A EPIMs EPIM-T ...A-1 EPIM-F1 and EPIM-F2...A-2 EPIM-F3 ...A-3 EPIM-C...A-5 Connector Type ...A-5 Grounding...A-5 EPIM-A and EPIM-X (AUI Port) ...A-5...

  • Page 9: Chapter 1 Introduction

    The 9E132-15 provides four RJ-45 ports and one EPIM slot for each of the three channels. See Chapter 5 for information on the use of EPIMs. The 9E133-36 has one 50-pin front panel for each of the three channels, providing 12 individual Ethernet connections each.
  • Page 10 RMON RMON support (RFC1271). LANVIEW LEDs The Ethernet MicroLan Switch Modules use LANVIEW: the Cabletron Systems built-in visual diagnostic and status monitoring system. With LANVIEW LEDs, you can quickly identify the device, port, and physical layer status at a glance.
  • Page 11 ETHERNET ETHERNET 9E132-15 9E133-36 Figure 1-1. The Ethernet MicroLan Switch Modules ETHERNET ETHERNET 9E138-12 9E138-36 ENET 1 ENET 1 ENET 1 ENET 1 ENET 2 ENET 2 ENET 2 ENET 2 ENET 3 ENET 3 ENET 3 ENET 3 ETHERNET 1...

  • Page 12: Related Manuals

    SmartSwitch 9000 9C300-1 Environmental Module User’s Guide SmartSwitch 9000 9C214-1 AC Power Supply User’s Guide SmartSwitch 9000 Module Local Management User’s Guide Getting Help For additional support related to this device or document, contact the Cabletron Systems Global Call Center: Phone Internet mail...

  • Page 13: Chapter 2 Installing The Modules

    Electrostatic Discharge (ESD). 5. Carefully examine the module, checking for damage. If any damage exists, DO NOT install the module. Contact Cabletron Systems Global Call Center immediately. 6. Before installing the SmartSwitch 9000 cards into the chassis, ensure that the bottom and top plastic tabs are unlocked.
  • Page 14 Installing the Modules Metal Back-Panel Module Module Guides Warning: Ensure that the circuit card is between the card guides. Lock down the top and bottom plastic tabs at the same time, applying even pressure. Figure 2-1. Installing the Module Plastic Tab Jack for ESD Wrist Strap...

  • Page 15: Installing Epims

    Part Number as shown in Figure 2-2. Table 2-1 lists the required board revision for each EPIM. EPIM-F2 EPIM-F1 EPIM-F3 EPIM-A EPIM Board Revision CABLETRON SYSTEMS INC. PN 9000474 - 04 EPIM-T Figure 2-2. Location of Revision Number Table 2-1. EPIM Board Revisions EPIM EPIM BOARD REVISION EPIM-T...

  • Page 16: Installing The Epim

    Installing the Modules Installing the EPIM To install an EPIM: When removing an EPIM, make sure to pull the module straight out so as not to NOTE damage the connector. 1. Remove the coverplate or the EPIM (whichever applies). 2. Slide your new EPIM into place, making sure the connectors on the rear of the module and inside the HUB attach properly.

  • Page 17: The Reset Switch

    The Reset Switch The Reset switch is located on the front panel, under the top plastic tab, as shown in Figure 2-4. (Under the right-side tab on the 9E138-36.) It serves two functions: • Pressing the Reset switch twice within three seconds causes the processor (i960) to reset.

  • Page 18: User-Accessible Components

    User-Accessible Components Figure 2-5 shows the various components that are accessible to the user. These consist of an eight-position dip switch (explained in the next section), replaceable PROMs and sockets for RAM. These will be used for future upgrades. Instructions for installing the components will be supplied with the upgrade kit.

  • Page 19: Setting The Module Card Dip Switch

    Setting the Module Card DIP Switch An eight-switch DIP switch is located on the module card, as shown in Figure 2-5 and Figure 2-6. The functions of the switches are listed in Table 2-2. Figure 2-6. Location of Module DIP Switch...
  • Page 20 Caution: Do not toggle Switch 7 unless you intend to reset the user parameters to the factory default settings. Caution: Do not toggle switch 6 unless a bootp server is connected to the EPIM of the Environmental Module. Table 2-2. Function of DIP Switch...

  • Page 21: Chapter 3 Operation

    (FNB-1 or FNB-2). SmartSwitch 9000 modules connect to either the Internal Network Bus (INB) or the Flexible Network Bus (FNB) bus. The Ethernet MicroLan Switch Modules connect to the FNB bus. Figure 3-1 is a block diagram of the modules. The front panel contains three Ethernet connections that interface to the Repeater Interface Controllers (RIC).

  • Page 22: Flexible Network Bus (Fnb)

    Operation Flexible Network Bus (FNB) The FNB consists of two dual FDDI networks, the FNB-1 and FNB-2, providing up to 400 Mbps of data bandwidth. These FDDI networks are 100% ANSI FDDI- compliant, supporting SMT (version 7.3), MAC, PHY, and PMD standards. This allows the FNB to traverse multiple SmartSwitch 9000 hubs, or connect to any ANSI FDDI-compliant device, through standard A/B port connections.

  • Page 23: System Diagnostic Controller

    LCD located on the Environmental Module. The Ethernet MicroLan Switch Modules have been designed so that in the event of a diagnostic controller fault, the modules will continue to function.

  • Page 24: I960 Core

    Operation i960 Core The i960 core in the FNB module serves two major functions: it provides the packet forwarding logic and performs all network management services. FNB modules can be configured to run as layer 2 bridges, layer 3 routers, or as Fast Packet Switches.

  • Page 25: Chapter 4 Lanview Leds

    The front panel LANVIEW LEDs, shown in Figure 4-1, indicate the status of the module and may be used as an aid in troubleshooting. FNB Receive ETHERNET System Status FNB Transmit Ethernet Receive Ethernet Transmit Link (9E132-15 and 9E133-36) Link (9E138-12 and 9E138-36) Figure 4-1. LANVIEW LEDs Chapter 4 ENET 1...
  • Page 26 LANVIEW LEDs The functions of the System Management Bus (SMB) and CPU LEDs are listed in Table 4-1. LED Color Green Yellow Yellow/Green Red (Flashing) The function of the FNB Receive LED is listed in Table 4-2. LED Color Yellow (Flashing) The function of the FNB Transmit LED is listed in Table 4-3.
  • Page 27 The functions of the Ethernet Receive LEDs are listed in Table 4-4. Table 4-4. Ethernet Receive LEDs LED Color Green Link, No activity Yellow (Flashing) Link, Activity (Flashing rate indicates rate of activity) No link, No activity The functions of the Ethernet Transmit LEDs are listed in Table 4-5. Table 4-5.
  • Page 28 LANVIEW LEDs...

  • Page 29: Chapter 5 Specifications

    Specifications Safety It is the responsibility of the person who sells the system to which the module will be a part to ensure that the total system meets allowed limits of conducted and radiated emissions. CAUTION This equipment meets the following safety requirements: •...

  • Page 30: Physical

    Specifications Physical Dimensions All except 9E138-36: 35.0 D x 44.0 H x 3.0 W centimeters (13.8 D x 17.4 H x 1.2 W inches) 9E138-36: 35.0 D x 44.0 H x 6.0 W centimeters (13.8D x 17.4H x 2.4W inches) Weight All except 9E138-36: Unit:...

  • Page 31: Appendix A Epims

    The slide switch on the EPIM-T determines the crossover status of the cable pairs. If the switch is on the X side, the pairs are internally crossed over. If the switch is on the = side, the pairs are not internally crossed over. Figure A-1 shows the pinouts for the EPIM-T in both crossover positions.

  • Page 32: Epim-F1 And Epim-F2

    EPIM-F1 and EPIM-F2 The EPIM-F1 and EPIM-F2 support Multimode Fiber Optic cabling. Each EPIM has an internal Cabletron Systems FOT-F™ Fiber Optic Transceiver. The EPIM-F1 is equipped with SMA Connectors and the EPIM-F2 is equipped with ST Connectors. Figure A-2 shows both EPIMs. Specifications for the EPIMs are listed in Table A-1.

  • Page 33: Epim-F3

    (i.e., -30.5 dBm peak = -33.5 dBm average). EPIM-F3 The EPIM-F3 supports Single Mode Fiber Optic cabling. It has an internal Cabletron Systems FOT-F™ Fiber Optic Transceiver and is equipped with ST Connectors. Figure A-3 shows the EPIM-F3. Specifications for the EPIM-F3 are listed in Table A-3.
  • Page 34 EPIMs Transmitter Power decreases as temperatures rise and increases as temperatures NOTE fall. Use the Output Power Coefficient to calculate increased or decreased power output for your operating environment. For example, the typical power output at 25°C is -16.4 dBm. For a 4°C temperature increase, multiply the typical coefficient (-0.15 dBm) by four and add the result to typical output power (4 x - 0.15 dBm + -16.4 = -17.0).

  • Page 35: Epim-C

    EPIM-C The EPIM-C supports thin-net coaxial cabling and is equipped with an internal Cabletron Systems TMS-3™ Transceiver. You can use the TERM switch on the front of the EPIM-C to set the internal 50-ohm terminator. This eliminates the need to connect the port to a tee-connector and terminator. Figure A-4 shows the setting for the terminator switch.
  • Page 36 EPIMs The AUI Cable must not exceed 50 meters in length. If 28 AWG thin office drop AUI cable is used, then the maximum cable length is limited to 15.24 meters. Table A-4 lists the DB-15 pinouts. Pin Number EPIM-A Figure A-5.
