SmartSwitch 9000
9E423-36
Local Management Appendix
9031943-03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9E423-36 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cabletron Systems 9E423-36

Summary of Contents for Cabletron Systems 9E423-36

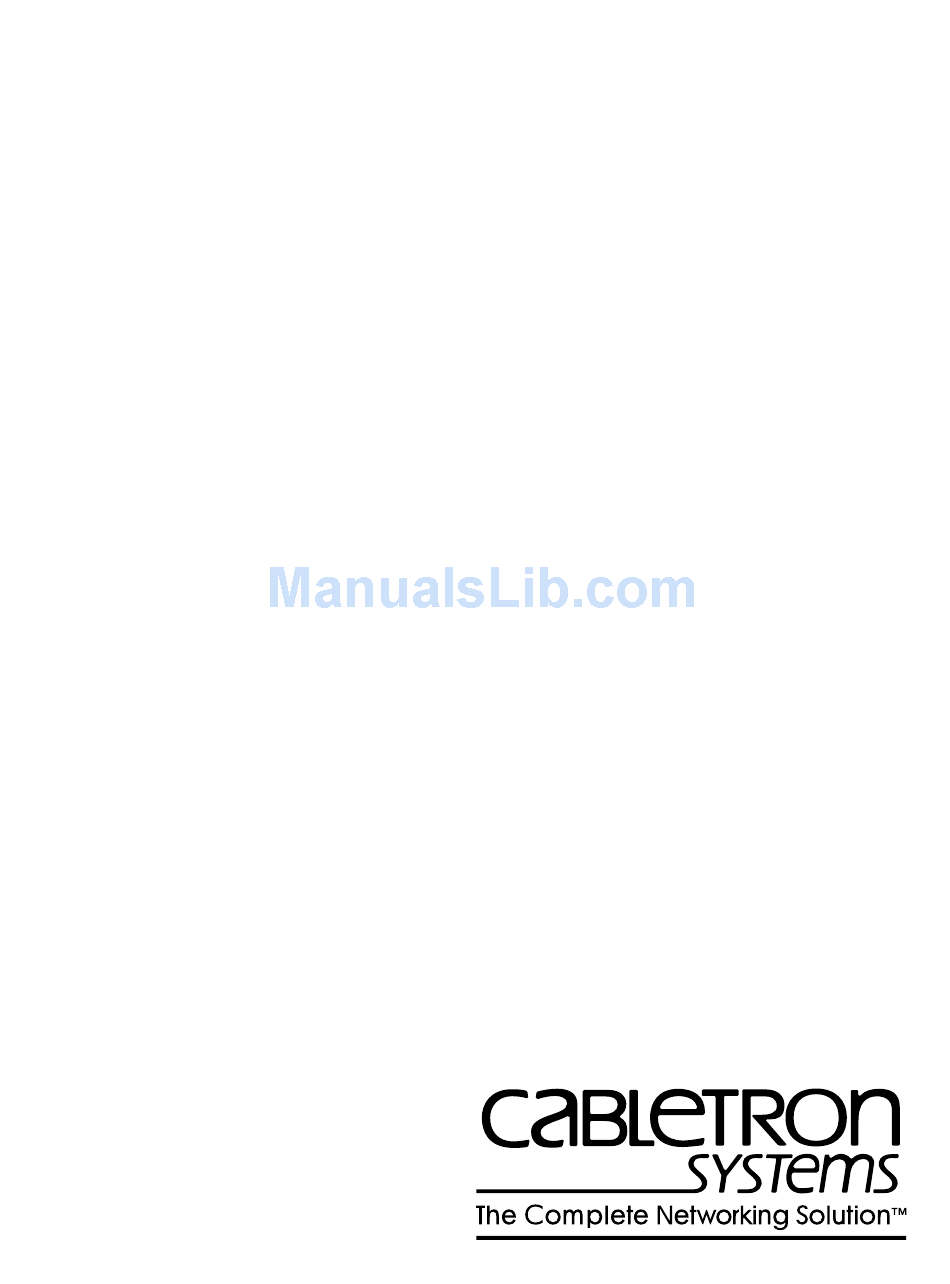

  • Page 1 SmartSwitch 9000 9E423-36 Local Management Appendix 9031943-03...

  • Page 3: Modifying Fields And User Privileges

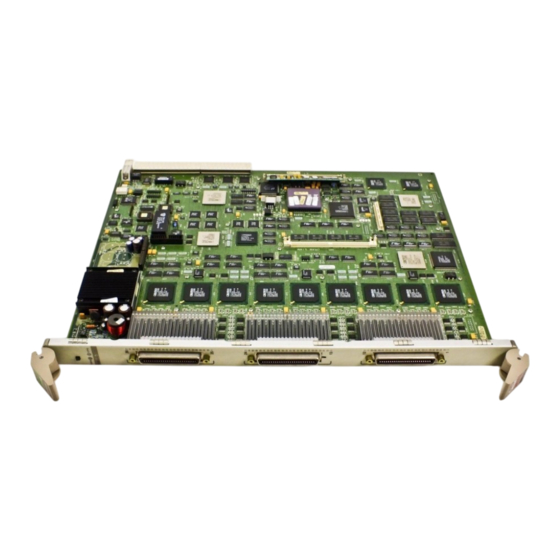

    • 36 front panel Ethernet ports • 1 Internal Network Bus (INB) backplane port Each front-panel port of the 9E423-36 can be configured to operate in the Full Duplex mode. This configuration allows each port to provide a full 20 Mbps of bandwidth.

  • Page 4: Module Interface Codes

    9E423-36 Module Specific Information Module Interface Codes The 9E423-36 Ethernet Switch Module has 41 interfaces. Table 1 lists the identifying number, name, and description of each interface. Interface Interface Number ENET10 ENET11 ENET12 ENET13 ENET14 ENET15 ENET16 ENET17 ENET18 Table 1. 9E423-36 Module Interface Codes...
  • Page 5 Table 1. 9E423-36 Module Interface Codes (Continued) Interface Interface Number Name ENET19 ENET20 ENET21 ENET22 ENET23 ENET24 ENET25 ENET26 ENET27 ENET28 ENET29 ENET30 ENET31 ENET32 ENET33 ENET34 ENET35 ENET36 Use the numbers listed in Table 1 to configure the module’s default interface (see the General Configuration Screen).

  • Page 6: Full Duplex Configuration Screen

    9E423-36 Module Specific Information Full Duplex Configuration Screen The Full Duplex Configuration Screen (Figure 1), displays the port number, operation mode, link status, and port status of the module’s 36 ports (12 ports at a time). Module Name: 9E423-36 Slot Number: 12...
  • Page 7 Indicates whether the port has been turned on or off administratively. You will see one of the following values: • ENABLED - The port is turned on administratively. • DISABLED - The port is turned off administratively. Enable or disable ports from the Bridge Configuration screen. NOTE 9E423-36 Module Specific Information...
  • Page 8 9E423-36 Module Specific Information Setting One Port to Full Duplex To set one Ethernet port to Full Duplex (for example, port 1): 1. Use the arrow keys to highlight STANDARD ENET in the Operation Mode field (to the right of port 1).

  • Page 9: Port Statistics Screen

    PORT #: 1 OCTETS: 747881 5079 LINK STATUS: PORT TYPE: PORT STATUS: APPLICATION: 4489 OPERATION MODE: EXIT Figure 2. Port Statistics Screen 9E423-36 Module Specific Information Firmware Revision: XX.XX.XX BOOTPROM Revision: XX.XX.XX No Link RJ21 ENABLED BRIDGING STANDARD ENET RETURN...

  • Page 10: Port Statistics Screen Fields

    9E423-36 Module Specific Information Port Statistics Screen Fields The following information briefly explains each Port Statistics Screen field. PORT # (Read-only) Indicates the current port for which statistics are displayed. OCTETS (Read-only) Displays the number of octets transmitted and received.
  • Page 11 • FULL DUPLEX - The port can transmit and receive data at the same time. Therefore, the port is running at 20 Mbps. PORT # (Selectable) Selects the port for which statistics are to be displayed. 9E423-36 Module Specific Information...
  • Page 12 9E423-36 Module Specific Information Displaying Statistics for Another Port To display statistics for another port: 1. Use the arrow keys to highlight the PORT # field at the bottom of the screen. 2. Press the Space Bar to increment (or press the Backspace key to decrement) the port number.

  • Page 13: Smarttrunk Configuration Screen

    Port Name ------ ------------- Ethernet Ethernet Ethernet Ethernet Ethernet Ethernet Ethernet Ethernet Ethernet Ethernet Ethernet Ethernet ENABLE 9E423-36 Module Specific Information SmartSwitch 9000 Local Management SmartTrunk Configuration Screen Connection SmartTrunk State ---------- ---------------- [USER] NONE [USER] NONE [USER] NONE [USER] NONE...
  • Page 14 field. Port # (Read-only) Identifies the number of the port. Port Name (Read-only) These are the names assigned by Cabletron Systems for all bridging interfaces. Connection (Toggle) Enables the connection type for the interface: • connections do not participate in SmartTrunking. All FNB, INB1, and...

  • Page 15: Displaying The Smarttrunk Ports

    1. Use the arrow keys to highlight the Connection field for the selected port(s). 2. Press the Space Bar to select USER or NETWORK. 3. Use the arrow keys to highlight the ENABLE command at the bottom of the screen. 4. Press ENTER. The message “SAVED OK” displays. 9E423-36 Module Specific Information...
  • Page 16 9E423-36 Module Specific Information...
