Saxby Lighting Ware Outdoor Wall Instruction Leaflet

Commissioning
• Secure the mains feed cable back under the cable
clamp (6) and secure the lamp holder plate (4) with
the 2 x screws removed in 3 above – being careful
not to trap or damage internal cables.
• Diagram C. Place the bracket over the pre-drilled
holes in the mounting surface, and secure using the
screws / wall plugs provided.
• Fit bulb as detailed below.
• Replace the glass cover (1)..
• Replace fuse or circuit breaker and switch on. Your
light is now ready for use.
Fitting/replacing bulbs
• When changing a bulb, always switch off at the
mains and allow the bulb to cool before handling.
• Always use the correct type and wattage bulb. Using
the incorrect wattage bulb will damage the bulb and
ballast.
• Used bulbs should not be disposed of with household
waste. Please recycle where facilities exist.
We recommend cleaning with a soft dry cloth.
Do not use solvents or abrasive cleaners as these could
damage the finish.
Recycling advice
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for recycling advice.
Safety information
For your safety, always switch off the supply before changing lightbulbs, or cleaning.
This light source is protected by a shade. This part must be replaced immediately should the shade
become cracked or damaged. This fitting must not be used without the shade in place.
www.saxbylighting.com
Diagram C. Shade shape may vary from that shown.
• Unscrew the bulb anticlockwise to remove.
• Insert the bulb gently into the fitting. Screw clockwise
into the lampholder.
40W E27 GLS
Shade – Remove and wash in warm water or just use a
damp cloth. Do not use abrasive materials as these will
damage the finish.
Iss.1 28052015
Saxby Lighting Ltd. BH23 3PE
Instruction leaflet

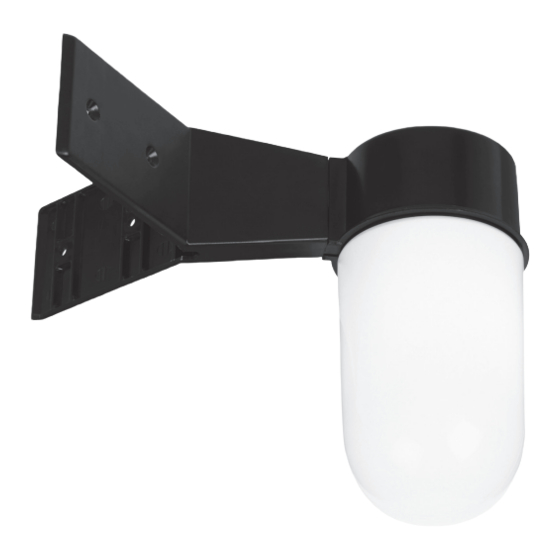

Ware Outdoor Wall
60966, 61096, 61241, 61242, 61243
