Commissioning

• Ensure that there are no bare or loose strands of
wire exposed, and cover all exposed areas of the
connection block with two layers of insulation tape.
• Refit the plastic shade, and secure using the side
screws (B).

Fitting/replacing bulbs

• When changing a bulb, always switch off at the
mains and allow the bulb to cool before handling.
Used bulbs should not be disposed of with household
waste. Please recycle where facilities exist.
• Always use the correct type and wattage bulb. Using
the incorrect wattage bulb will damage the bulb and
ballast.
We recommend cleaning with a soft dry cloth.
Do not use solvents or abrasive cleaners as these could
damage the finish.

Recycling advice

Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for recycling advice.

Safety information

For your safety, always switch off the supply before changing lightbulbs, or cleaning.
This bulb is protected by a plastic shade. This part must be replaced immediately should the plastic
shade become cracked or damaged. This fitting must not be used without the plastic shade in place.
Replace Cracked
Shade
www.saxbylighting.com
• Refit the cover, and secure using screw (A).
• Replace fuse or circuit breaker and switch on. Your
light is now ready for use.
18W G24d-2 2 PIN PLC
Glass parts – Remove and wash in warm water or just
use a damp cloth. Do not use abrasive materials as
these will damage the finish.
Iss.2 30052014
Saxby Lighting Ltd. BH23 3PE
Instruction leaflet

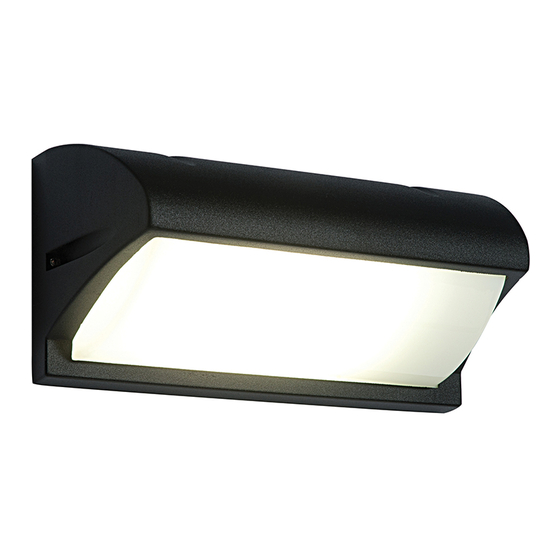

Lille Wall
43699 & 43753

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lille Wall and is the answer not in the manual?

Questions and answers

Summary of Contents for Saxby Lighting Lille Wall

  • Page 1 • Ensure that there are no bare or loose strands of • Refit the cover, and secure using screw (A). wire exposed, and cover all exposed areas of the • Replace fuse or circuit breaker and switch on. Your Lille Wall connection block with two layers of insulation tape. light is now ready for use. • Refit the plastic shade, and secure using the side screws (B).
  • Page 2 Installation Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and satisfactory operation of this product. Please retain these instructions for future reference. Existing fittings must be completely removed before • Ensure the wall is capable of holding the weight of the installation of a new product. Before removing the product. Take care to avoid damaging any concealed existing fitting, carefully note the position of each set wiring and pipes. The correct fixings should be used Warning of wires. for brick, cavity walls or plasterboard. • Pierce grommet and pass the supply cable through • Undo the bottom screw (A), lift off the top cover and This light fitting is Class 1 and must be connected to the incorrect wattage bulb will damage the bulb and the hole in the wall back. set aside. an Earth circuit ballast.
