AME 438 SU
❸

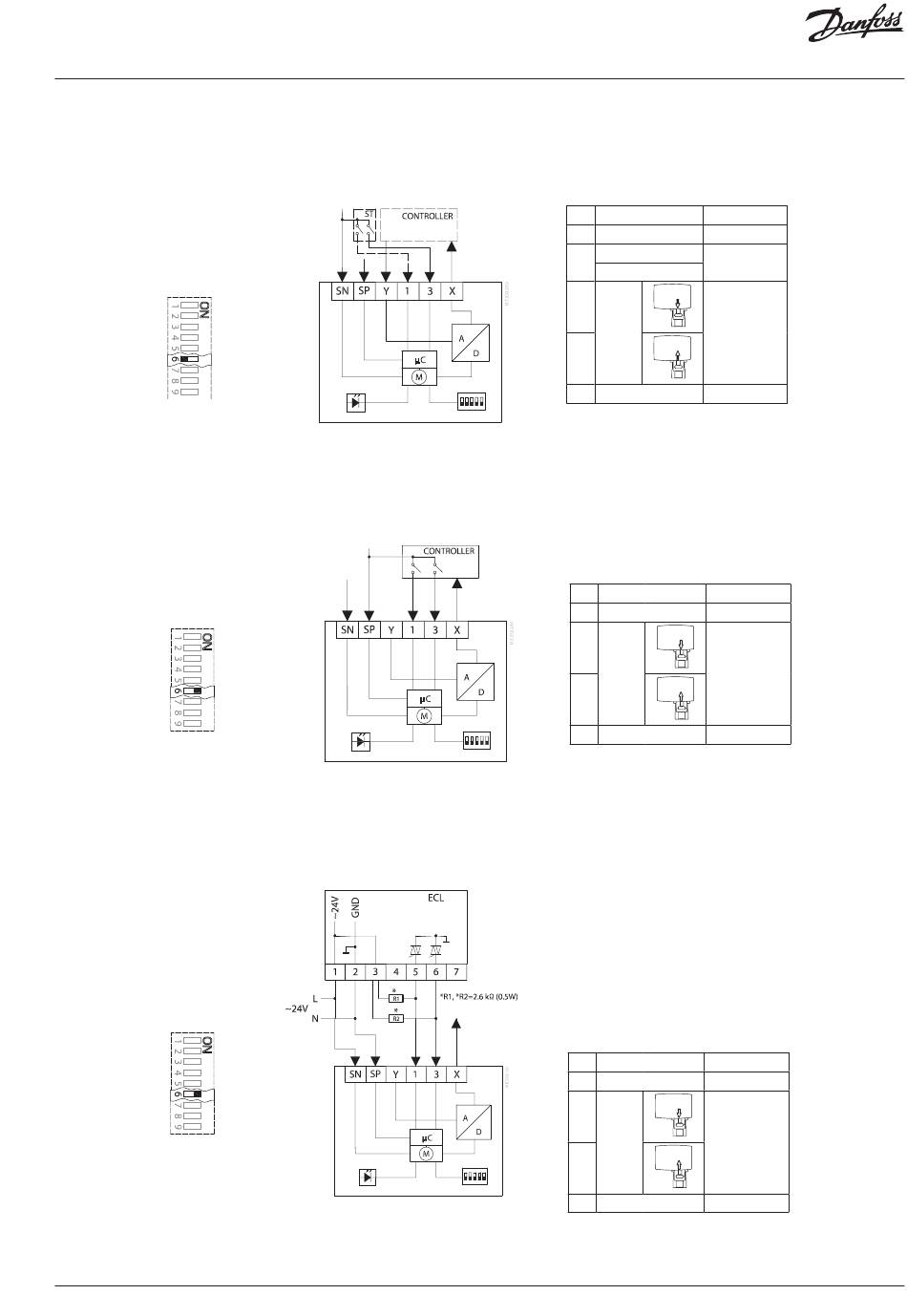

Wiring for modulating mode
Proportional 3 point/RL
Wiring for 3-point floating mode
Controller with relay output
Proportional 3 point/RL
Wiring for 3-point floating mode
Controller with triacs output
Proportional 3 point/RL
VI.LE.F3.3O
SN
0 V Neutral
SP 24 VAC Power supply
0(2)-10 V
Y Input
0(4)-20 mA
1
0 V Input
3
X 0(2)-10 V Output
SN 0 V Neutral
SP 24 VAC Power supply
1
24 VAC Input
3
X 0(2)-10 VDC Output
SN
24 VAC Neutral
SP
0 V Power supply
1
24 VAC Input
3
X 0(2)-10 VDC Output
