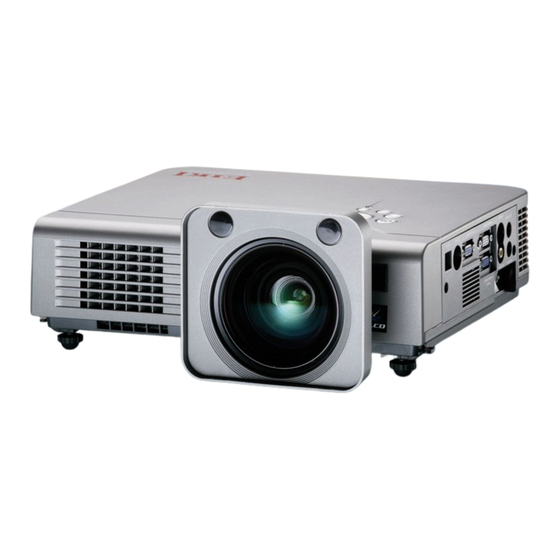

MULTIMEDIA PROJECTOR
LC-XIP2000
OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Eiki LC-XIP2000

Summary of Contents for Eiki LC-XIP2000

  • Page 1 MULTIMEDIA PROJECTOR LC-XIP2000 OWNER’S MANUAL...

  • Page 2: About Owner's Manual

    About owner’s manual Please read owner’s manual thoroughly to ensure correct usage of the projector and its features. After reading, store owner’s manual in a safe place for future reference. Features 1. Design with 3LCD optical system . 2. Auto V keystone function, +/- 30 degrees.

  • Page 3: Table Of Contents

    ............Setting up the projector ...
  • Page 4 ........... . . Turning on the projector ...

  • Page 5: Safety Instructions

    Safety Instructions WARNING C A U T I O N Typical Symbols This symbol indicates an additional warning (including cautions). A n i l l u s t r a t i o n i s p r o v i d e d t o c l a r i f y t h e c o n t e n t s ( f o r e x a m p l e : the illustration to the left indicates danger of electrical shock).
  • Page 6 Never attempt to make repairs yourself because this is dangerous. Do not use this projector if there is no image or sound, or if the sound is distorted. Continued use could result in fire or electrical shock. In such case, immediately turn off the power switch;...
  • Page 7 Allowing the proper amount of space on the top, sides, and rear of the projector cabinet is critical for proper air circulation and cooling of the unit. The dimension shown here indicate the minimum space required. If the projector is to be built into a compartment or similarly enclosed, these minimum distances must be maintained.
  • Page 8 Blocking ventilation could lead to internal overheating which could result in fire. Do not place this projector on its side during use or push it into a small, poorly ventilated location. Do not place this projector on a carpet or bedding or cover it with a tablecloth, etc.
  • Page 9 NOTE: This symbol and recycle system are applied only to EU countries in the other area of world. Your EIKI product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

  • Page 10: Product Safety Labels

    Location of product safety labels Safety labels are used on or within the projector to alert you to items or areas requiring your attention. EMI LABEL EIKI Model:LC-XIP2000 Input: 100-240V, 50/60Hz, 4A(1.2A~2.8A) Serial no.: LAMP WARNING LABEL LENS WARRANTY LABEL...

  • Page 11: Checking The Package Contents

    Checking the Package Contents Projector Power Cord Computer cable USB Cable(1.5M) Filter Remote Control with batteries S-Video Cable Speaker Cable Batteries Video Cable Audio Cable Accessory Bag Pointer Hanging String...
  • Page 12 Checking the Package Contents Quick Start Guide / Owner’s Manual CD Extension USB Cable(5M,Optional) Carry Bag (Optional) Adapter (Optional) RS232 Cable (Optional)

  • Page 13: Main Unit

    Part Names and Function: Main Unit IR sensor Zoom ring Focus ring 1 Zoom Ring U s e t h e Z o o m R i n g t o a d j u s t t h e s i z e o f t h e p r o j e c t e d i m a g e . R o t a t e t h e Z o o m R i n g u n t i l t h e i m a g e i s t h e d e s i r e d s i z e .

  • Page 14: Lens Cover

    Part Names and Function:(continued) Main Unit Control panel Lens cover 5 Front adjustable foot E x t e n d a n d r e t r a c t t o a d j u s t t h e p r o j e c t i o n a n g l e 6 Foot adjust button L o c k / u n l o c k t h e a d j u s t a b l e f o o t .

  • Page 15: Control Panel

    1 , System will auto detect YPbPr or RGB signal in computer in 2 port. 3. Blank Blanks the projected image. If the projector is left in blank mode for more than 15 minutes, the projector will automatically shut down.
  • Page 16 7. Keystone Adjusts the vertical keystone with menu-up, menu-down (See Page 53) 8.Power indicator Lights on or flashes to indicate the operating status of the projector (See Page 73) 9. Lamp indicator Indicate a problem in the internal projector temperature, lamp cover or cooling down.

  • Page 17: Rear View I/O Board

    Connect an external monitor to this connection view the Computer in 1 input. 4. Control (RS-232C) Serial data port for controlling the projector with a computer or other RS-232 control device. 5. S-Video connector S-Video signal from a video source.
  • Page 18 Part Names and Function:(continued) Rear View / IO Board 9. USB mouse connector 4. RS-232C 3. Monitor out 1. Computer in 1 2. Computer in 2 / YPbPr 7. Audio out Connecting to an external speaker system. 8. Audio in Stereo mini jack for PC input 9.

  • Page 19: Bottom View

    Part Names and Function:(continued) Bottom View 1. Suspension bracket fixing points (4 points) Install the optional ceiling mount here when suspending the projector from the ceiling. 2. Air filter cover Prevents dust and other foreign particles from being drawn into the projector.

  • Page 20: Remote Control

    Part Names and Function:(continued) Remote Control Power Power on / operation mode, Standby mode, Cooling-down mode Press”ESC”button,it will close”Menu”picture Vol +/- Sound louder or lower Menu Display or hide the OSD main menu page Keystone +/- Adjusts the vertical keystone function Still Keep the current image on the Screen Blank...

  • Page 21: Inserting The Batteries

    5. Replace the batteries when remote control operation becomes sluggish or unresponsive. 6. Do not place the remote control close to the cooling fan of the projector. 7. Do not disassemble the remote control. If the remote control needs service. Please bring it to the service station.

  • Page 22: Installation

    Setting Up the Projector The projector supports the following four different projection methods Front projection 150” Rear 150” A special method of installation is required in order to suspend the projector from the ceiling. Please ask your dealer for details.
  • Page 23 Installation(contiuned) Setting Up the Projector Rear ceiling projection Front ceiling projection 150” A special method of installation is required in order to suspend the projector from the ceiling. Please ask your dealer for details. 150”...

  • Page 24: Screen Size And Projection Distance

    Installation(contiuned) Size and Projection Distance The distance between the projector and screen determines the actual image size. Refer to the table below to determine the image size at a given distance. The values shown below are approximate and may vary from actual sizes.

  • Page 25: Adjusting The Image Position

    Installation(contiuned) Adjusting the Image Position Use the adjustable foot at the front of the projector to set the image height. Rotate the adjustable foot at the rear of the projector to fine- tune the image position. When the foot is adjusted, it may cause the shape of the projected image to become distorted.

  • Page 26: Moving The Projector

    ( O p t i o n a l , p l e a s e c o n t a c t y o u r d e a l e r f o r m o r e i n f o r m a t i o n ) C A U T I O N The optional carry bag is intended to protect the projector from dust and scratches on the surface of the cabinet. It is not designed to protect the projector from external shock.

  • Page 27: Software And Hardware Install - System Requirements

    Installation(contiuned) Software and Hardware install 1.Section one : System Requirements OS Required Processor Type Min. Free disk space CD-ROM Driver & available USB 2.0 port 2.Section two : Software and Hardware driver installation Step 1: Insert the Disc to the PC. Step 2: Execute setup.exe Step 3: Next System Requirements...
  • Page 28 Installation(contiuned) Software and Hardware install 2.Section two : Software and Hardware driver installation Step 4: Install...
  • Page 29 Installation(contiuned) Software and Hardware install 2.Section two : Software and Hardware driver installation Step 5: Finish (“LightPen” software installation)
  • Page 30 Installation(contiuned) Software and Hardware install 2.Section two : Software and Hardware driver installation Step 6: Next (Continue to install driver for CMOS hardware)
  • Page 31 Installation(contiuned) Software and Hardware install 2.Section two : Software and Hardware driver installation Step 7: Install...
  • Page 32 Installation(contiuned) Software and Hardware install 2.Section two : Software and Hardware driver installation Step 8: Continue Anyway NOTE: We confirmed that installation of this software will not impair or destabilize the correct operation of your system.
  • Page 33 Installation(contiuned) Software and Hardware install 2.Section two : Software and Hardware driver installation Step 9: Finish...
  • Page 34 Turn on the AC power switch of the projector.The power indicator lights green and slowflashing. Projector works in standby mode. Press the power button to turn on the projector. The power LED begins to green and lamp LED begins to red, and the projector will be lamped on. POWER...
  • Page 35 Installation(contiuned) Software and Hardware install 2.Section two : Software and Hardware driver installation Step 10-B: Turning on the projector WARNING When using a laptop or a PC with an in built monitor, select external video output on the computer. If no image are projected, change the input signal.
  • Page 36 Installation(contiuned) Software and Hardware install 2.Section two : Software and Hardware driver installation Step 11: Connecting PC to the projector To connect Computer cable (RGB) first then USB cable. Mouse port USB cable USB port Computer in 1 or Computer in 2...
  • Page 37 Installation(contiuned) Software and Hardware install 2.Section two : Software and Hardware driver installation Step12：Select “No, not this time” than “Next”...
  • Page 38 Installation(contiuned) Software and Hardware install 2.Section two : Software and Hardware driver installation Step13: Next...
  • Page 39 Installation(contiuned) Software and Hardware install 2.Section two : Software and Hardware driver installation Step14: Continue Anyway NOTE: We confirmed that installation of this software will not impair or destabilize the correct operation of your system. Step15: Finish “LightPen” shortcut will be added on the window desktop automatically.

  • Page 40: Software And Hardware Driver - Function Key Of "Pointer

    Installation(contiuned) 3.Section three: Functional key of “Pointer” LED lamp Button：Mouse left key...

  • Page 41: Software And Hardware Driver - Calibration

    Installation(contiuned) 4.Section four: Calibration Step 1: Execute “LightPen” shortcut desktop. Step 2: Select “LightPen” from toolbar then click mouse right key for Calibration. on the Windows...
  • Page 42 Installation(contiuned) 4.Section four: Calibration Step 3: Push the button of “Pointer” and point to the “center of green cross target” from upper-left of screen to lower-right of screen orderly. There are nine targets totally. No more green target on the screen means you’ve completed the calibration procedure.
  • Page 43 Installation(contiuned) 4.Section four: Calibration How to play function of “Mouse right key”? Point to top or down of screen outside than push the button of “Pointer”.
  • Page 44 Installation(contiuned) 4.Section four: Calibration There is another quick way to change the position of icon or hide it. Point to left or right of screen outside then push the button of “Pointer”.

  • Page 45: Software And Hardware Driver - Function Of Icon

    Installation(contiuned) 5.Section five: Function of icon Icon position P u s h t h e b u t t o n o f “ P o i n t e r ” t o s e l e c t i c o n ’ s position on either the right-side or left-side of screen.

  • Page 46: How To Connect

    How to Connect Desktop PC Before starting, make sure that the projector and computers are both turned off. 1. Connect the computer cable. Connect either end of the computer cable to the projector’s Computer in 1 or Computer in 2...

  • Page 47: Laptop Pc

    How to Connect Laptop PC Before beginning, make sure that the projector and computers are both turned off. 1. Connect the computer cable. Connect either end of the computer cable to the projector’s Computer in 1. Connect the other end of the project cable to the monitor out connection on the laptop.

  • Page 48: Video

    Video 1. Connect to a video source The Projector can receive composite AV ,YPbPr and S-Video. Connect RCA plug at projector and video source ( like DVD player) for video signal. Please contact with your dealer for optional cable. Connect RCA plug ( white and red) to audio source ( like DVD player) and connect the phone jack to projector for audio signal.
  • Page 49 How to Connect Video Connect YPbPr plug at projector computer in 2 port and video source ( like DVD player) for video signal. For S-Video, using S-Video cable connect to projector and video source for video signal.

  • Page 50: Basic Operation

    Basic Operation Turning on the projector - Procedure Check the power is turned off for the projector and all components connected to the projector. Remove the lens cover. Connect the power cord to the projector. Turn on the power switch.
  • Page 51 Basic Operation Turning on the Projector - Procedure The power indicator will flash green. Press the Input button on the control panel or on the remote control to select the appropriate source. Rotate the zoom ring to adjust the screen size.
  • Page 52 The projector is now in standby mode and can be turned back on with the remote control or control panel. If the projector will not be used for an extended period, set the power switch to off and disconnect the power cord.

  • Page 53: Adjusting The Screen Image

    Basic Operation Adjust the Screen Image 1. Adjusting the image size Rotate the Zoom Ring to adjust the image. 2. Adjusting the image height Extend or retract the front adjustable foot to adjust the height of the image. 3. Correcting Keystone Distortion ◆...

  • Page 54: Function Of Menu (Osd)

    Turn on and turn off the projector 2. Blank : Blanks the projected image. If the projector is left in Blank m o d e f o r m o r e t h a n 1 5 m i n u t e s , t h e p r o j e c t o r w i l l automatically shut off the lamp and enter cool-down mode.

  • Page 55: Computer Mode

    Functions of Menu (OSD) Computer Mode-Picture Menu Brightness Contrast Sharpness Display mode Presentation Green board 1. PICTURE 000/100 Adjusts the overall image brightness 000/100 Adjusts the difference between light and dark areas of the image 000/002 Adjusts the image sharpness Select Video Keep the soft tender color...
  • Page 56 Functions of Menu (OSD) Computer Mode-Audio Menu Volume 000/040 Mute Off/on 2. AUDIO Adjusts the volume Mutes the volume on/off...
  • Page 57 Functions of Menu (OSD) Computer Mode-SETTING Menu H position 000/100 V position 000/100 Phase 000/100 Frequency 000/100 Auto keystone off/on Keystone V -80/+80 Auto sync execute Auto search off/on 3.SETTING Move the image position horizontally Move the image position vertically Set the synchronization polarity Set the horizontal scanning frequency Automatically Corrects keystone...
  • Page 58 Functions of Menu (OSD) Computer Mode-ADVANCED Menu...
  • Page 59 Normal/True Blank on If the projector is left in Blank mode for more than 15 minutes, the projector will automatically shut off the lamp and enter cool-down mode. Reset all 1. After you select [reset all] on the OSD menu, the following confirmation message will appear on the screen.
  • Page 60 Reset lamp execute timer (optional) 5.PRESENTATION Automatically inverts the image when the projector is turned upside down i.e. when the projector is mounted on the ceiling Normal projection mode Inverts the image vertically, used when the projector is mounted upside down...
  • Page 61 Functions of Menu (OSD) Reset Lamp Timer 1. After you select 〔 Reset Lamp Timer 〕 on the OSD menu, the following confirmation message will appear on the screen. 2.You choose 〔 Yes 〕 ,the Lamp Mode show 〔 0 〕 . * The replacement warning message is set to appear after about 2000 hours of lamp use in order to maintain the brightness and quality of the projected images.

  • Page 62: Video Mode

    Functions of Menu (OSD) Video Mode-Picture Menu Brightness 000/100 Contrast 000/100 Sharpness 000/002 Display mode Video Presentation Natural Green board User Red User Green User Blue 1. PICTURE Adjusts the overall image brightness Adjusts the difference between light and dark areas of the image Adjusts the image sharpness Select Keep the soft tender color...
  • Page 63 Functions of Menu (OSD) Video Mode-Audio Menu Volume 000/040 Mute 2. AUDIO Adjusts the volume Off/on Mutes the volume on/off...
  • Page 64 Functions of Menu (OSD) Video Mode-Setting Menu Auto keystone off/on Keystone V -80/+80 Auto search off/on 3.SETTING Automatically Corrects keystone distortion in image i.e. press once to do once Corrects vertical keystone distortion in image Search signal source automatically.
  • Page 65 Functions of Menu (OSD) Video Mode-Advanced Menu...
  • Page 66 Normal/True blank on If the projector is left in Blank mode for more than 15 minutes, the projector will automatically shut off the lamp and enter cool-down mode. Reset all 1. After you select [reset all] on the OSD menu, the following confirmation message will appear on the screen.
  • Page 67 Reset lamp execute timer (optional) 5.PRESENTATION Automatically inverts the image when the projector is turned upside down i.e. when the projector is mounted on the ceiling Normal projection mode Inverts the image vertically, used when the projector is mounted upside down...

  • Page 68: Appendix

    Appendix Technical Specifications Mechanical Information Projector Type Dimensions (W x H x D) (excluding adjustable feet) Net Weight Feet Adjustment Panel Resolution LCD Panel System Panel Resolution Number of Pixels Signal Compatibility Color System High Definition TV Signal Scanning Frequency...

  • Page 69: Maintenance And Troubleshooting

    Ceiling Mounted Installation Guide Attach the optional ceiling mount at four-suspension bracket fixing points when suspending the from a ceiling. A special method of installation is required in order to suspend the projector from the ceiling. Please ask your dealer for more details.
  • Page 70 Maintenance and Troubleshooting 1.Cleaning the projector Clean the projector cabinet by wiping it gently with a soft cloth.If necessary, the cabinet can be cleaned using a neutral detergent and a soft cloth ensure th case WARNING 2.Cleaning the lens Use a commercially available air blower, or use lens cleaning paper and lens cleaner approved for use on optical coatings.
  • Page 71 A: The possible reasons for this might be: (1).USB cable not well connected Please check and make sure the cable is well connected between PC and Projector. * Some Anti-virus program will disable the USB port. anti-virus program and start the “LightPen” program again.
  • Page 72 (1).The system not been well calibrated. Try to point to the “center” of green cross target when you running calibration. (2).The position of the projector, screen or projection size has been changed (3).The image resolution been changed Run the calibration procedure again will solve the problem.
  • Page 73 C A U T I O N WARNING Lamp door The lamp and inside of the projector become very hot while the projection lamp is lit. Allow the projector to cool for at least 15 minutes prior to opening the lamp door.
  • Page 74 Maintenance and Troubleshooting Indicators The Power and Lamp indicators show the status of the projector. Before requesting repair, check the projector status using the chart below. If the problem cannot be resolved contact your dealer. Power Lamp Conditions (Red) (Green)
  • Page 75 The power cord is disconnected. The input is not correctly connected. No video No signal input. No open lens cover. The projector is not correctly connected. No audio The volume is set to minimum. Mute is turned on. No remote No battery.

  • Page 76: List Of Support Display Modes

    List of Support Displays Modes List of Supported Monitor Displays Signal VESA SVGA SXGA SXGA SXGA Signal SDTV(480i) SDTV(480p) HDTV(720p) HDTV(1080i) Signal TV(NTSC) TV(PAL,SECAM) Computer mode Refresh Rate(Hz) 60/72/75/85 56/60/72/75/85 60/70/75/85 70/75 60/75 Component(YPbPr) Refresh Rate(Hz) Composite/S-video Refresh Rate(Hz) Resolution(dots) 640X480 640X480 800X600...
  • Page 77 Front of terminal Back of terminal Back of terminal Front of terminal Front of terminal...
  • Page 78 RS-232C input actual view the image in the OM is left-side right. D sub-9 pin female 2 RXD 3 TXD 5GND Mini-Din 8 pin plug...

  • Page 79: Configurations Of Terminal

    Configuration of Terminal Configurations of Terminal S-Video signa Signal name Y signal return(GND) C signal return(GND) Y signal Input C signal Input Analog RGB Signal name Input/output R signal Input G signal Input B signal Input R return(GND) G return(GND) B return(GND) Y,Pb,Pr Signal name...
  • Page 80 Tel : 86-21-5396-0088 Fax : 86-21-5396-0318 E-Mail : info@eikichina.com.cn WorldWide Website http://www.eiki.com Canada EIKI CANADA - Eiki International, Inc. P.O. Box 156, 310 First St. - Unit 2, Midland, ON, L4R 4K8, Canada Tel : 800-563-3454 (705)-527-4084 Fax : 800-567-4069 (705)-527-4087 E-Mail : canada@eiki.com...
