Schematic, PCB Layout, and Bill of Materials
6.2
PCB Layer Plots
Figure 5
through
Figure 8
12
INA901EVM-CVAL Evaluation Module User's Guide
illustrate the INA901EVM-CVAL PCB layouts.

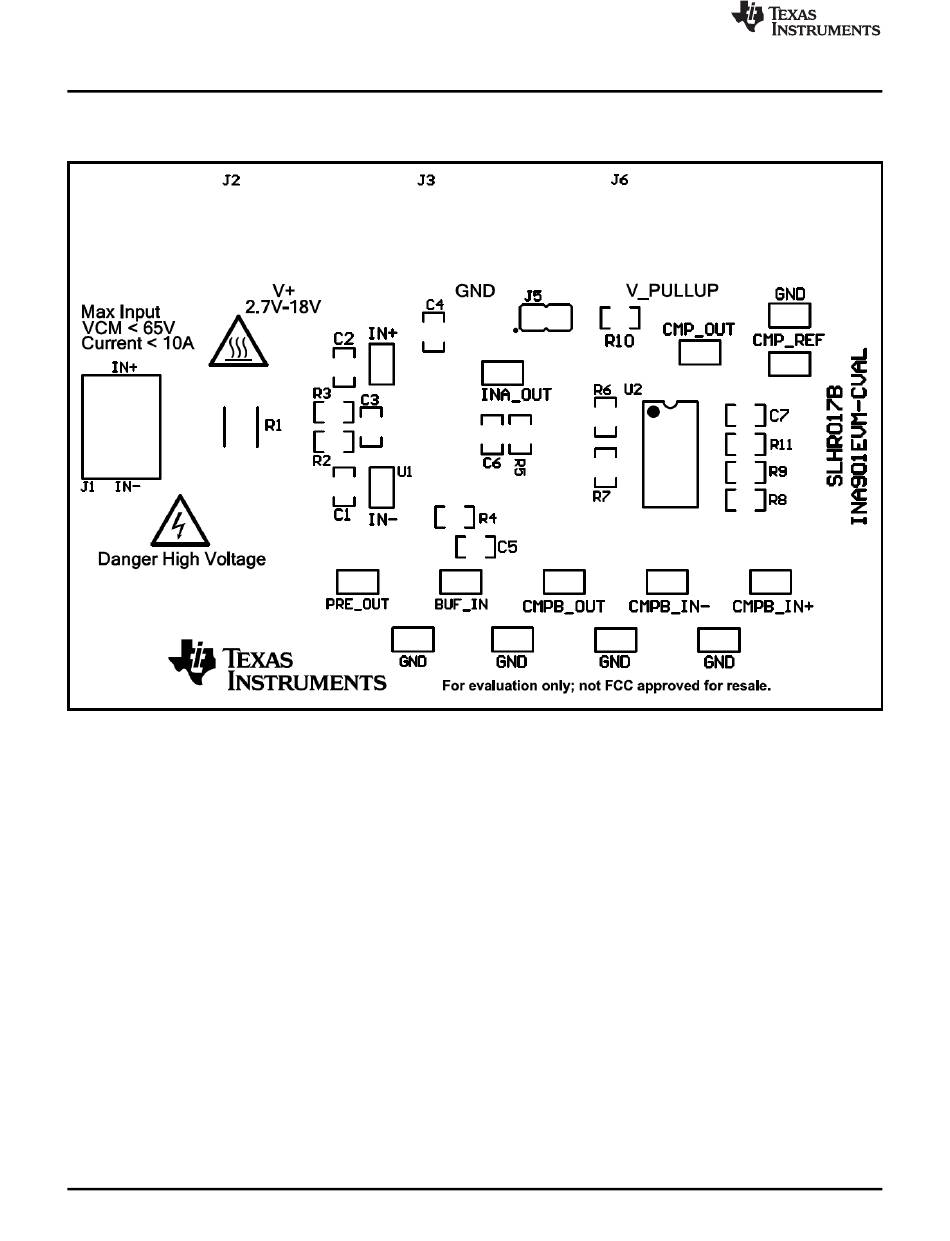

Figure 5. INA901EVM-CVAL Top Overlay
Copyright © 2018–2020, Texas Instruments Incorporated
SBOU216A – October 2018 – Revised June 2020
Submit Documentation Feedback
www.ti.com
