This user's guide describes the characteristics, operation, and use of the INA190 evaluation module
(EVM). This EVM is designed to evaluate the performance of the
monitor in a variety of configurations. This document also includes a schematic, reference printed-circuit
board (PCB) layouts, and a complete bill of materials (BOM).
......................................................................................................................
1
2
3
4
5
6
7
8
Bill of Materials
SBOU201A - April 2018 - Revised September 2018
Submit Documentation Feedback
.....................................................................................................
.................................................................................................
....................................................................................
...................................................................................................
................................................................................
.............................................................................................................
Copyright © 2018, Texas Instruments Incorporated
SBOU201A - April 2018 - Revised September 2018
INA190EVM User's Guide
INA190
Contents
................................................................
User's Guide
voltage-output, current shunt
INA190EVM User's Guide
2
3
4
5
6
7
8
13
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments INA190EVM
Summary of Contents for Texas Instruments INA190EVM
-
Page 1: Table Of Contents
INA190EVM Circuit and Components ....................Reference Voltage Setup ..............Guarding Voltage - Using the "Guarded Inputs" Panel ................INA190EVM Schematic and PCB Layout ......................Bill of Materials SBOU201A – April 2018 – Revised September 2018 INA190EVM User's Guide Submit Documentation Feedback... - Page 2 Overview www.ti.com List of Figures ..............INA190EVM Schematic - Gain A1 and A3 Panels ..............INA190EVM Schematic - Gain A2 and A4 Panels ............. INA190EVM Schematic - Gain A5 and Guarding Panels ....................INA190EVM Top Overlay ..................... INA190EVM Bottom Overlay ....................
-
Page 3: Overview

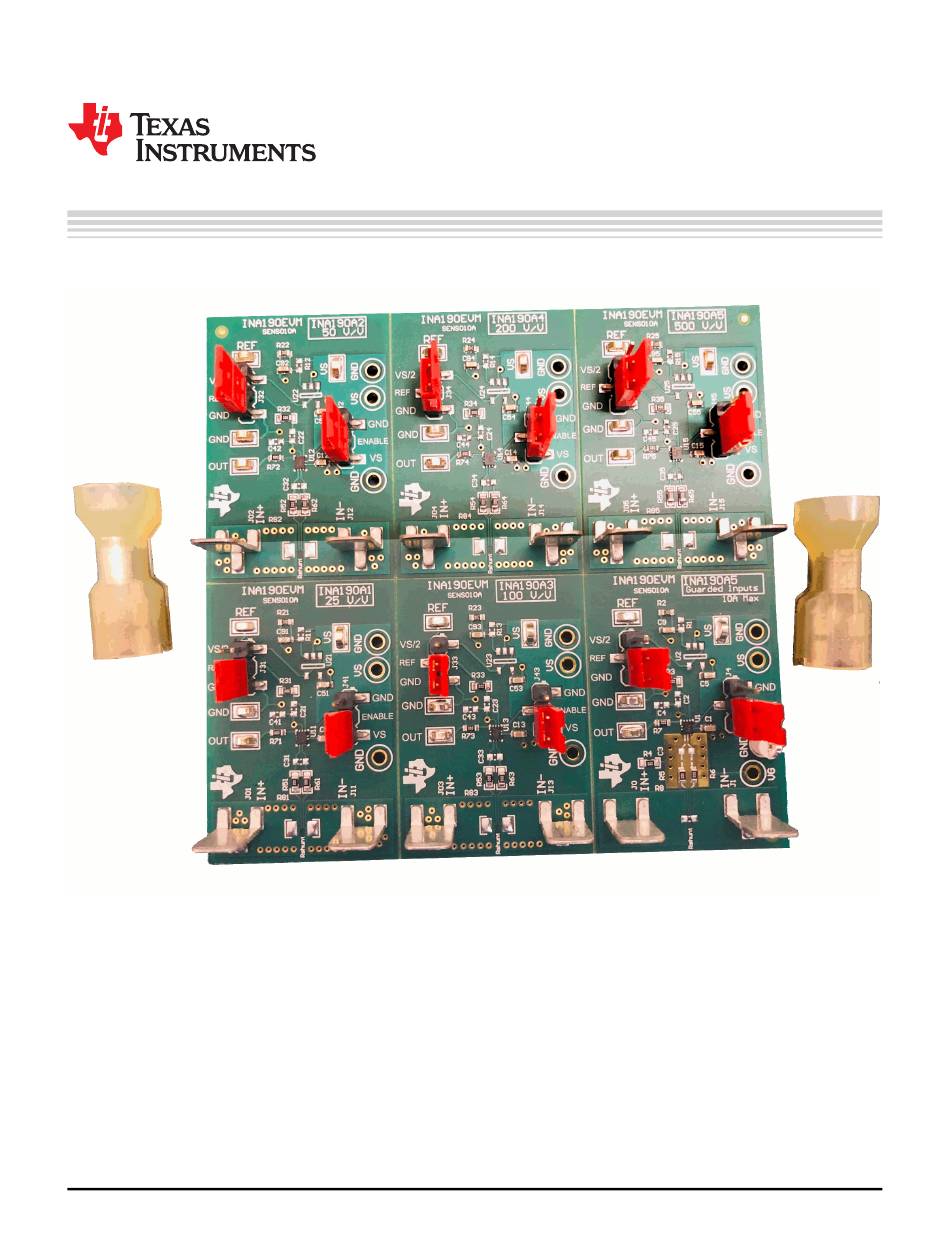

(EMC) testing. The INA190EVM consists of one PCB with an option to cut out six individual PCBs, one for each of the five gain variants (INA190A1, INA190A2, INA190A3, INA190A4, and INA190A5). Each of the PCB cutouts consists of one INA190AXIRSW device (where x is 1, 2, 3, 4, and 5) and test points for external hardware connections, as well as pads to solder down optional circuitry. -
Page 4: Quick Start Setup And Use
Quick Start Setup and Use Follow these procedures to set up and use one of the panels of the INA190EVM. For the following instructions, x = 1, 2, 3, 4, 5, or [blank]. Step 1. Choose the desired gain option panel. -
Page 5: Ina190Evm Circuit And Components
INA190EVM Circuit and Components www.ti.com INA190EVM Circuit and Components This section summarizes the INA190EVM components. For the following instructions, x = 1 to 5 or a [blank]. R5x, R6x, R7x, R3x,C2x, C3x, C4x, C9x R5x, R6x, R7x, and R3x are factory-installed 0-Ω resistors. C2x, C3x, C4x, and C9x are not populated except for C9x. -
Page 6: Reference Voltage Setup
Reference Voltage Setup The INA190 devices allow for the use of an external reference through the REF pin. The INA190EVM provides a test point to drive the REF pin externally or pads to solder a buffer amplifier to drive a custom voltage generated from the resistor divider off the VS power plane. -
Page 7: Guarding Voltage - Using The "Guarded Inputs" Panel
Guarding Voltage - Using the "Guarded Inputs" Panel One panel on the INA190EVM is labeled as "Guarded Inputs" because it includes extra circuitry to help guard the input traces going into the IN+ and IN– pins of the INA190. When measuring a small current, it is desirable to minimize the input bias currents of the device, which is in the nanoamps. -
Page 8: Ina190Evm Schematic And Pcb Layout
0.1 µF GND1 GND3 GND3 GND1 GND1 GND1 GND3 GND3 Figure 1. INA190EVM Schematic - Gain A1 and A3 Panels INA190EVM User's Guide SBOU201A – April 2018 – Revised September 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 9: Ina190Evm Schematic - Gain A2 And A4 Panels
10.0k 10.0k GND2 GND4 GND2 GND4 GND2 GND2 GND4 GND4 Figure 2. INA190EVM Schematic - Gain A2 and A4 Panels SBOU201A – April 2018 – Revised September 2018 INA190EVM User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 10: Ina190Evm Schematic - Gain A5 And Guarding Panels
10.0k 0.1 µF GND5 GND5 10.0k 0.1 µF GND5 GND5 Figure 3. INA190EVM Schematic - Gain A5 and Guarding Panels INA190EVM User's Guide SBOU201A – April 2018 – Revised September 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 11: Ina190Evm Bottom Overlay
PCB Layout Figure 4 through Figure 10 illustrate the PCB layout for the INA190EVM. Figure 4. INA190EVM Top Overlay Figure 5. INA190EVM Bottom Overlay Figure 6. INA190EVM Top Layer Figure 7. INA190EVM Bottom Layer SBOU201A – April 2018 – Revised September 2018... -
Page 12: Ina190Evm Bottom Solder
INA190EVM Schematic and PCB Layout www.ti.com Figure 8. INA190EVM Top Solder Figure 9. INA190EVM Bottom Solder Figure 10. INA190EVM Drill Drawing INA190EVM User's Guide SBOU201A – April 2018 – Revised September 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 13: Bill Of Materials
Bill of Materials www.ti.com Bill of Materials Table 4 provides the parts list for the INA190EVM. Table 4. Bill of Materials Designator Value Description Package Reference Part Number B1, B2, B3, B4, B11, B12, B13, Bumpon, Hemisphere, 0.25 X 0.075, Clear... - Page 14 TP83, TP84, TP85, TP7 U2, U21, U22, U23, U24, U25 1-MHz, Low-Power Operational Amplifier for Cost-Sensitive DBV0005A_N TLV6001IDBVR Texas Instruments Systems, DBV0005A (SOT-23-5) INA190EVM User's Guide SBOU201A – April 2018 – Revised September 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
- Page 15 Added at high common-mode voltages to description of small current measurement in R4 section ....• Changed INA190EVM Schematic - Gain A1 and A3 Panels figure through INA190EVM Drill Drawing figure • Added all resistor designators to first Panasonic manufacturer row in Bill of Materials table, deleted last two Panasonic ........................
- Page 16 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 17 FCC Interference Statement for Class B EVM devices NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 18 【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの 措置を取っていただく必要がありますのでご注意ください。 1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用 いただく。 2. 実験局の免許を取得後ご使用いただく。 3. 技術基準適合証明を取得後ご使用いただく。 なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。 上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ ンスツルメンツ株式会社 東京都新宿区西新宿６丁目２４番１号 西新宿三井ビル 3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http:/ /www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 3.4 European Union 3.4.1 For EVMs subject to EU Directive 2014/30/EU (Electromagnetic Compatibility Directive): This is a class A product intended for use in environments other than domestic environments that are connected to a low-voltage power-supply network that supplies buildings used for domestic purposes.
- Page 19 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2018, Texas Instruments Incorporated...
- Page 20 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2018, Texas Instruments Incorporated...
