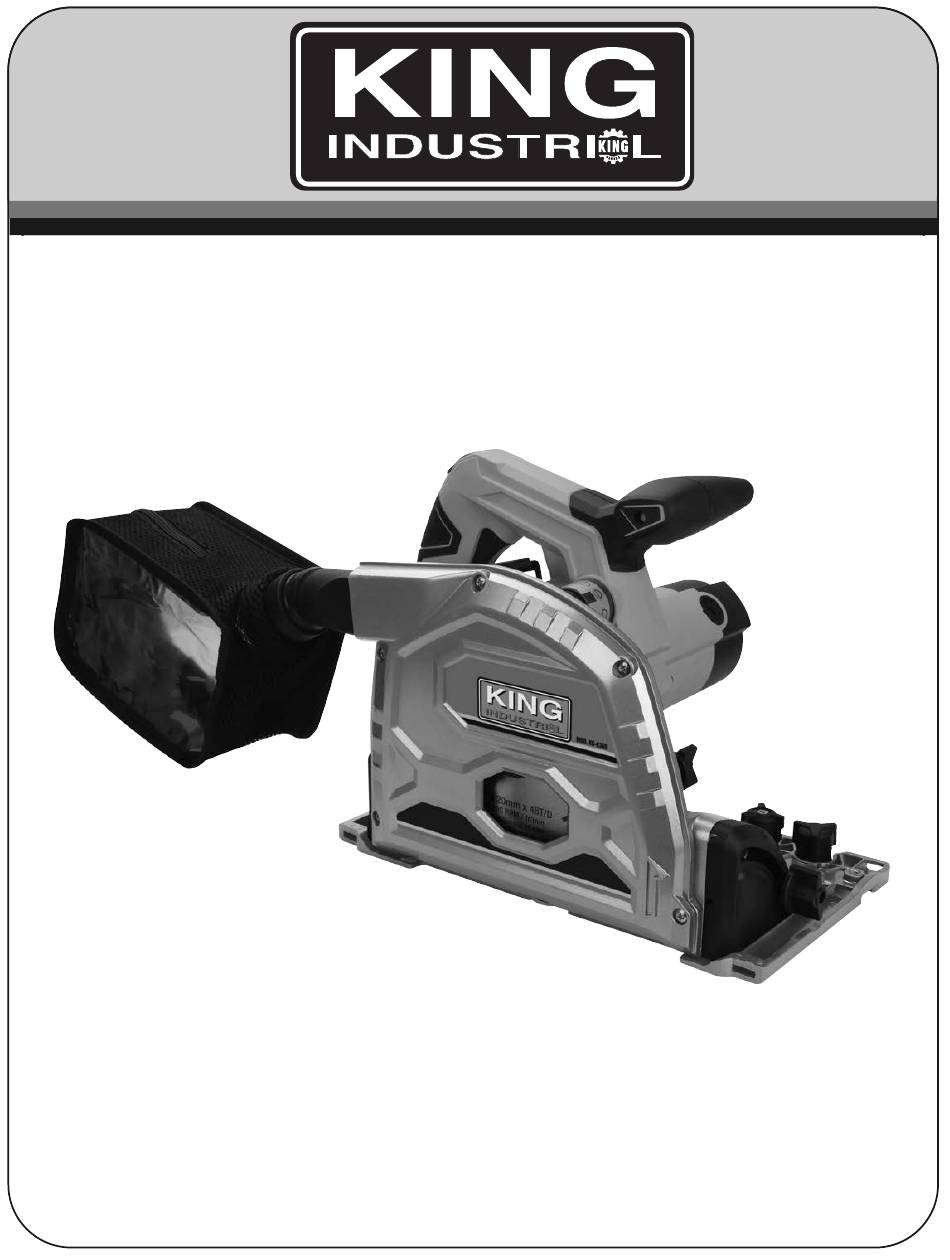

- Page 1 6-1/2” VARIABLE SPEED PLUNGE CUT TRACK SAW MODEL: KC-8365 INSTRUCTION MANUAL COPYRIGHT © 2021 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
WARRANTY INFORMATION 2-YEAR KING CANADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR THIS 6-1/2” PLUNGE CUT TRACK SAW INTENDED FOR NON COMMERCIAL USE PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centres across Canada. -
Page 3: General Safety Rules
GENERAL SAFETY RULES WORK AREA SAFETY POWER TOOL USE AND CARE 1. Keep work area clean and well lit. Cluttered or dark areas invite 1. Do not force the power tool. Use the correct power tool for your accidents. application. The correct power tool will do the job better and safer at 2. -
Page 4: Specific Safety Instructions
SPECIFIC SAFETY INSTRUCTIONS FOR PLUNGE CUT TRACK SAWS SPECIFIC SAFETY INSTRUCTIONS 3. A kickback can occur when the saw blade becomes twisted or misaligned in the saw groove. As a result, the teeth at the back edge 1. Make sure the voltage matches the specifications on the of the saw blade can get stuck in the surface of the workpiece, specifications nameplate of the tool. -
Page 5: Electrical Information
ELECTRICAL INFORMATION WARNING! ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE MACHINE DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ELECTRICAL INFORMATION POWER SUPPLY POLARIZED... - Page 6 19) 6-1/2” Plunge saw blade (20mm x 2.2mm x 48T) 9) Base plate 20) Brush cap/carbon brush (1 of 2) 10) Front fine adjustment knob MODEL KC-8365 Blade diameter 6-1/2” Blade arbor / blade thickness 20mm / 2.2mm Cut capacity @ 90 (without track/with track) 2-5/16”...
-
Page 7: Assembly And Adjustments
ASSEMBLY & ADJUSTMENTS ASSEMBLY Dust bag- Dust management system This 6-1/2” Plunge Cut Track Saw comes with a convenient and efficient dust bag (A) Fig.3. To install the dust bag, position the dust bag adaptor (B) into the dust chute (C) of the Plunge Cut Track Saw. Then slide dust bag over the other end of the dust bag adaptor as shown. - Page 8 ADJUSTMENTS & OPERATION ADJUSTMENTS Angled cuts- Adjusting bevel angle This Plunge Cut Track Saw can be tilted for angular cuts from 0 to 48 1) Make sure the Plunge Cut Track Saw is disconnected from the power source. 2) Loosen the front bevel lock knob (A) Fig.6 and the rear bevel lock knob (B). Tilt the saw until the pointer (C) lines up with your desired cutting angle on the bevel scale (D).
- Page 9 ADJUSTMENTS & OPERATION ADJUSTMENTS & OPERATION Assembly & adjustment of Optional 50” track (Mod. KW-300) continued... 8) Whether you are using only one track or two tracks assembled together, the front edge of the track can be positioned along the cut line of your workpiece and clamped down.
- Page 10 ADJUSTMENTS & OPERATION ADJUSTMENTS & OPERATION Using the track lock knob This Plunge Cut Track Saw comes with a track lock knob (A) Fig.14 which locks the saw to the track, it doesn’t prevent the saw from sliding on the track, it simply prevents the saw from lifting off the track during operation.
- Page 11 OPERATION & OPTIONAL ACCESSORIES OPERATION- Operation guideline 1) Always hold the saw with both hands. 2) Position your workpiece with the nicest side facing down. 3) Clamp your workpiece before attempting to make a cut. If you are using the optional 50”...
- Page 12 MAINTENANCE & CHANGING BLADE MAINTENANCE Changing blade WARNING! NEVER USE A BLADE THAT IS LARGER THAN 6-1/2” IN DIAMETER. DO NOT USE A BLADE THAT IS THICKER THAN 2.2MM OR THE BLADE BOLT WILL NOT PROPERLY SECURE THE BLADE TO THE ARBOR. WARNING! DISCONNECT THE POWER CORD FROM THE POWER SOURCE BEFORE CHANGING A BLADE.
