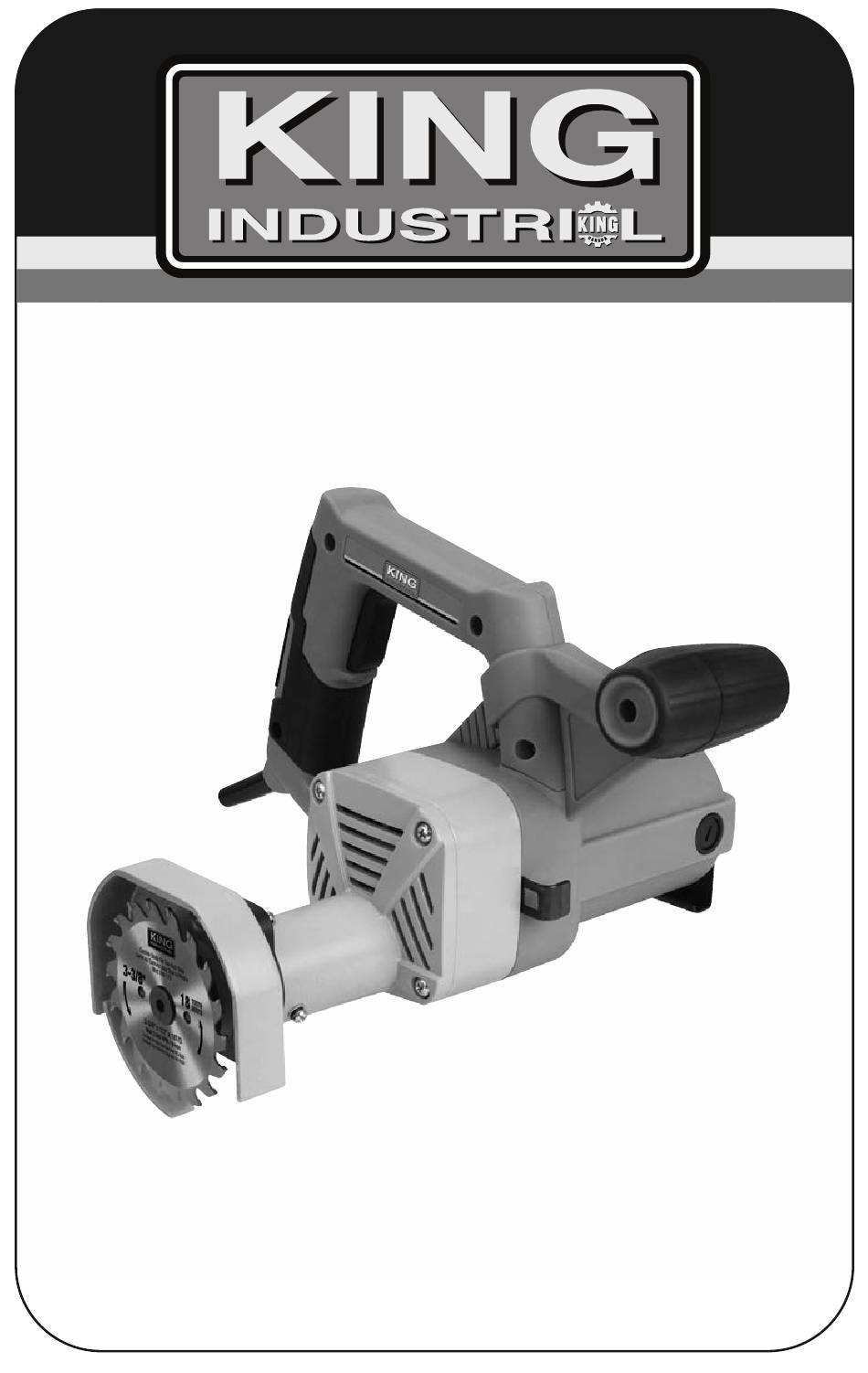

- Page 1 3-3/8” TOE-KICK SAW MODEL: KC-8359 INSTRUCTION MANUAL COPYRIGHT © 2020 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Proof Of Purchase
IMPORTANT INFORMATION 2-YEAR KING CANADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARANTY FOR NON COMMERCIAL USE. FOR THIS TOE-KICK SAW PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS GENERAL POWER TOOL SAFETY WARNINGS WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE. The term “power tool”... - Page 4 GENERAL SAFETY INSTRUCTIONS PERSONAL SAFETY continued... • Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
-
Page 5: Specific Safety Instructions
SPECIFIC SAFETY INSTRUCTIONS CIRCULAR SAW SAFETY WARNINGS 1. DANGER! Keep hands away from cutting area and the blade. If both hands are holding the saw, they cannot be cut by the blade. 2. Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece. - Page 6 SPECIFIC SAFETY INSTRUCTIONS CIRCULAR SAW SAFETY WARNINGS continued... 10. Check guard for proper closing before each use. Do not operate the saw if guard does not move freely and enclose the blade instantly. Never clamp or tie the guard with the blade exposed.
- Page 7 Every cord must meet the AWG rating. Use the chart shown in Fig.2 to determine what AWG rating is required for your situation. Cord length is rated in feet. SPECIFICATIONS MODEL KC-8359 Blade size/ Arbor size 3-3/8” / 1/2” Motor 1 HP, 6.8 A, 4,500 RPM...
- Page 8 GETTING TO KNOW YOUR TOE-KICK SAW Unpacking Your Toe-Kick Saw has been shipped completely assembled. Inspect it carefully to make sure no breakage or damage has occurred during transport. If any parts are missing, do not attempt to use the tool until you have obtained the missing parts from your King Cana- da retailer.
-
Page 9: Changing The Blade
ADJUSTMENTS & OPERATION CHANGING THE BLADE 1. Make sure the Toe-Kick Saw is unplugged from the power source. 2. Press the spindle lock button (A) Fig.3, turn blade until the spindle locks, to prevent the blade from turning. 3. Using the supplied 5mm hex. key, loosen and remove the countersunk hd allen screw (A) Fig.4, remove the blade (B), then remove the rear blade flange (C). -
Page 10: Operation And Maintenance
OPERATION & MAINTENANCE SWITCH OPERATION To turn the Toe-Kick Saw on, first the safety lock button (A) Fig.6 must be depressed, then depress the trigger (B). Release the trigger to stop the tool. OPERATIONAL GUIDELINE 1. Make sure that all guards are in place and functioning correctly before operation.
