Page 1: Instruction Manual

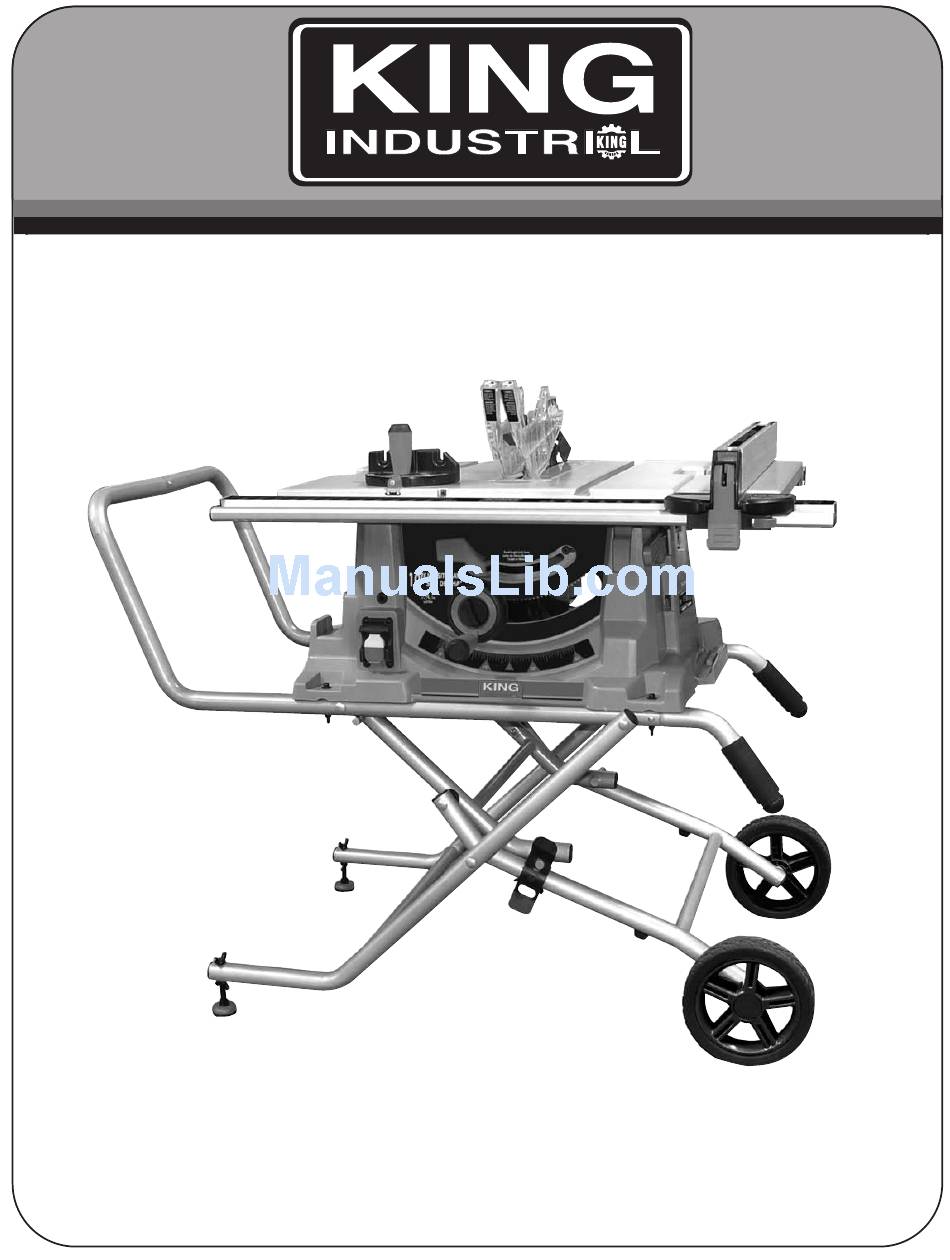

05/2013 10” JOBSITE SAW WITH FOLDING STAND MODEL: KC-5100C INSTRUCTION MANUAL COPYRIGHT © 2013 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC. -
Page 2: Warranty Information
WARRANTY INFORMATION 2-YEAR LIMITED WARRANTY FOR THIS 10” JOBSITE SAW PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. - Page 3 GENERAL & SPECIFIC SAFETY INSTRUCTIONS 1. KNOW YOUR TOOL 11. ALWAYS WEAR SAFETY GLASSES. Read and understand the owners manual and labels affixed to the Always wear safety glasses (ANSI Z87.1). Everyday eyeglasses only have impact resistant lenses, thet are NOT safety glasses. tool.
-
Page 4: Electrical Information
ELECTRICAL INFORMATION WARNING! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE SAW DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! GENERAL INFORMATION- 120V single phase operation POLARIZED OUTLET This jobsite saw comes with a 15 Amp. 120V single phase motor. CURRENT CARRYING PRONGS WARNING: YOUR JOBSITE SAW MUST BE CONNECTED TO A 110V-120V, 15 AMP. -
Page 5: Specifications
8. Rip fence lock lever 17. Bevel angle micro-adjust wheel and additional blades-not included) 9. Plastic push stick & storage 18. Switch with removeable key SPECIFICATIONS MODEL ....................................KC-5100C VOLTAGE ......................................120V AMPERAGE ......................................15A R.P.M ......................................4,400 Hz ........................................60 PHASE ........................................1 BLADE DIAMETER ....................................10”... - Page 6 ASSEMBLY & ADJUSTMENTS Assembly of folding stand Follow these instructions to assemble folding stand. 1. Insert both handles (A) Fig.4 into the large U-shaped bracket (B), make sure the screw hole in each handle matches with the screw hole on the U-shaped bracket. Align screw holes and secure handles using a small pan head screw.
- Page 7 ASSEMBLY & ADJUSTMENTS Accessory storage and folding/unfolding stand Note: Before folding stand, remove all workpieces from the table. Remove and securely store all loose accessories such as the miter gauge, rip fence, blade guard, anti-kickback fingers and push stick. Lower saw blade below the table top.
- Page 8 ASSEMBLY & ADJUSTMENTS Aligning riving knife IMPORTANT: If riving knife is correctly mounted yet it is not perfectly centered with the blade, proceed with the following adjustment. 1. Using a straight edge (Fig.10), check if the riving knife is aligned with the blade.
- Page 9 ASSEMBLY & ADJUSTMENTS Mounting rip fence on table & adjustments 1. Position the front of the rip fence (A) Fig.14 on the front rail (B). Lower the back end of the rip fence on the rear rail. Check to make sure the rip fence slides freely on the rails.
- Page 10 ADJUSTMENTS Adjusting the extendable extension table The extension table allows the user to increase the length of the table for greater ripping capacity (maximum 25” rip to the right of blade). To use the extension table; 1. Unlock or remove the rip fence from the table. 2.
- Page 11 ADJUSTMENTS Adjusting the bevel angle indicator If the blade is at a 90 angle and the bevel indicator (A) Fig.21 does not indicate 0 on the scale, an adjustment can be made; 1. Place a combination square (A) Fig.21 on the table and up against the flat portion of the blade (B).
- Page 12 ADJUSTMENTS & OPERATION Installing/changing blade Warning! Disconnect power cord from power source before installing/changing blade. 1. Uninstall the blade guard and anti-kickback fingers assembly from the riving knife. Then remove the table insert to gain access to the blade arbor. 2.
-
Page 13: Operation
OPERATION Operation Plain sawing includes ripping and crosscutting, plus a few other standard operations of a fundamental nature. The methods on this page feature safety. As with all power tools there is a certain amount of hazard involved with the operation and use of the tool. Using the tool with the respect and caution demanded as far as safety precautions are concerned will considerably lessen the possibility of personal injury. -
Page 14: Operation And Maintenance
OPERATION & MAINTENANCE Using a dado blade set (optional) and dado insert Dadoing is cutting a rabbet or a wide groove into the work. Most dado head sets are made up of two outside blades and four or five inside cutters, as shown in Fig. -
Page 15: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION SAW WILL NOT START 1. Saw not plugged in. 1. Plug in saw. 2. Fuse blown or circuit breaker tripped. 2. Replace fuse or reset circuit breaker. 3. Cord damaged. 3. Have cord replaced by a certified electrician. OVERLOAD KICKS OUT FREQUENTLY 1.
