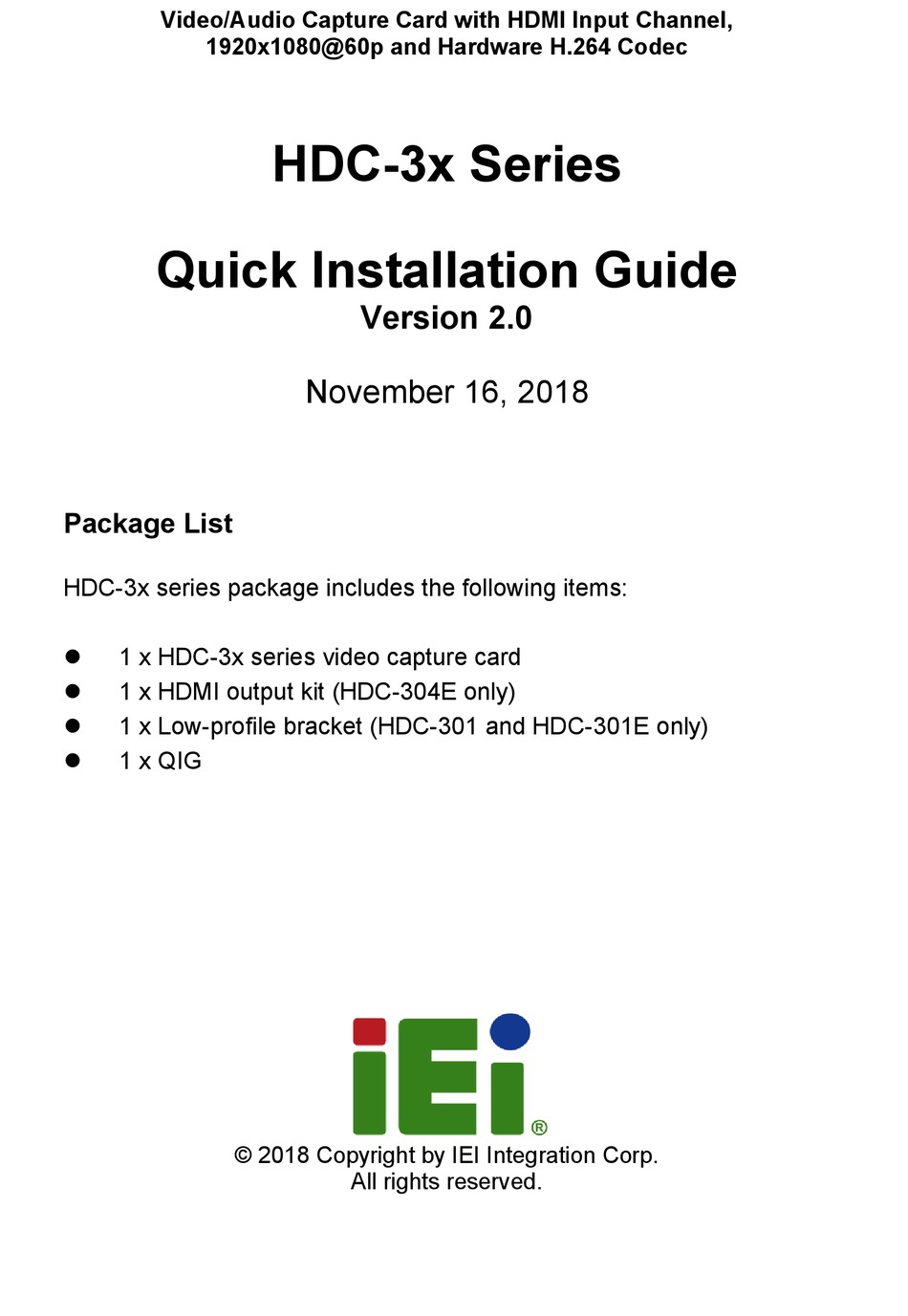

Video/Audio Capture Card with HDMI Input Channel,
1920x1080@60p and Hardware H.264 Codec
Quick Installation Guide
Package List
HDC-3x series package includes the following items:
1 x HDC-3x series video capture card
1 x HDMI output kit (HDC-304E only)
1 x Low-profile bracket (HDC-301 and HDC-301E only)
1 x QIG
HDC-3x Series
Version 2.0
November 16, 2018
© 2018 Copyright by IEI Integration Corp.
All rights reserved.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IEI Technology HDC-3 Series
Summary of Contents for IEI Technology HDC-3 Series
-
Page 1: Quick Installation Guide
Video/Audio Capture Card with HDMI Input Channel, 1920x1080@60p and Hardware H.264 Codec HDC-3x Series Quick Installation Guide Version 2.0 November 16, 2018 Package List HDC-3x series package includes the following items: 1 x HDC-3x series video capture card 1 x HDMI output kit (HDC-304E only) ... -
Page 2: Specifications
2. Specifications HDC-301 HDC-301E HDC-302E HDC-304E Four Video Input Channels HDMI HDMI HDMI HDMI Video Input Type Four Audio Input Channels HDMI HDMI HDMI HDMI Audio Input Type One via video Video Output Channel output kit PCIe x1 PCIe x1 PCIe x1 Interface VIDEO PROCESSING... - Page 3 3. Hardware Installation 3.1 Video Capture Card Installation The video capture card has either a PCIe x1 or a PCI interface. To install the , please follow the steps below: Step 1: Align the PCIe/PCI edge connector on the bottom of the video capture card with the PCIe x1 or PCI slot on the system motherboard.
- Page 4 3.2 Install the HDMI Output Kit (HDC-304E Model Only) The HDC-304E video card is shipped with an HDMI output kit in order to view the decode video or bypass video on the HDMI display. To install the HDMI output kit please follow the instructions below. Step 1: Locate the HDMI output connector on the HDC-304E video capture card.
-
Page 5: Hdmi Devices Installation
3.2.1 HDC-304E HDMI Output Kit Connector (JR1) The HDMI output kit connector connects to the HDMI output kit cable that provides an HDMI output port. Pinouts for the connector are shown below. Pin No. Description Pin No. Description HDMI_OUT_TX2+ GROUND GROUND HDMI_OUT_TXC- HDMI_OUT_TX2-... - Page 6 Step 3: This step is only required for the HDC-302E and HDC-304E.Repeat the steps above until all HDMI devices are connected. Step 4: Use another HDMI cable to connect the HDMI connector of the HDMI display device to the HDMI output connector on the board or on the HDMI output kit (HDC-304E).
- Page 7 4. Driver and Application Installation (Windows) 4.1 Driver Installation To install the driver, please follow the steps below: If the driver is already installed, please refer to Section 4.2 to uninstall the driver first. Step 1: Make sure to log in the system as the administrator. Step 2: Download the driver from IEI Resource Download Center.
- Page 8 Click the Finish button to finish driver installation. Step 8: Check the device manager in the Windows control panel to ensure the driver (MB86H55-REB PCI, HDC controller and WinDriver) has been properly installed. The installed driver is slightly different on different models.
- Page 9 other OS, such as Windows 7 32-bit. To install the driver in a 64-bit Windows 7 operating system, please do the followings: Step 1: When the system is booting, press F8 to enter the Advanced Boot Options menu. Choose Disable Driver Signature Enforcement and press Enter.
-
Page 10: Uninstall Driver
Step 7: Check the device manager in the Windows control panel to ensure the driver (MB86H55-REB PCI, DEVICE and WinDriver) has been properly installed. Step 0: 4.2 Uninstall Driver To uninstall the driver, please follow the steps below. Step 1: Make sure to login the system as the administrator. Step 2: Locate the “Driveruninstaller.bat”... - Page 11 Step 2: Locate the HDCapture_x86_Vxxxx.msi file in the driver CD. Double click the setup file to start the installation. The user can also download the latest setup file from IEI website. Step 3: The HDCapture Setup Wizard welcome window appears. Click Next to start.
- Page 12 Step 6: The system starts installing the HDCapture. Step 7: When the HDCapture is successfully installed, the following window appears. Click Close to exit. Step 0: NOTE: To be able to install the HDCapture Demo Program in a 64-bit Windows 7 operating system, please do the followings: - When the system is booting, press F8 to enter the Advanced Boot Options menu.
-
Page 13: Hdcapture Application
5. HDCapture Application NOTE: If there is a problem launching the HDCapture application in a 64-bit Windows 7 operating system, right-click the HDCapture application from the Window Start menu and select Run as administrator. 5.1 Video Capture To use the HDCapture to capture video, follow the steps below. If the older version of the HDCapture is already installed, please refer to Section 5.4 to uninstall it. - Page 14 HDC-302E HDC-304E...
- Page 15 Step 2: Enable and configure the device settings by clicking the Device # (0, 1, 2, 3) buttons. The device number is decided by which port the device is installed. If the HDC-301 series is installed, there will be only one Device 0 button to choose.
- Page 16 Step 4: Configure the encoding settings, including encoding file directory (click Ref button to choose the directory), rate control (CBR or VBR) and video encoding bitrate (must be in the range of video format). When “CBR” is selected, the “Bitrate” text box is displayed. When “VBR” is selected, the “Average bitrate”...
-
Page 17: Video Decoding
5.2 Video Decoding The HDCapture also includes decoding function that decodes the video signal for video output to the HDMI-enabled display device. To decode a captured video clip, follow the steps below. Step 1: Launch the HDCapture. Step 2: Bring up the Decoding page by clicking one of the Device # buttons. Click the Decoding tab to access the decoding page. - Page 18 Step 7: This step is only required for the HDC-304E. Select the transmitter bus from 4 to 7. For example, when the Device0 button is selected to decode the encoded file, please select 4 from the device4 (transmitter bus) drop-down menu to display the video on HDMI display device by output kit.
-
Page 19: Video Bypass
5.3 Video Bypass To view the video input source on HDMI display device in real time, please follow the steps below. Step 1: Launch the HDCapture. Step 2: Connect the HDMI cable from HDMI display device to the HDMI output port or the HDMI output kit (HDC-304E). -
Page 20: Uninstall Hdcapture
5.4 Uninstall HDCapture To uninstall the HDCapture, follow the steps below. Step 1: Select Control Panel Programs Programs and Features. Step 2: Select HDCapture and click the Uninstall button.
