Pima VISION Quick Start Manual

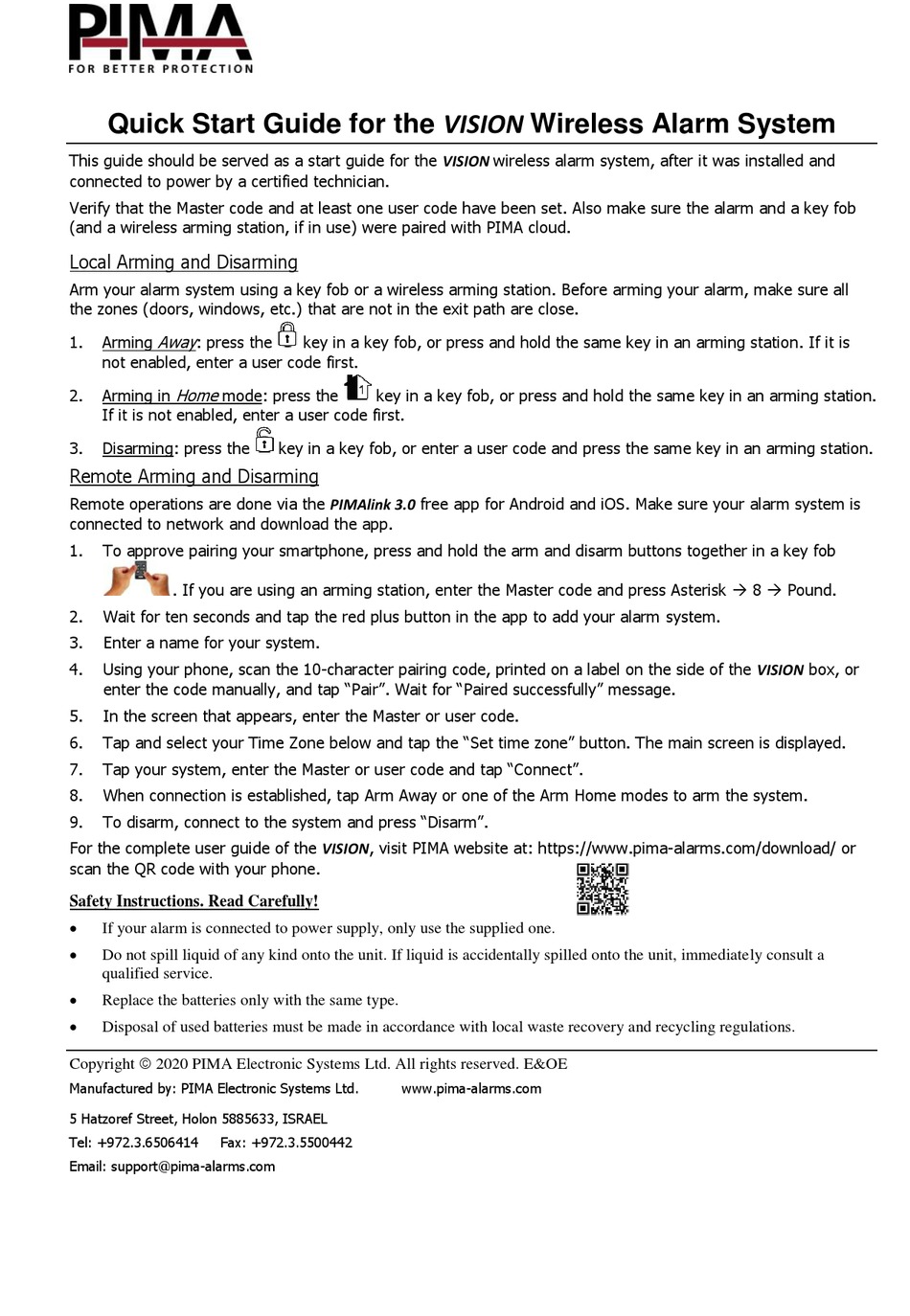

Quick Start Guide for the VISION Wireless Alarm System
This guide should be served as a start guide for the VISION wireless alarm system, after it was installed and
connected to power by a certified technician.
Verify that the Master code and at least one user code have been set. Also make sure the alarm and a key fob
(and a wireless arming station, if in use) were paired with PIMA cloud.

Local Arming and Disarming

Arm your alarm system using a key fob or a wireless arming station. Before arming your alarm, make sure all
the zones (doors, windows, etc.) that are not in the exit path are close.
Away
1. Arming : press the
not enabled, enter a user code first.
Home
2. Arming in mode: press the
If it is not enabled, enter a user code first.
3. Disarming: press the

Remote Arming and Disarming

Remote operations are done via the PIMAlink 3.0 free app for Android and iOS. Make sure your alarm system is
connected to network and download the app.
1. To approve pairing your smartphone, press and hold the arm and disarm buttons together in a key fob
. If you are using an arming station, enter the Master code and press Asterisk  8  Pound.
2. Wait for ten seconds and tap the red plus button in the app to add your alarm system.
3. Enter a name for your system.
4. Using your phone, scan the 10-character pairing code, printed on a label on the side of the VISION box, or
enter the code manually, and tap "Pair". Wait for "Paired successfully" message.
5. In the screen that appears, enter the Master or user code.
6. Tap and select your Time Zone below and tap the "Set time zone" button. The main screen is displayed.
7. Tap your system, enter the Master or user code and tap "Connect".
8. When connection is established, tap Arm Away or one of the Arm Home modes to arm the system.
9. To disarm, connect to the system and press "Disarm".
For the complete user guide of the VISION, visit PIMA website at: https://www.pima-alarms.com/download/ or
scan the QR code with your phone.

Safety Instructions. Read Carefully!


If your alarm is connected to power supply, only use the supplied one.

Do not spill liquid of any kind onto the unit. If liquid is accidentally spilled onto the unit, immediately consult a
qualified service.

Replace the batteries only with the same type.

Disposal of used batteries must be made in accordance with local waste recovery and recycling regulations.
Copyright  2020 PIMA Electronic Systems Ltd. All rights reserved. E&OE
Manufactured by: PIMA Electronic Systems Ltd.
5 Hatzoref Street, Holon 5885633, ISRAEL
Tel: +972.3.6506414 Fax: +972.3.5500442
Email: support@pima-alarms.com
key in a key fob, or press and hold the same key in an arming station. If it is
key in a key fob, or press and hold the same key in an arming station.
key in a key fob, or enter a user code and press the same key in an arming station.
