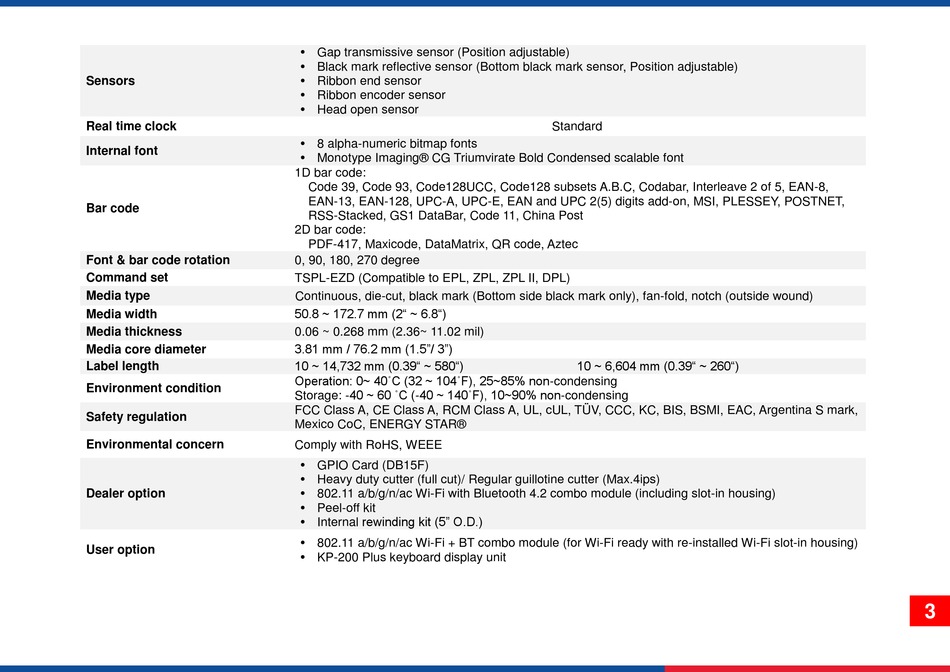

Sensors
Real time clock
Internal font
Bar code
Font & bar code rotation
Command set
Media type
Media width
Media thickness
Media core diameter
Label length
Environment condition
Safety regulation
Environmental concern
Dealer option
User option
 Gap transmissive sensor (Position adjustable)
 Black mark reflective sensor (Bottom black mark sensor, Position adjustable)
 Ribbon end sensor
 Ribbon encoder sensor
 Head open sensor
 8 alpha-numeric bitmap fonts
 Monotype Imaging® CG Triumvirate Bold Condensed scalable font
1D bar code:
Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8,
EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET,
RSS-Stacked, GS1 DataBar, Code 11, China Post
2D bar code:
PDF-417, Maxicode, DataMatrix, QR code, Aztec
0, 90, 180, 270 degree
TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)
Continuous, die-cut, black mark (Bottom side black mark only), fan-fold, notch (outside wound)
50.8 ~ 172.7 mm (2" ~ 6.8")
0.06 ~ 0.268 mm (2.36~ 11.02 mil)
3.81 mm / 76.2 mm (1.5"/ 3")
10 ~ 14,732 mm (0.39" ~ 580")
Operation: 0~ 40˚C (32 ~ 104˚F), 25~85% non-condensing
Storage: -40 ~ 60 ˚C (-40 ~ 140˚F), 10~90% non-condensing
FCC Class A, CE Class A, RCM Class A, UL, cUL, TÜ V, CCC, KC, BIS, BSMI, EAC, Argentina S mark,
Mexico CoC, ENERGY STAR®
Comply with RoHS, WEEE
 GPIO Card (DB15F)
 Heavy duty cutter (full cut)/ Regular guillotine cutter (Max.4ips)
 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module (including slot-in housing)
 Peel-off kit
 Internal rewinding kit (5" O.D.)
 802.11 a/b/g/n/ac Wi-Fi + BT combo module (for Wi-Fi ready with re-installed Wi-Fi slot-in housing)
 KP-200 Plus keyboard display unit
Standard
10 ~ 6,604 mm (0.39" ~ 260")
