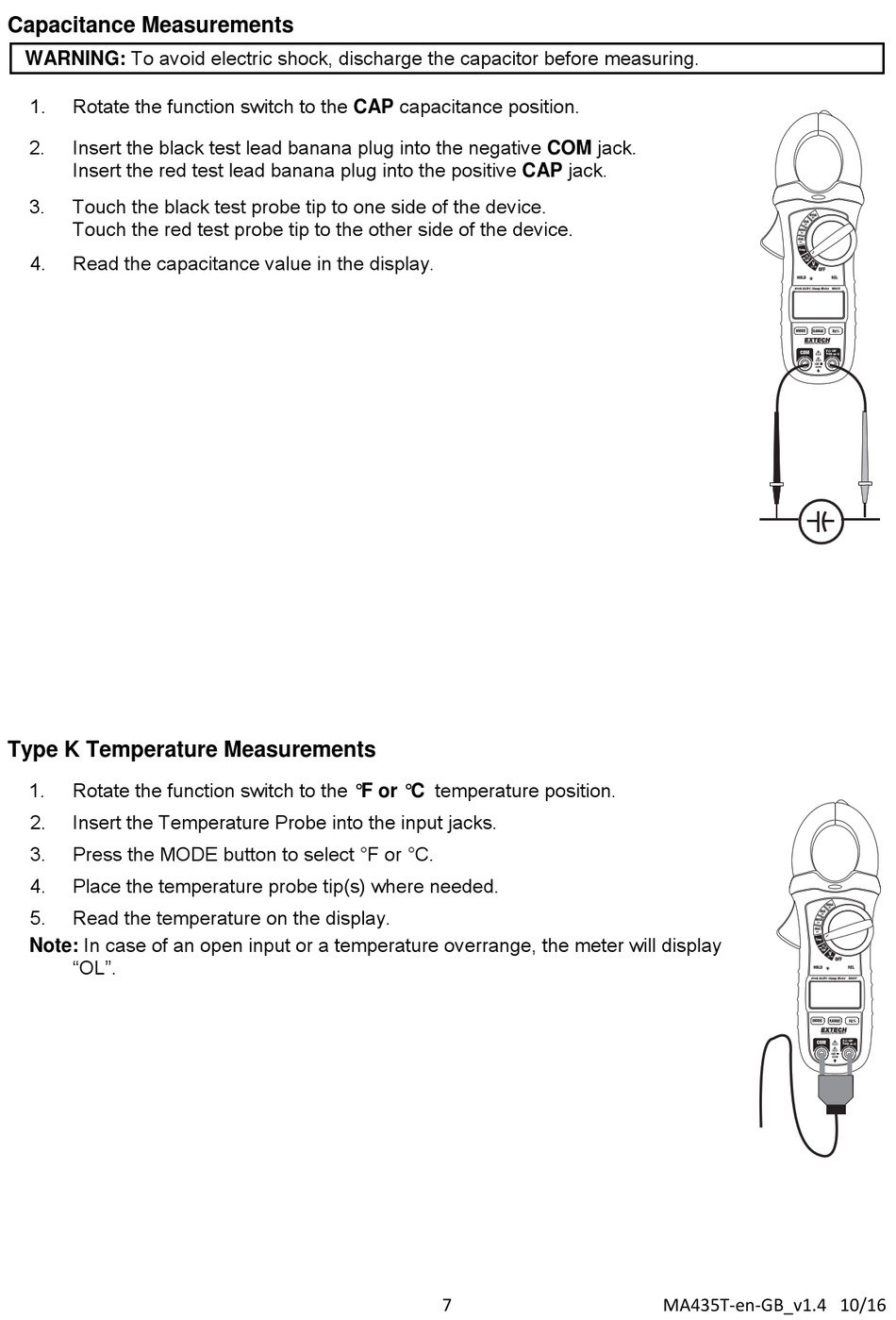

Extech Instruments MA435T User Manual page 7

Capacitance Measurements
WARNING: To avoid electric shock, discharge the capacitor before measuring.
1. Rotate the function switch to the CAP capacitance position.
2. Insert the black test lead banana plug into the negative COM jack.
Insert the red test lead banana plug into the positive CAP jack.
3. Touch the black test probe tip to one side of the device.
Touch the red test probe tip to the other side of the device.
4. Read the capacitance value in the display.
Type K Temperature Measurements
Rotate the function switch to the °F or °C temperature position.
1.
2. Insert the Temperature Probe into the input jacks.
3. Press the MODE button to select °F or °C.
4. Place the temperature probe tip(s) where needed.
5. Read the temperature on the display.
Note: In case of an open input or a temperature overrange, the meter will display
"OL".
7 MA435T‐en‐GB_v1.4 10/16
