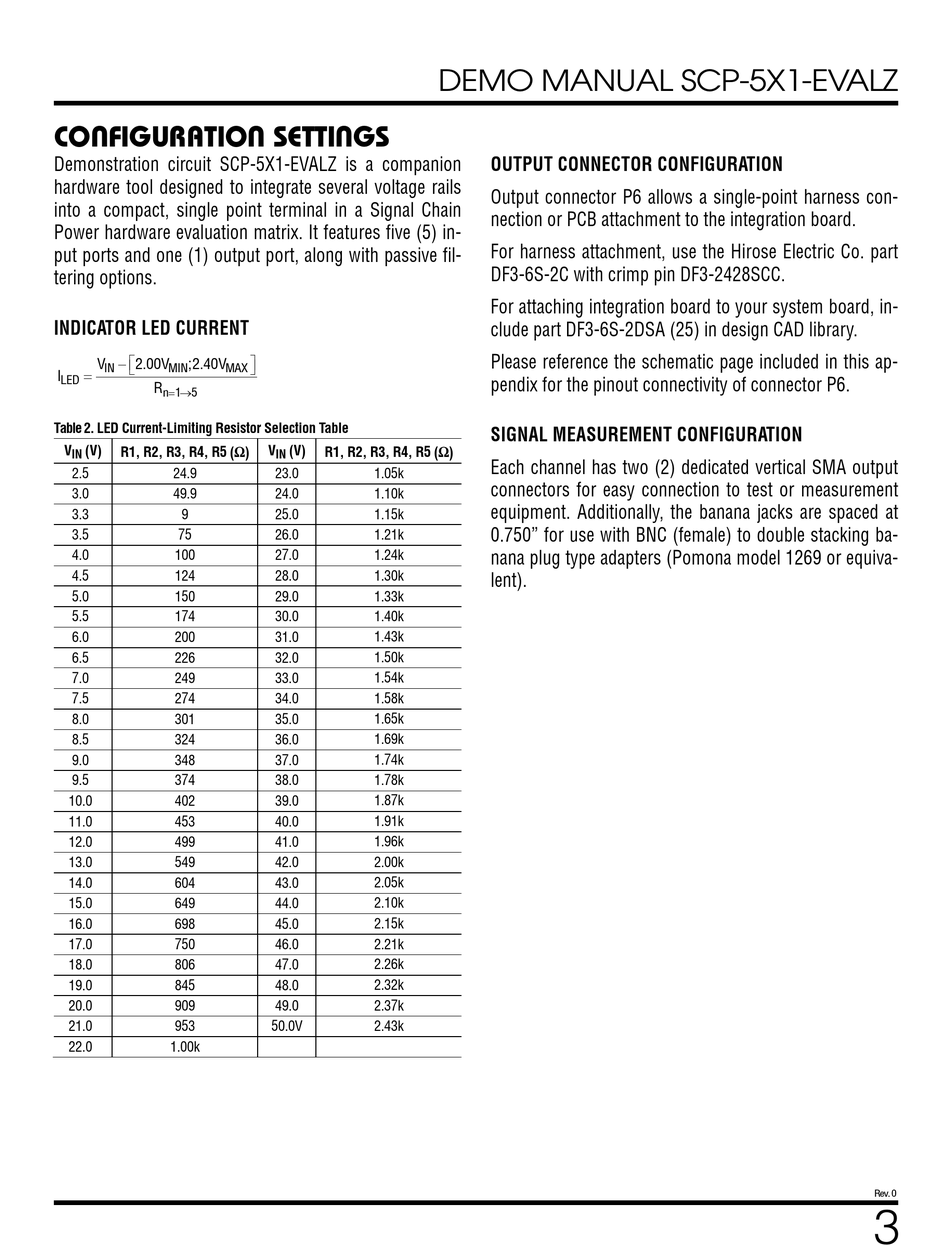

CONFIGURATION SETTINGS

Demonstration circuit SCP-5X1-EVALZ is a companion
hardware tool designed to integrate several voltage rails
into a compact, single point terminal in a Signal Chain
Power hardware evaluation matrix. It features five (5) in-
put ports and one (1) output port, along with passive fil-
tering options.
INDICATOR LED CURRENT
- é
V ë 2.00V ;2.40V
IN MIN M
=
I
LED
R
= ®
n 1 5
Table 2. LED Current-Limiting Resistor Selection Table
V (V)
R1, R2, R3, R4, R5 (Ω)
IN
2.5 24.9
3.0 49.9
3.3 9
3.5 75
4.0 100
4.5 124
5.0 150
5.5 174
6.0 200
6.5 226
7.0 249
7.5 274
8.0 301
8.5 324
9.0 348
9.5 374
10.0 402
11.0 453
12.0 499
13.0 549
14.0 604
15.0 649
16.0 698
17.0 750
18.0 806
19.0 845
20.0 909
21.0 953
22.0 1.00k
ù
û
AX
V (V)
R1, R2, R3, R4, R5 (Ω)
IN
23.0 1.05k
24.0 1.10k
25.0 1.15k
26.0 1.21k
27.0 1.24k
28.0 1.30k
29.0 1.33k
30.0 1.40k
31.0 1.43k
1.50k
32.0
33.0 1.54k
34.0 1.58k
1.65k
35.0
36.0 1.69k
37.0 1.74k
38.0 1.78k
1.87k
39.0
40.0 1.91k
1.96k
41.0
42.0 2.00k
2.05k
43.0
44.0 2.10k
2.15k
45.0
46.0 2.21k
2.26k
47.0
48.0 2.32k
2.37k
49.0
50.0V 2.43k
DEMO MANUAL SCP-5X1-EVALZ
OUTPUT CONNECTOR CONFIGURATION
Output connector P6 allows a single-point harness con-
nection or PCB attachment to the integration board.
For harness attachment, use the Hirose Electric Co. part
DF3-6S-2C with crimp pin DF3-2428SCC.
For attaching integration board to your system board, in-
clude part DF3-6S-2DSA (25) in design CAD library.
Please reference the schematic page included in this ap-
pendix for the pinout connectivity of connector P6.
SIGNAL MEASUREMENT CONFIGURATION
Each channel has two (2) dedicated vertical SMA output
connectors for easy connection to test or measurement
equipment. Additionally, the banana jacks are spaced at
0.750" for use with BNC (female) to double stacking ba-
nana plug type adapters (Pomona model 1269 or equiva-
lent).
