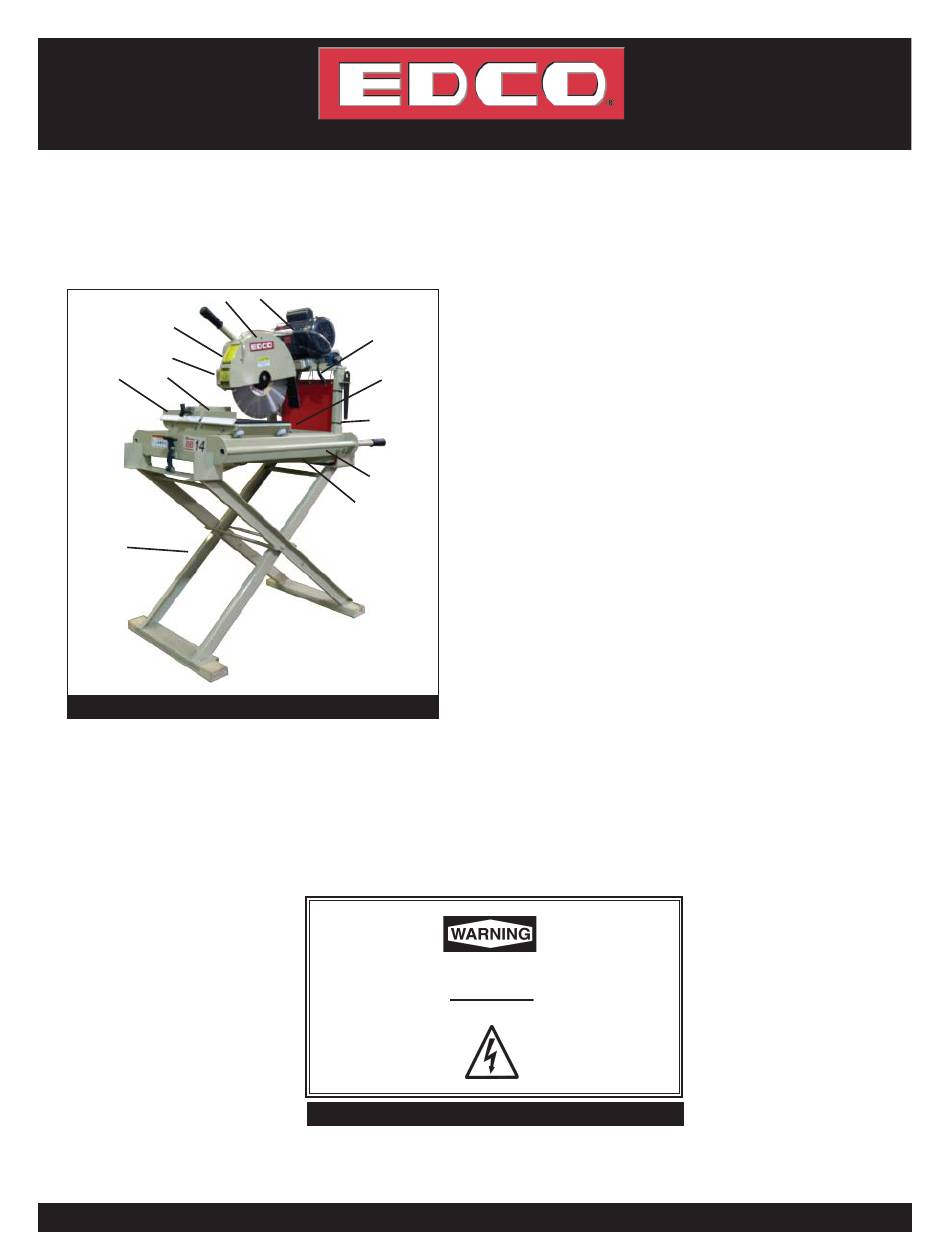

Operator Controls- Electric Models
I
C
A
K
J
G
L
M
Figure 4
EQUIPMENT DEVELOPMENT CO., INC.
B
D
N
E
H
F
Electric motor must be properly grounded
at all times.
800-638-3326 • edcoinc.com • sales@edcoinc.com

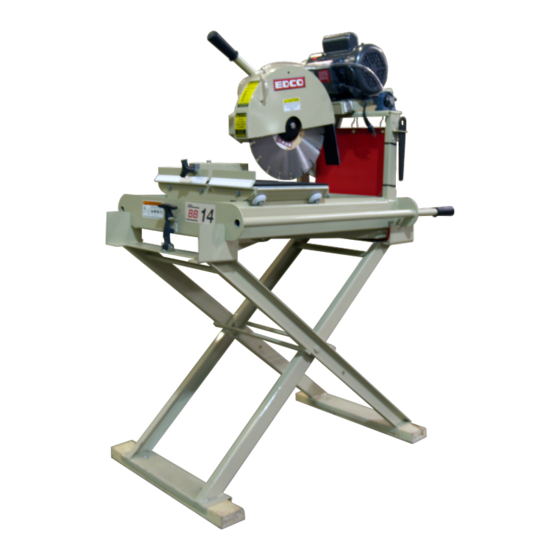

BB14 Electric (Figure 4)
A. Operating Handle
B. Motor
C. Reset Button
D. Power Cord
E. Water Pick Up Hose
F. Water Tray Plug
G. Rolling Table
H. Welded Steel Frame/Water Tray
I.
Blade Guard
J. Drive Belt Guard
K. Blade Guard Lock
L. Cutting Angle Lock
M. Optional Folding Table
N. Submersible Water Pump
Figure 5
E-BB14E&BB14G-I-0416
E-SPTS-I-0809
J
Page 5
Advertisement
Table of Contents
Related Manuals for Edco BB14
Summary of Contents for Edco BB14
- Page 1 E-BB14E&BB14G-I-0416 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. Operator Controls- Electric Models BB14 Electric (Figure 4) A. Operating Handle B. Motor C. Reset Button D. Power Cord E. Water Pick Up Hose F. Water Tray Plug G. Rolling Table H. Welded Steel Frame/Water Tray Blade Guard J.
- Page 2 E-BB14E&BB14G-I-0416 EQUIPMENT DEVELOPMENT CO., INC. Read and understand this Operator’s Instruction Manual, and the Engine Manufacturer’s Owner’s Manual before operating this equipment. Death of serious injury can result if this machine is used improperly. Safety Guidelines Eye and ear protection must be worn at all times while the saw is in use. During normal operation, sound pressure levels exceed 85dBA.
- Page 3 E-BB14E&BB14G-I-0416 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. Operating Instructions Before Starting: • Read and understand the instructions supplied by the engine manufacturer. • Familiarize yourself with all engine and saw controls. (Figure 2) • Visually inspect the entire machine for damage or wear. Look for signs of oil or fuel leaks. Remove excess dirt or debris.
- Page 4 E-BB14E&BB14G-I-0416 EQUIPMENT DEVELOPMENT CO., INC. When Wet Cutting: • Secure the drain plug and fi ll the tray with clean water. On Gasoline Models: • To engage water pump loosen the black knob and lightly push top of water pump to the left with constant pressure and tighten black knob.
- Page 5 E-BB14E&BB14G-I-0416 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. When Dry Cutting: • Drain and fl ush any water or debris in the tray and dispose of properly. On Gasoline models: • To disengage water pump loosen the black knob and push top of water pump to the right with constant pressure and tighten black knob.
- Page 6 E-BB14E&BB14G-I-0416 EQUIPMENT DEVELOPMENT CO., INC. Starting the Engine: • Be sure blade is clear of item to be cut. • Determine that the recoil starter assembly turns freely, starter rope pulls easily, and the rope retracts properly. • Follow the instructions supplied in the Engine Manufacturer’s Owner’s Manual for starting engine. •...
- Page 7 E-BB14E&BB14G-I-0416 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. Cutting: • Do not strain the engine/motor while cutting. Do not jam work piece into the blade. Do not twist the work piece while cutting. • When you have fi nished cutting: On Gasoline models: To stop engine, return throttle to idle. Stop the engine by turning the engine mounted stop switch to the OFF position.
- Page 8 E-BB14E&BB14G-I-0416 EQUIPMENT DEVELOPMENT CO., INC. Disconnect spark plug lead before performing any maintenance on this machine. Maintenance Consult the Engine Manufacturer’s Owner’s Manual for more detailed engine maintenance instructions. Changing the Blade: • Inspect the new blade thoroughly before installing. Check for cracks, loose or missing segments, worn or out-of- round arbor holes.
