External power

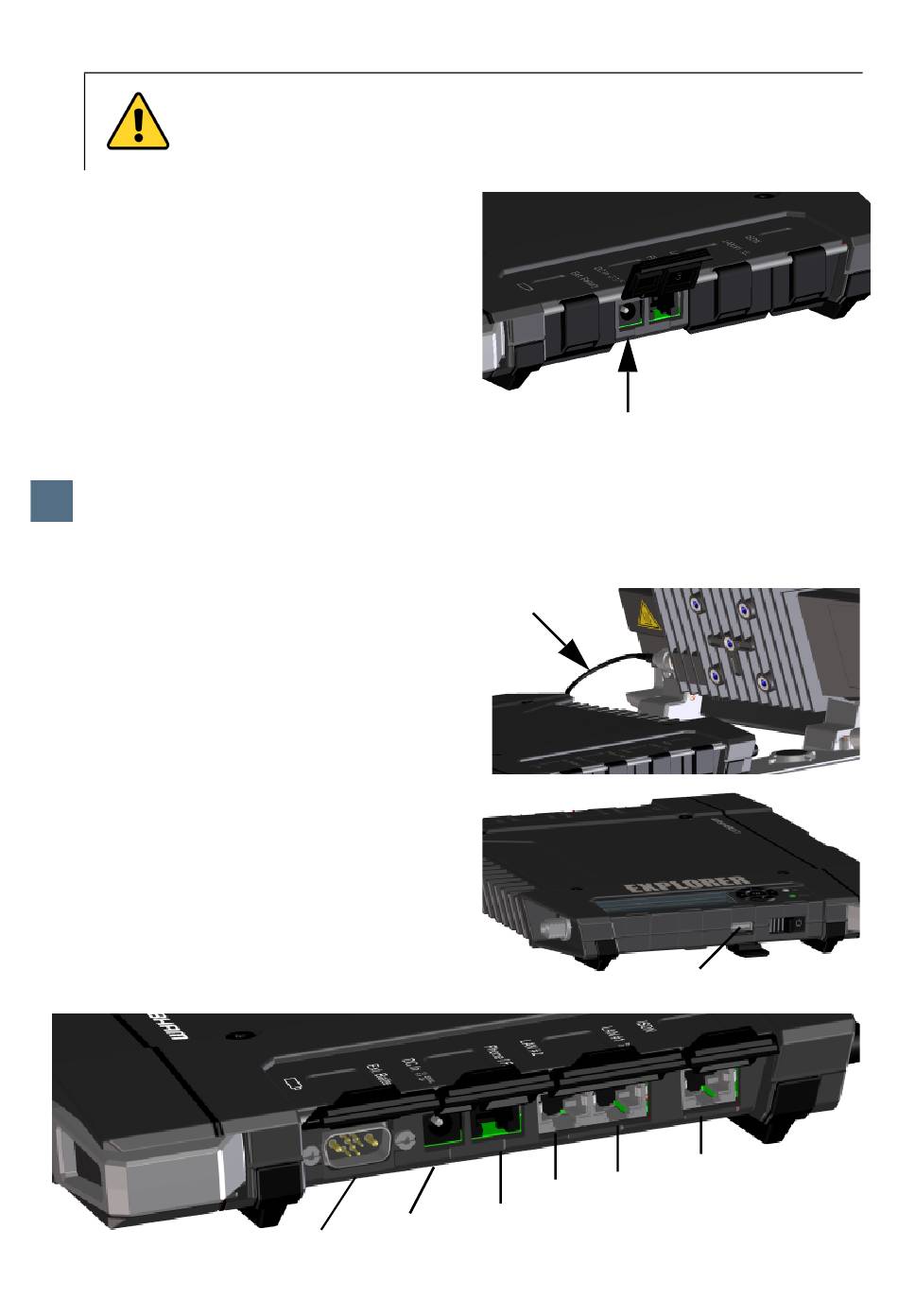

CAUTION! Close all covers for unoccupied connectors as shown in the
picture below. Reason: If you accidentally connect the DC power cable to the
External battery connector you may cause damage to the terminal!
To power the terminal or to charge the
battery, connect one of the following
external power sources to the DC input:
• 10-32 VDC
• The supplied AC/DC adapter connected to
100-240 V Mains.
• A solar panel (min. 65 W, 10-32 VDC)
Connect user equipment
3
3
The antenna cable is connected at
delivery.
NOTE: If you want to use the antenna
separated from the transceiver, use a longer
antenna cable and remove the transceiver
from the antenna bracket. See the next
section.
Connect your equipment to the relevant
connector(s) on the transceiver.
NOTE: The USB interface is a Host interface,
used e.g. for charging phones or tablets (up
to 2 A) or for software update using a USB
memory stick.
2
DC in
External battery
DC input
LAN1
LAN2
(PoE)
Phone/
Fax
USB (Host)
ISDN
