KEY QTY
PART #
1
1
1-653363
2
1
1-806003
3
1
1-402106
4
1
1-805517
5
2
1-323385
6
1
1-653439
1
1-653362
1
1-653309
7
1
1-653438
1
1-653333
1
1-653332
8
1
103-1316
1
103-1318
9
1
1-653532-03 Spacer, Counterweight (52" decks)
10
1
322-2
11
1
103-1279
CV
ULTRA VAC DRIVE KIT
DESCRIPTION
Pin, Chute Pivot
Pin, Hair
Chute Weldment, 48" SD
(48" decks SN 203376 & below only)
2.25 O.D Washer
(48" decks SN 203376 & below only)
Knob, Belt Shield
Sheave, Blower Drive (52" decks)
Sheave, Blower Drive (48" decks)
Sheave, Blower Drive (44" decks)
Belt, Blower (52" decks)
Belt, Blower (48" decks)
Belt, Blower (44" decks)
Cover, Belt (44 and 48" decks)
Cover, Belt (52" decks)
5/16 – 18 X .62 Hex Head Screw
Plug

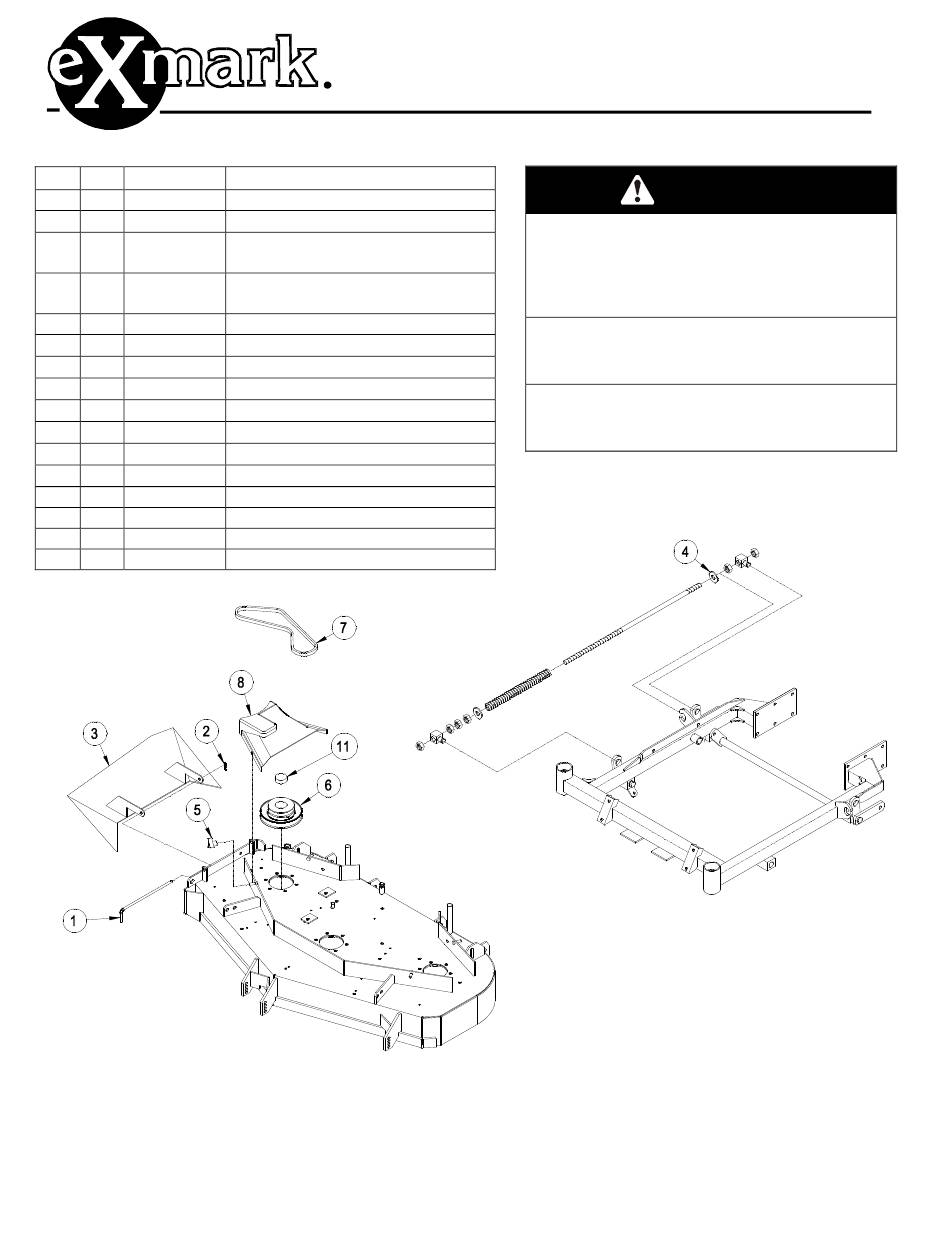

FIGURE 1
INSTRUCTION SHEET
WARNING
POTENTIAL HAZARD
♦
An uncovered discharge opening will allow
objects to be thrown in an operator's or
bystander's direction. Also, contact with
blade could occur.
WHAT CAN HAPPEN
♦
Thrown objects or blade contact can cause
serious injury or death.
HOW TO AVOID THE HAZARD
♦
Never operate mower unless discharge chute
or entire grass collection system is in place.
Kit # 103-1313, 103-1314, 103-1315, 103-1317
Page 1 of 5
Part # 103-2501
09/11/01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Exmark ULTRA VAC
Summary of Contents for Exmark ULTRA VAC
- Page 1 INSTRUCTION SHEET ULTRA VAC DRIVE KIT KEY QTY PART # DESCRIPTION WARNING 1-653363 Pin, Chute Pivot 1-806003 Pin, Hair POTENTIAL HAZARD ♦ 1-402106 Chute Weldment, 48” SD An uncovered discharge opening will allow (48” decks SN 203376 & below only) objects to be thrown in an operator’s or...
- Page 2 DISCHARGE CHUTE REPLACEMENT INSTRUCTIONS: 1. Remove two (2) capscrews connecting the discharge chute to the deck. Remove the discharge chute. For 48” decks, Serial Nos. 203376 and lower, verify that the unit has discharge chute tabs that measure 4” high from the top of the deck plate before continuing with Step 1. See Fig 3. For 44”...
- Page 3 10. Remove the blocks from under the deck so that it hangs freely from all four chains 11. Set the deck lift lever to the 4.5” cutting height position (also transport position). Adjust the spring tension until proper distance is obtained between the two washers (See Fig 2) by turning the nut at the front of the spring.
- Page 4 1. Remove the right side belt shield and the 5/16 x 3 1/4 bolt that secures the shield to the deck. 2. If you are mounting the Ultra Vac on a Lazer HP with serial number 220,000 or higher, skip to step 3. For Lazer HPs with serial numbers 220,000 and lower, locate and cut off the corners of the right deck reinforcement plates by measuring 2”...
- Page 5 This installation should be done at the same time as installing the Bagger Mount supplied in the Ultra Vac Accessory. See Ultra Vac Operator’s Manual for detailed instructions. Page 5 of 5...
