Diagnostics function:
This function can be found via Set PG/PC-Interface > Diagnostics. There
you can execute hardware diagnostics of the module. The following
values can be determined:
1. List of all reachable stations at the bus.
2. Bus parameters which the ACCON-NetLink-USB compact uses on
the bus.

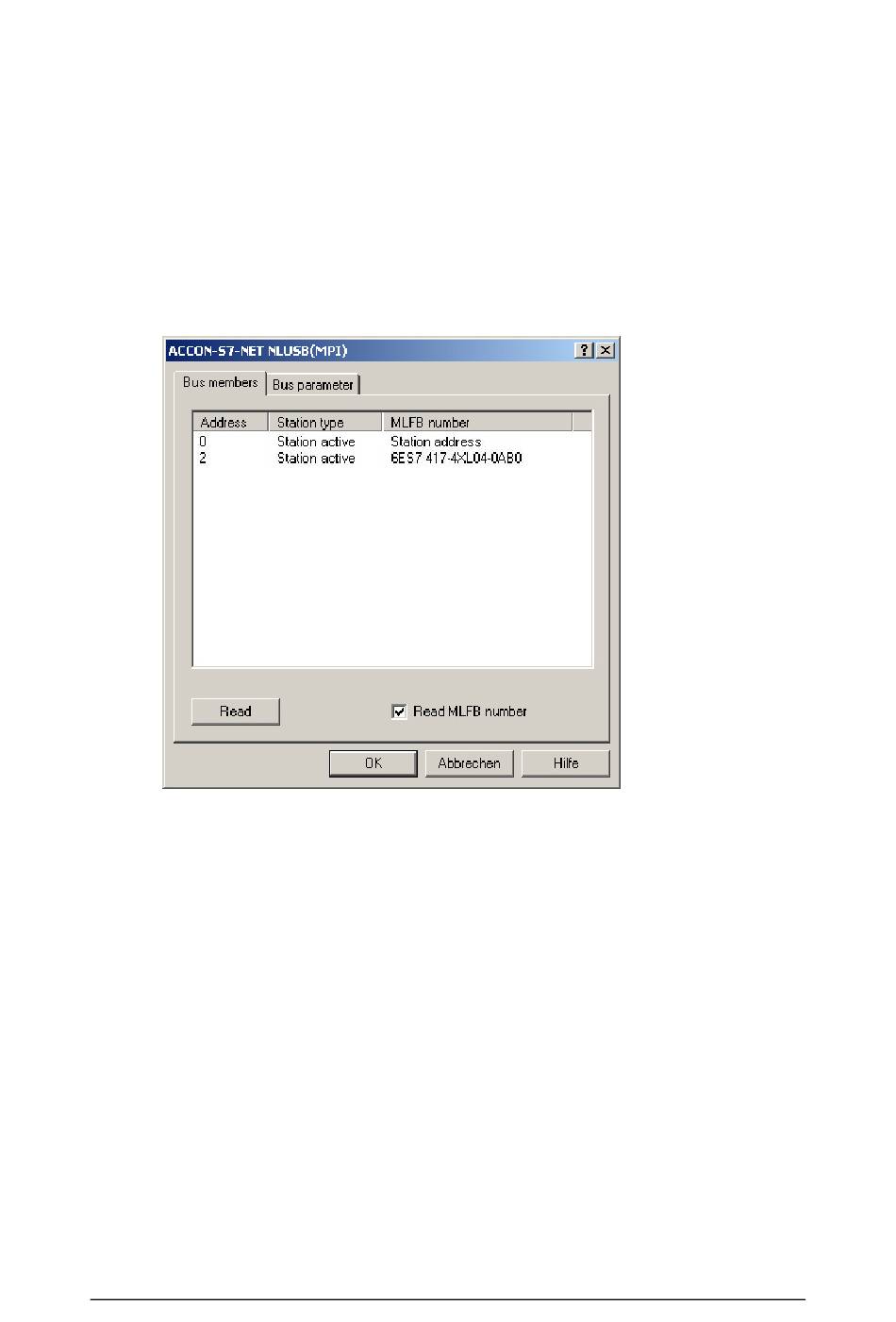

Figure 9: Diagnostics function
Click on the button »Read« to determine the values.
Notes about the stations:
Address:
Station type:
MLFB number:
Notes about the bus parameters:
ACCON-NetLink-USB compact
Bus address of the station
There are active (Master) and passive (Slave)
stations
The order number of the station is only shown if
the option »Read MLFB number« is activated.
The used ACCON-NetLink-USB compact is shown
as »Station address«.
