Advantech B+B SmartWorx Airborne WLNN-EK-DP551 Quick Start Manual

8
Device personalities,
Configuration and set-up
The Airborne™ EVB can support all device personalities
available within the B+B SmartWorx product line. A device
personality is a specific configuration of the Airborne™
device which performs a certain function. Examples
include Ethernet Router, Serial Device Server, SPI Device
Server, etc. The EVB is shipped with the default personality
set as an Industrial Serial Devices Server.
Changing the personality to match your application is
the first thing you should do when working with the EVB.
It is important to select the appropriate personality. The
following table outlines the personalities and their specific
functionality:
Device Personality & Function
Personality Description
Serial device server with LVTTL I/O. Supports
UART
dual UART, debug port, single Ethernet,
802.11a/b/g/n. Ethernet interface is a client.
Serial device server with control signals to
Direct support external RS232/422/485 drivers. Support
Serial dual serial ports, debug port, single Ethernet,
802.11a/b/g/n.
Ethernet NAT3 router. Built-in DHCP server on
Ethernet port supports multiple Ethernet slients
on the Ethernet interface. Includes rule-based
Firewall and Port Forwarding.
Ethernet
Ethernet interface is set as a router. Suitable for
Router
applications where there are multiple Ethernet
clients on the Ethernet network.
Also supports dual UARTs, debug port,
802.11a/b/g/n.
Ethernet bridge designed to connect wireless
(802.11a/b/g/n) to an existing Ethernet port.
Ethernet
Suitable for applications where there is a single
Client
Ethernet client to be connected to a wireless
Bridge
network.
Also supports dual UARTs, debug port.
High-speed SPI device server. SPI slave
SPI
device. Also supports single UART, debug port,
802.11a/b/g/n.
Serial device server with control signals to sup-
port external RS-232/422/485 drivers. Support
Industrial dual serial ports, debug port, single Ethernet,
Serial 802.11a/b/g/n.
Similar to the Direct Serial, but has Ethernet
interface enabled as an Ethernet client device.
Ethernet NAT3 router. Built-in DHCP server on
Ethernet port supports multiple Ethernet clients
Industrial
on the Ethernet interface. Includes rule-based
Ethernet
Firewall and Port Forwarding. Also supports dual
UARTs, debug port, 802.11a/b/g/n.
802.11a/b/g/n Access Point with an Ethernet port
Industrial
that supports both bridge and router modes;
Access
and up to two serial ports which are compatible
Point
with RS-232/422/485 devices.
Document Number: 710-10086-00_r4_WLNN-EK-DP551_0219qsg
9

Change module personality

The Change Module Personality web page displays the
available device personalities.
After selecting the appropriate personality, you must press
the Commit button and restart the module to save and apply
the change.
Note: The web interface is context sensitive. Not all of the fields will be visible
without a context change.
Model# Series
WLNN-AN-DP551
WLNN-SE-DP551
ABDN-ER-DP55x
ABDN-ER-IN501x
WLNN-ER-DP551
ABDN-ER-DP55x
ABDN-ER-IN501x
WLNN-ER-DP551
These units can easily be
converted to bridge-mode
using AMC templates.
WLNN-SP-DP551
ABDN-SE-IN542X
ABDN-SE-IN541X
ABDN-ER-IN501x
1 (888) 948-2248 | Europe: +353 91 792444
APXN-Q542x
707 Dayton Road | PO Box 1040 | Ottawa, IL 61350
Phone: (815) 433-5100 | Fax: (815) 433-5109
www.advantech-bb.com | E-mail: support@advantech-bb.com
www.advantech-bb.com
QUICK START
GUIDE
Model WLNN-EK-DP551
Airborne™ Evaluation Kit
Design & Development

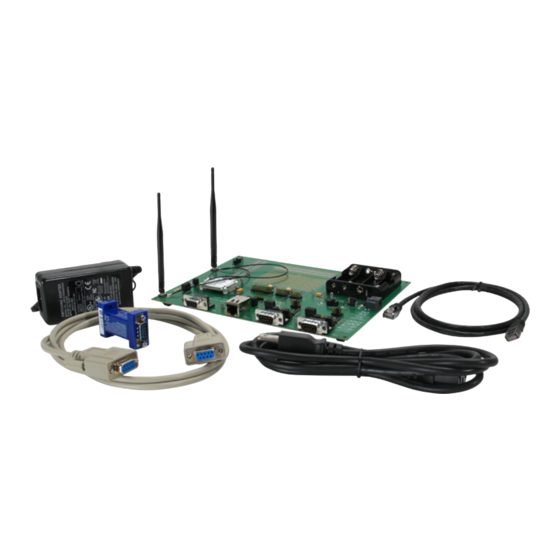

Before you begin, be
sure you have the following:
(1) Airborne Enterprise Module Evaluation Circuit Board
Assembly ("EVB")
(1) Airborne WLNN-EK-DP551 module (mounted to EVB)
(1) 5VDC power supply, 2.1mm barrel jack, cable
(2) 2dBi, 2.4GHz/5Ghz, 50 Ohm, omni-directional antenna
(1) DB9/-DB9 serial cable (null modem)
(1) USB to serial adapter (Model# 232USB9M-LS)
(1) CAT5 Ethernet cable
(1) Quick Start Guide
(1) Airborne software & documentation CD
