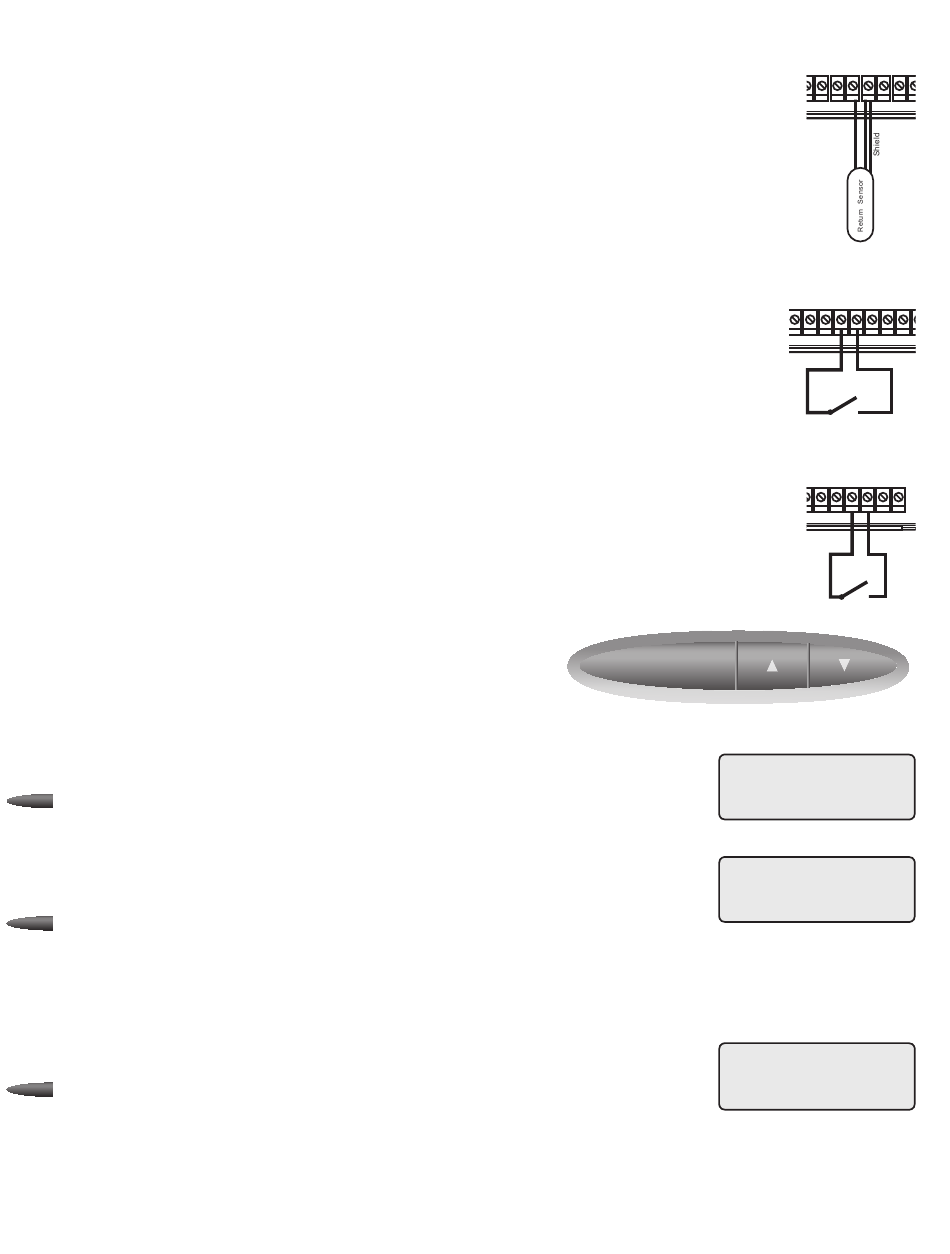

Sensor Wiring
T3-. Connect the other sensor wire and the shield to the front terminal marked T3-.
• Do not run sensor wires in conduit with line voltage wiring.
T1 COM T2 COM T3+ T3- EXT+ EXT- P+ P- COM 24VAC
Wiring the Enable/Disable (EXT+, EXT-)
• The EXT terminals can be used to enable or disable the system by connecting it to a thermostat, external control,
or a switch. It accepts dry contact input only.
• If no thermostat or control is connected to the EXT terminals, leave the jumper supplied as a contact to the
terminals.
Boiler
• The HWE-MOV will close the valve unless the EXT terminals are closed/shorted. Output Wiring
Wiring the Setback/Boost (P+, P-)
YELLOW
• The Setback feature can be used to provide the HWE-MOV with a lower temperature Set Point when less heat
is required.
• A typical use for Setback is to provide less system temperature to a building during the night or on the
weekends when building is not occupied, but heat is still required.
• The Setback is activated by closing/shorting the P+ and P- terminals using an external timer.
Button and Navigating Menus
The HWE-MOV has three buttons.
• The SET button function varies. When the Default Screen is displayed, pressing the SET Button views the
Sensor Wiring
24VAC Power Wiring
MENU. When in the Menus and settings, the SET Button accepts the selected entry or setting value.
• When in the menus, pressing the Up and Down buttons will scroll through the menu options. They can be used
to change the setting of a specific function. i.e., change the Set Point, Differential, or System Trim. In addition,
when in the default screen, the Up and Down buttons will display the outdoor temperature and Outdoor Cutoff
T1 COM T2 COM T3+ T3- EXT+ EXT- P+ P- COM 24VAC
when no return sensor is available, or the outdoor temperature and the return temperature when an active return
sensor is connected.
• At the end of every operation menu there is a <Back> option that allows the user to go back one menu level. If
the SET Button was held down for three seconds on the <Back> option, the display will go back to the default
screen.

Startup Options

When the control is initiated for the first time or after a manual reset, it will start
its operation with the Startup Menu. Later, the Startup menu can be accessed as
an option from the operation menu. An option must be accepted in each screen in the Startup Menu to move to the next level.
Display Unit
Options: ºF, ºC
/<System Startup>/Display Unit
SET
• The HWE-MOV will offer two different temperature displays. If ºF is selected, all temperatures
will display in Fahrenheit. If ºC is selected, all temperatures will display in Celsius.
Control Mode
Options: Outdoor Reset, Set Point
/<System Startup>/Display Unit/Control Mode
SET
• The new HWE-MOV have two heating logics. Outdoor Reset; varies the system set point/target based on outdoor temperature.
This selection will add several menu options, Reset Ratio, Offset, Min Water temp, Max Water temp, and Outdoor Cutoff, to allow
of adjustment and fine tuning of the Reset Curve. In addition, a customized curve will be available for specialized applications.
• Set Point; Gives the installer the flexibility of selecting a fixed set point. The Outdoor Cutoff will be available if an outdoor sensor
was installed.
Sensor Fault
Options: Output On, Output Off
/<System Startup>/..../Sensor Fault
SET
• The Sensor Fault will determine the operating status of the output relays when a sensor reads Short or Open. On sensor fault the
Set Point will indicate FAULT TGT=ON or OFF to indicate the condition of the output and the faulty sensor will read OPEN or
SHORT to indicate the condition of the sensor.
24VAC Power Wiring
24VAC Power Source
N.O.
24VAC Power Source
Return Sensor
4
Wiring
N.O.
Sensor Wiring
24VAC Power Wiring
T1 COM T2 COM T3+ T3- EXT+ EXT- P+ P- COM 24VAC
T1 COM T2 COM T3+ T3- EXT+ EXT- P+ P- COM 24VAC
System Pump
Output Wiring
24VAC Power Source
N.O.
ORANGE
Input Terminals
T1 COM T2 COM T3+ T3- EXT+ EXT- P+ P- COM 24VAC
Return Sensor
Wiring
T1 COM T2 COM T3+ T3- EXT+ EXT- P+ P- COM 24VAC
Input Terminals
Default: ºF
T1 COM T2 COM T3+ T3- EXT+ EXT- P+ P- COM 24VAC
Default: Outdoor Reset
Default: Output On
BLACK
Setback/Boost
120VAC Power Source
Return Sensor
BLACK
Wiring
T1 COM T2 COM T3+ T3- EXT+ EXT- P+ P- COM 24VAC
T1 COM T2 COM
Floating Motorized Valve
Output Wiring
WHITE
OPEN.
N.O.
RED
COM
Enable/Disable
N.O.
Wiring
BLUE
CLOSE
Input Terminals
T1 COM T2 COM T3+ T3- EXT+ EXT- P+ P- COM 24VAC
T1 COM T2 COM T3+
Setback/Boost
Wiring
T1 COM T2 COM T3+ T3- EXT+ EXT- P+ P- COM 24VAC
SET
Enable/Disable
Wiring
DISPLAY UNIT:
F
T1 COM T2 COM T3+ T3- EXT+ EXT- P+ P- COM 24VAC
C
SET
CONTROL MODE:
Outdoor Reset
Set Point
SET
SENSOR FAULT:
Output On
Output Off
SET
SET
Wiring
T3+ T3- EXT+ EXT- P+ P- COM 24VAC
Floating
Motorized
Valve
T3- EXT+ EXT- P+ P- COM 24VAC
