Models CB36500X CB36M500X
Models CB36600X CB36M600X
IMPORTANT - PLEASE READ AND FOLLOW
-Before beginning installation, please read these instructions completely and carefully.
-Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty. -Please observe all local
and national codes and ordinances.
-Please ensure that this product is properly grounded.
-The installer should leave these instructions with the consumer who should retain for local inspector's use and for
future reference.
-The electrical plug should always be accessible.
Installation must conform with local codes or in the absence of codes, the National Fuel Gas Code ANSIZ223.1-latest edition. Electrical
installation must be in accordance with the National Electrical Code, ANIS/NFPA70
Installation must be in accordance with the current CAN/CGA-B149.1 National Gas Installation Code or CAN/CGA-B
Installation Code and/or local codes. Electrical installation must be in accordance with the current CSA C22.1 Canadian Electrical
Codes Part 1 and/or local codes.
Installation of any gas-fired equipment should be made by a licensed plumber. A manual gas shut-off valve must be installed in the gas
supply line ahead of the oven in the gas flow for safety and ease of service.
In Massachusetts:
All gas products must be installed by a "Massachusetts" licensed plumber or gasfitter. A "T" handle type manual
gas valve must be installed in the gas supply line to this appliance.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
OBSERVE ALL GOVERNING CODES AND ORDINANCES.
WARNING: If the information in this manual is not followed exactly, a
fire or explosion may result causing property damage, personal injury
or death.
Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
- Do not light any appliance.
- Do not touch any electrical switch.
- Do not use any phone in your building.
- Immediately call your gas supplier from a neighbor's phone. Follow
the gas supplier's instructions.
- If you cannot reach your gas suppliers, call the fire department.
Installation and service must be performed by a qualified installer,
service agency or the gas supplier.
310496
Installation, Service and User Instructions

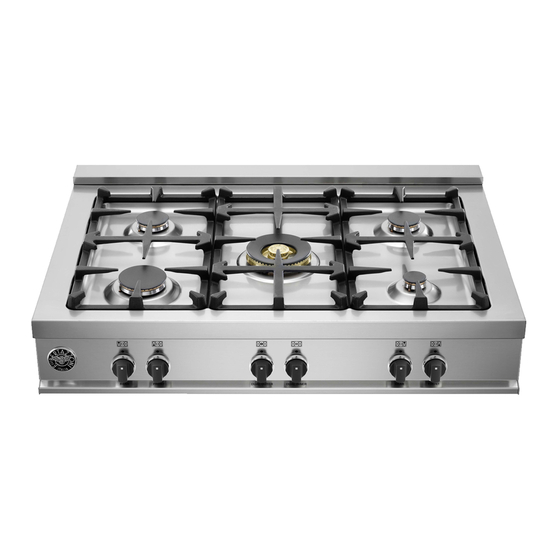

Built-in gas cooktops
BERTAZZONI
DIMENSIONS: 36'' (915 mm)(W) x 253/16'' (640 mm)(D)
[C3W0..(U or A)7X(2 or 5)A]
[C3Y0..(U or A)7X(2 or 5)A]
-
latest edition and/or local codes. IN CANADA:
149.2,
Propane
Advertisement
Table of Contents
Related Manuals for Bertazzoni CB36M500X
Summary of Contents for Bertazzoni CB36M500X
- Page 1 Installation, Service and User Instructions Built-in gas cooktops BERTAZZONI DIMENSIONS: 36’’ (915 mm)(W) x 253/16’’ (640 mm)(D) Models CB36500X CB36M500X [C3W0..(U or A)7X(2 or 5)A] Models CB36600X CB36M600X [C3Y0..(U or A)7X(2 or 5)A] IMPORTANT - PLEASE READ AND FOLLOW -Before beginning installation, please read these instructions completely and carefully.
- Page 2 WARNING Read this instruction booklet before installing and using the appliance. The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. The manufacturer reserves the right to make changes to its products when considered necessary and useful, without affecting the essential safety and operating characteristics.
- Page 3 INSTALLATION MANUAL WORKTOP FRONTGUARD INSTALLATION INSTRUCTIONS In order to increase the clearance between front edge of the worktop and the burners for your safety it is recomended to install the worktop frontguard supplied with the appliance. For installation instructions follow the instructions indicated in the following figures...
- Page 4 PROXIMITY TO SIDE CABINET INSTALLATION This rangetop may be installed directly adjacent to existing 36" (91.5 cm) high base cabinets. IMPORTANT: The top grate support MUST be 3/8" (.95 cm) above the adjacent base cabinet countertOP. The rangetop CANNOT be installed directly adjacent to sidewalls, tall cabinets, tall appliances, or other side vertical surfaces above 36"...
-
Page 5: Electrical Connection
COOKER HOOD INSTALLATION The bottom of the hood should be 25 ½ " (65 cm) min. to 31 ½ " (80 cm) above the countertop. Refer to the rangehood installation instructions for additional information. These dimensions provide for safe and efficient operation of the hood. ELECTRICAL CONNECTION This unit is manufactured for a polarized, grounded 120 volt/60 Hz, 16 amp system. - Page 6 Wiring diagram For freestanding gas range model CB36600X C3Y0..U7X(2 or 5)A CAUTION: label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing. For freestanding gas range model CB36500X C3W0..U7X(2 or 5)A CAUTION: label all wires prior to disconnection when servicing controls.
-
Page 7: Gas Connection
GAS CONNECTION All gas connections must be made according to national and local codes. This gas supply (service) line must be the same size or greater than the inlet line of the appliance. This range uses a 1/2" NPT (see fig. in this chapter for details of gas connections installations) inlet. -
Page 8: Replacement Parts
REPLACEMENT PARTS Only authorized replacement parts may be used in performing service on the appliance. Replacement parts are available from factory authorized parts distributors. CONVERSIONE TO DIFFERENT TYPES OF GAS Before carrying out any maintenance work, disconnect the appliance from the gas and electric supply. - Page 9 4500 1319 Regulated N°2 x 0,83 LP (Propane) 11” 16400 4804 4500 1319 0,65 Models CB36500X CB36M500X [C3W0..(U or A)7X(2 or 5)A] Adapting to different types of gas Burner Position Injector Pressure Max Rate Min Rate By-pass diam. [mm.] Type [i.w.c.]...
-
Page 10: Service & Maintenance Instructions
USER MANUAL DESCRIPTIONS DESCRIPTIVE CAPTION FOR HOB DESCRIPTION OF HOBS 1. Small Burner Model CB36500X CB36M500X [C3W0..(U or A)7X(2 or 5)A]Fig. A 2. Medium burner Model CB36600X CB36M600X [C3Y0..(U or A)7X(2 or 5)A]Fig. B 3. Rapid burner 4. Dual burner Fig. -
Page 11: Using Burners
USING BURNERS A diagram is etched on the control panel above each knob which indicates which burner corresponds to that knob. Manual ignition: Manual ignition is always possible even when the power is cut off or in the event of prolonged power failure. Turn the knob that corresponds to the burner selected counterclockwise to the MAXIMUM position at the etched star (large flame) and place a lit match up to the burner. -
Page 12: Cleaning The Appliance
WARNING: If the power is cut off, the burners can be lit with matches. The burners equipped with a safety thermocouple can only be lit when the knob is in the MAXIMUM position (large flame etching). CLEANING THE APPLIANCE: Never use abrasive cleaners Before cleaning the appliance it should be disconnected from the power supply. -
Page 13: Two Year Limited Warranty
Please kindly register on our web site www.bertazzoni.com to validate your new product warranty and help us to assist you better in case of any inconvenience. TWO YEAR LIMITED WARRANTY The warranties provided by Bertazzoni Spa in this statement apply exclusively to Bertazzoni appliances and accessories sold as new products to the original owner by a Bertazzoni authorized distributor, retailer, dealer or ... -
Page 14: After-Sale Service
Please note here below details for after save service. Refer to warranty certificate for warranty condiftions Dealer /Importer: Name, address, phone SERVICE CENTERS Name Phone MANUFACTURER: BERTAZZONI SPA VIA PALAZZINA, 8 – 42016 – GUASTALLA (REGGIO E.) ITALY Tel. 0522/226411 – telefax 0522/226440 – http://www.bertazzoni.com...
