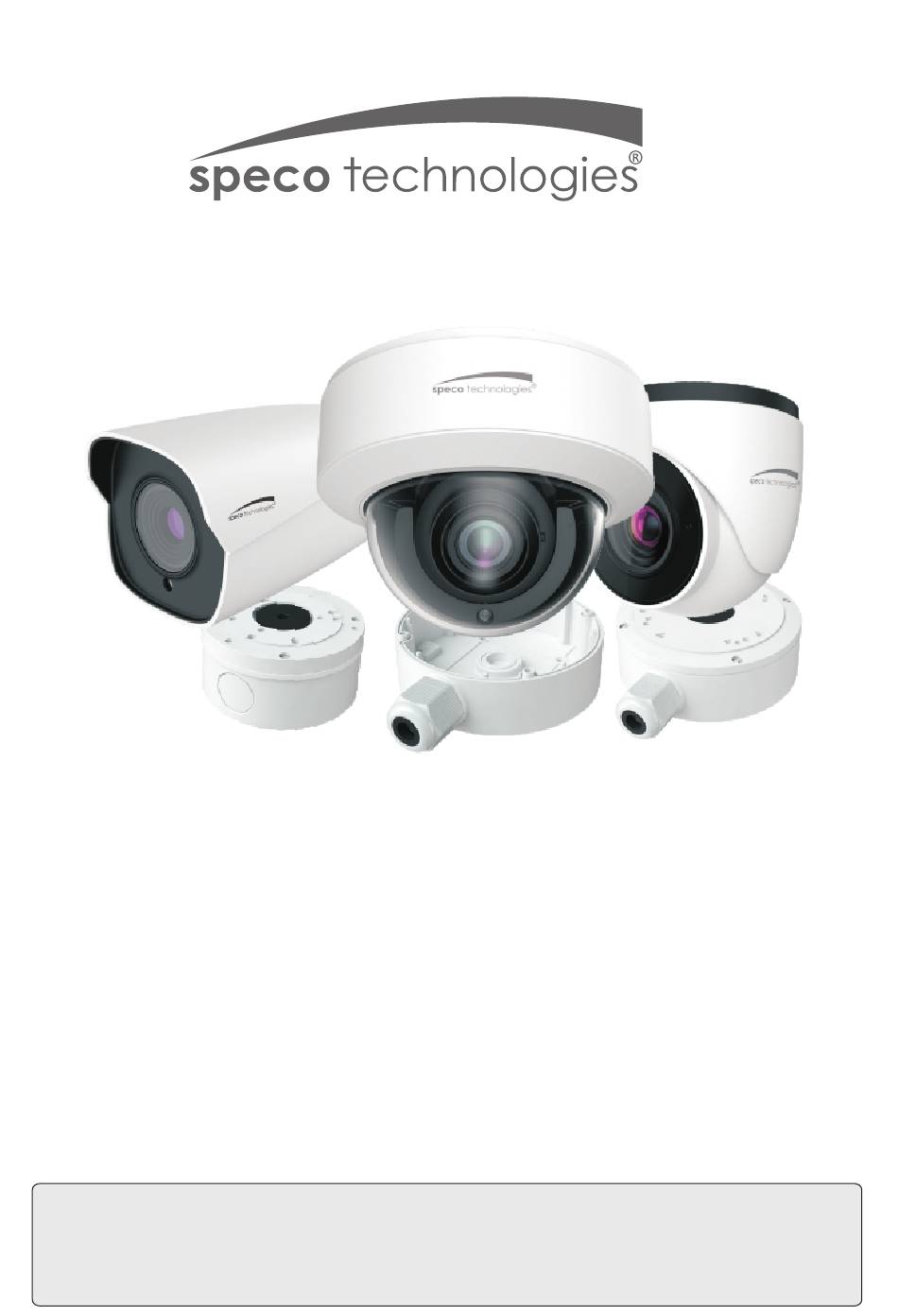

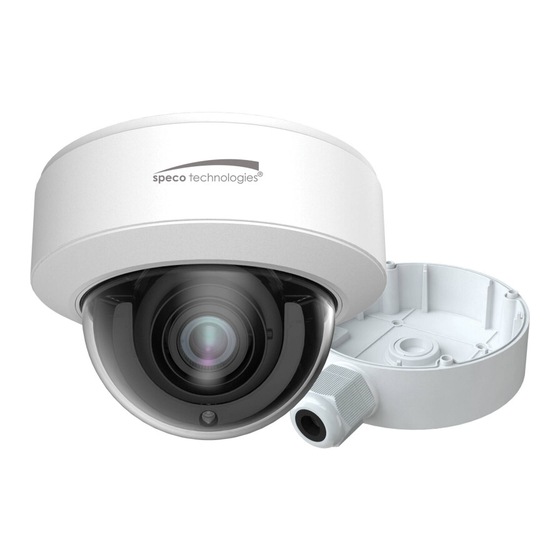

- Page 1 H8D7M/H8B7M/H8T7M User Manual Thank you for purchasing our product. Speco Technologies is constantly developing and improving products. We reserve the right to modify product design and specifications without notice and without incurring any obligation.
- Page 2 ■ If the product does not work properly, please contact the dealer or where the product was purchased. Speco Technologies is not responsible for any problems caused by improper operation or repair. ■ Keep away from liquid while in use.
- Page 3 ● Backlight Compensation (BLC) When the back of the captured object is too much bright, you can set BLC for the captured object to make it clearer. Cables Video Output Video Switch Cable Power Cable Video Switch: Four video output modes can be optional--AHD, TVI, CVI and CVBS (a) remove the cover of the video switch cable;...
- Page 4 360° Pan 90° Tilt ►Mounting for H8D7M Attach the drill template to the place where you want to fix the camera and then drill the screw holes and the cable hole on the wall according to the drill template. 2. Rotate the trim ring anticlockwise to remove it from the camera.
- Page 5 3. Loosen the screws to open the lower dome. Then route and connect the cables. 4. Secure the camera to the wall with screws provided as shown below. Rubber plug * Install it when routing the cables through the ceiling. Lower dome 5.
- Page 6 ►Mounting for H8T7M 1. Loosen the fixed screw to disassemble the camera. Fixed Screw Mounting Base Enclosure Dome Drill the screw holes and the cable hole on the wall according to the drill template. 3 Route and connect the cables. Then secure the mounting base to the ceiling or wall with the screws provided. (mm) 56.1 Ø107.7...
- Page 7 Specifications Models H8B7M H8T7M H8D7M Specifications Camera Image Sensor 1/2.5" CM S Resolution Image size 3840×2160 Video Output AHD/TVI/CVI/CVBS (*camera comes defaulted to HD-TVI) Image System PAL/NTSC Electronic Shutter Auto; 1/50s~1/100000s(PAL);1/60s~1/100000s (NTSC) IR Distance (feet) 98~164 98~164 65~98 Frame Rate 15fps Min.
- Page 8 Model: H8B7M/H8D7M/H8T7M Federal Communications Commission (FCC) Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
