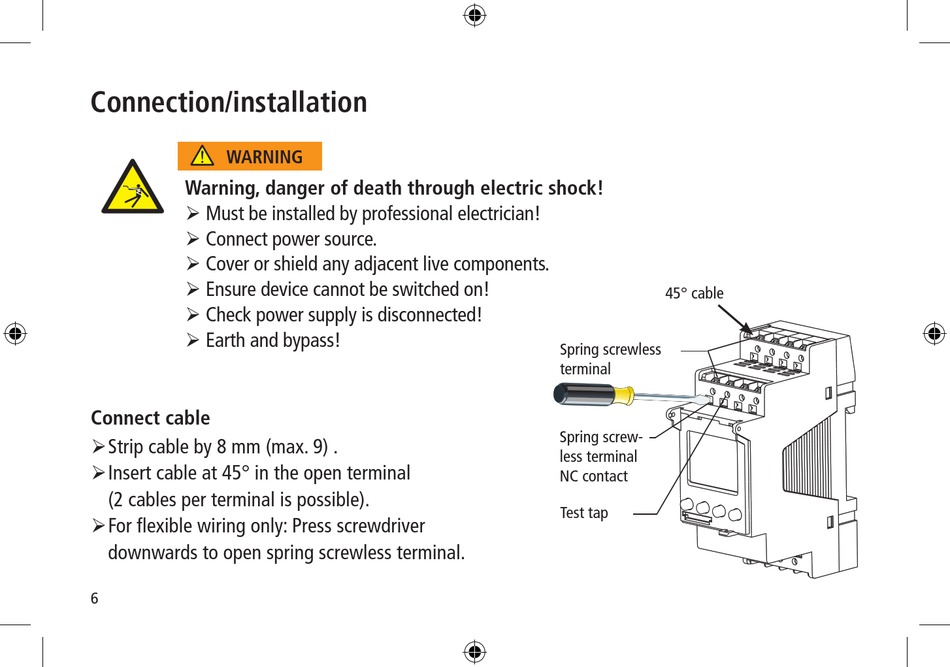

Connection/installation

WARNING
Warning, danger of death through electric shock!
 Must be installed by professional electrician!
 Connect power source.
 Cover or shield any adjacent live components.
 Ensure device cannot be switched on!
 Check power supply is disconnected!
 Earth and bypass!
Connect cable
 Strip cable by 8 mm (max. 9) .
 Insert cable at 45° in the open terminal
(2 cables per terminal is possible).
 For flexible wiring only: Press screwdriver
downwards to open spring screwless terminal.
6
45° cable
Spring screwless
terminal
Spring screw-
less terminal
NC contact
Test tap
