Summary of Contents for Theben TR 635 top2

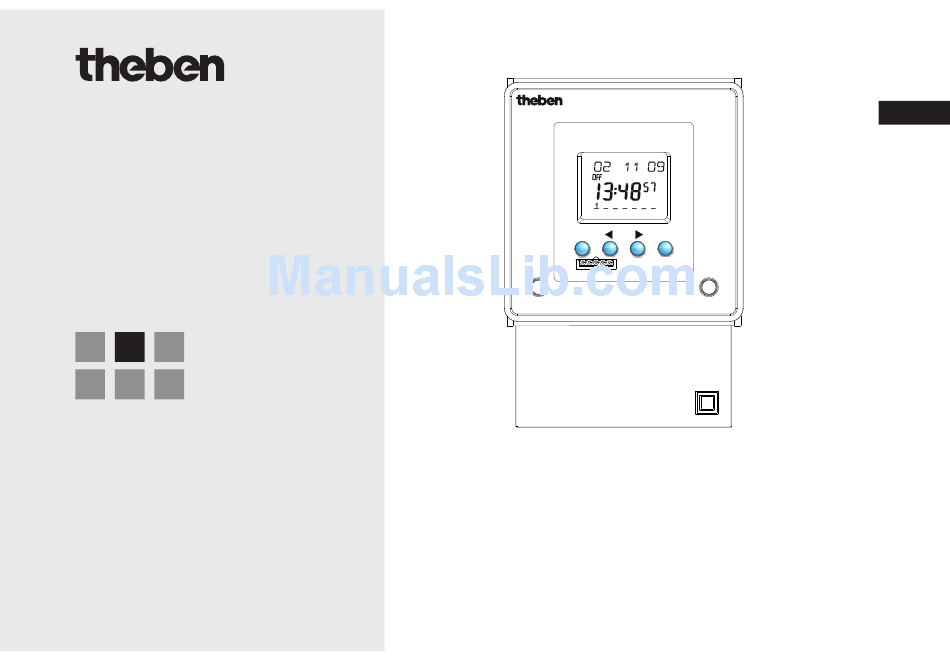

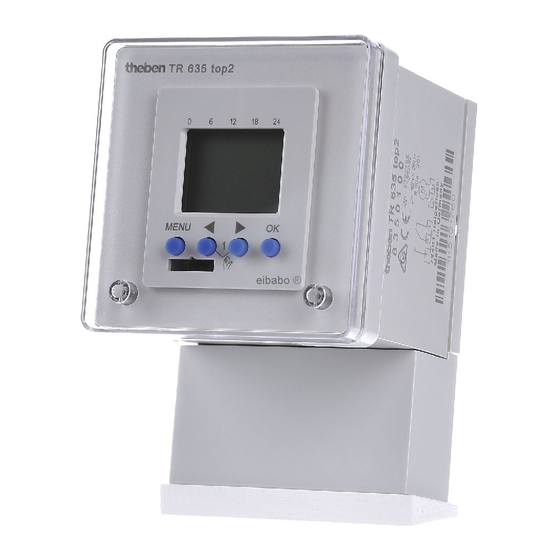

- Page 1 309563 03 TR 635 top2 TR 635 top2 6350100 TR 636 top2 6360100 Installation and MENU operating instructions Digital time switch with weekly program D GB Connection of different external wires is permitted TR 635 top2...
-
Page 2: Table Of Contents
Contents Basic advice Menu item OPTIONS Screen and keys PIN code setting Operating instructions OBELISK top2 memory card Overview of menu selection Service address/Hotline Connection/installation Technical data Initial start-up Reset Menu item PROGRAM Set switching time Change/request switching time Delete switching time Pulse programming Cycle programming Menu item MANUAL... -
Page 3: Basic Advice
Basic safety instructions WARNING Danger of death through electric shock or fire! Installation should only be carried out by a qualified electrician! • The device is intended for wall and front panel installation • Corresponds to type 1 BSTU in accordance with IEC/EN 60730-2-7 • Power reserve (10 years) is reduced if memory card is inserted (in battery operation) Designated use •... -
Page 4: Screen And Keys
Screen display and keys Operating instructions 1. R ead text line Programmed Flashing text/symbol Date display switch times represents query Date display Channel status Days of the week from ON = On E S C 1 to 7 OFF = Off 2. Make a decision Display of active keys with relevant function bbbb YES... -
Page 5: Overview Of Menu Selection
Overview of menu selection MENU 19 05 11 PROGRAM TIME/DATE MANUAL OPTIONS 9:40 TIME PERMANENT OPERATING HOURS VIEW DATE PERMANENT LCD-ILLU- MINATION CHANGE SUMMER-- MANUAL ON LANGUAGE WINTER DELETE DAY OF THE TIMER WEEK DATE HOLIDAY FACTORY- FORMAT SETTINGS TIME RANDOM... -
Page 6: Connection/Installation
Must be installed by qualified electrician! 1 2 3 Disconnect power source. TR 635 top2 Cover or shield any adjacent live components. Ensure device cannot be switched on! Check power supply is disconnected. Earth and bypass. - Page 7 Installation Distributor installation (wall) – for installation on DIN top hat rails (in accordance with EN 60715) with accessories (9070071) 907 0 071 Front panel installation – for installation in front frame and transparent cover (in accordance with DIN 43700)
-
Page 8: Initial Start-Up
Initial start-up DEUTSCH RETAIN DELETE PROGRAMS PROGRAMS Set date, time and summer/ FORME DATE winter time rule YEAR MONTH Press required key and display follows on screen (see figure). FORM TIME SU-WI GB/ 19 05 11 HOUR IRL/P 9:40 RESET SU-WI FIN/ MINUTE GR/TR SU--WI SU-WI CDN... - Page 9 PROGRAM Program switching time Example: Switch on sports hall lighting from Mon–Fri, 7:30 to 12:00 hrs Press MENU. PROGRAM is displayed. Confirm by pressing OK. NEW is displayed. Confirm by pressing OK. SWITCHING TIME is displayed. Confirm by pressing OK. Select ON (for switch-on times). Confirm by pressing OK. The display shows HOUR. ...
-
Page 10: Menu Item Program
MENU PROGRAM SWITCH TIME PULSE CYCLE HOUR ON 7.30 MINUTE MONDAY TUESDAY WEDNESDAY COPY SAVE TUESDAY 84 memory locations are available. SAVE... -
Page 11: Change/Request Switching Time
Request/change/delete switching time Press MENU. PROGRAM is displayed. MENU Confirm by pressing OK. NEW is PROGRAM displayed. CHECK MODIFY DELETE Use to select CHECK. Confirm by pressing OK. SWITCH TIME Confirm SWITCH TIME by pressing OK. MONDAY The first of the entered switching times is ... -
Page 12: Pulse Programming
Pulse time programming Example: Switch on pause signal on Monday 8:05 hrs for 5 sec Press MENU. PROGRAM is displayed. Confirm by pressing OK. NEW is displayed. Confirm by pressing OK. SWITCH TIME is displayed. Select PULSE by pressing Confirm by pressing OK. ON is displayed. Confirm by pressing OK. The display shows HOUR. ... -
Page 13: Cycle Programming
Cycle time programming In addition to switch-on and switch-off times (switching time) and short time pulses (pulse) cycle times (cycle) can also be programmed. The pulse length (+ pulse pause) is limited to 17 hrs, 59 min, 59 sec • Cycle times refers to cyclically repetitive time functions such as fan controls, urinal rinses etc. Example: Switch on water rinsing Monday from 8:00 to 20:30 hrs every 15 min for 20 sec (8:00 –8:00... -
Page 14: Manual And Permanent Switching
The PIN code can be set using the OPTIONS Manual and permanent switching can be set menu item (see fig.). If you forget the PIN call using the menu in MANUAL or (in the auto- the Theben hotline. matic screen) by key combination (see fig.). OPTIONS ... -
Page 15: Obelisk Top2 Memory Card
OBELISK top2 memory card Serviceadresse/Hotline Use memory card Service address Theben AG Insert memory card in the time switch. Hohenbergstr. 32 72401 Haigerloch Read / read out saved switching times and GERMANY device settings in the time switch or start Telephone +49 (0) 74 74 6 92 0 Obelisk program. -
Page 16: Technical Data
• Frequency: 50–60 Hz (VVG) series corrected 1000 VA parallel correction 400 VA (42µF) • Power consumption: 0,8 W (TR 635 top2), • Compact fluorescent lamps: 90 W 0,9 W (TR 636 top2) • LED lamps: <2 W output, max. connec- •...
