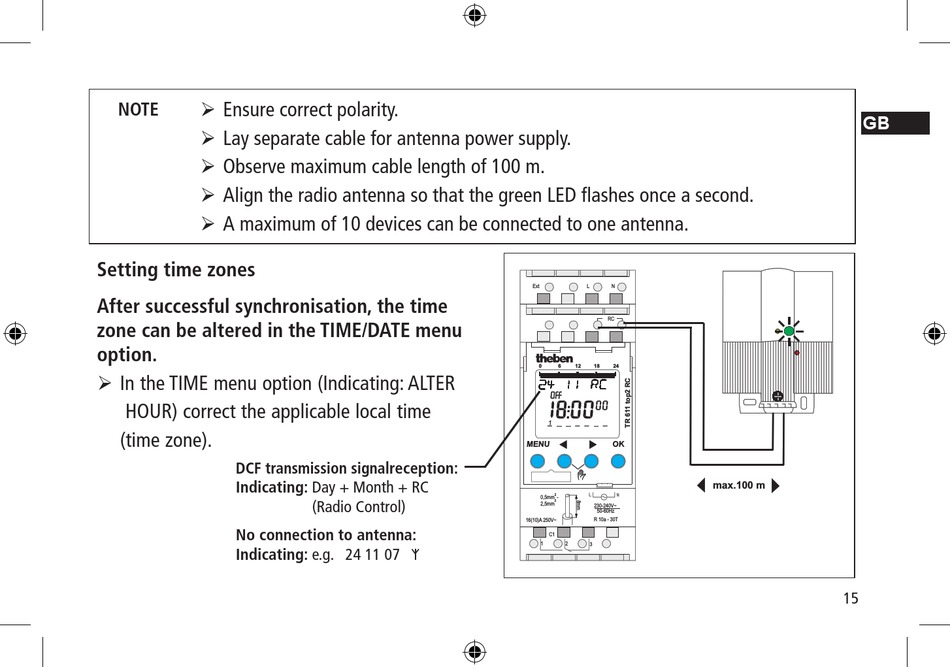

Theben TERMINA TR 611 top2 RC Installation And Operating Instructions Manual page 15

NOTE  Ensure correct polarity.
 Lay separate cable for antenna power supply.
 Observe maximum cable length of 100 m.
 Align the radio antenna so that the green LED flashes once a second.
 A maximum of 10 devices can be connected to one antenna.
Setting time zones
After successful synchronisation, the time
zone can be altered in the TIME/DATE menu
option.
 In the TIME menu option (Indicating: ALTER
HOUR) correct the applicable local time
(time zone).
DCF transmission signalreception:
Indicating: Day + Month + RC
No connection to antenna:
Indicating: e.g. 24 11 07
(Radio Control)
Ext L N
RC
theben
0 6 12 18 24
MENU OK
2
0,5mm -
2
2,5mm
230-240V~
50-60Hz
16(10)A 250V~ R 10a - 30T
C1
1 2 3
GB
max.100 m
