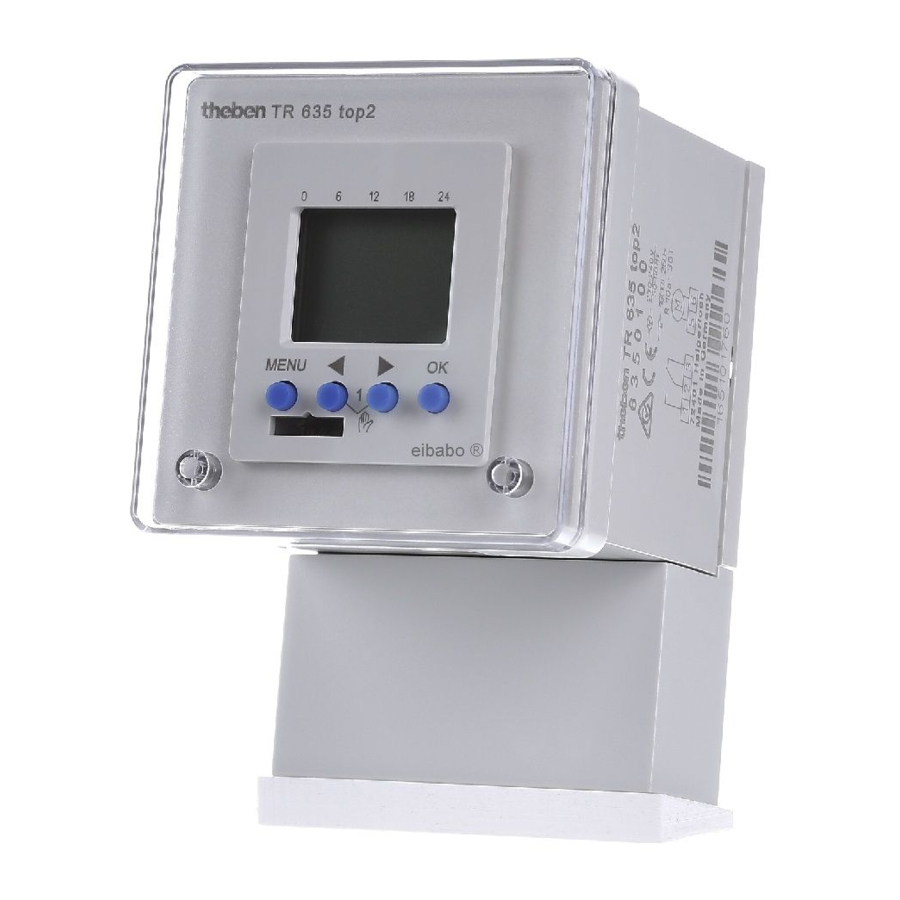

Theben TR 635 top2, TR 636 top2 (6350100, 6360100) - TR Series Time Switch Manual

Screen display and keys

Operating instructions

1. Read text line
   Flashing text/symbol represents query
2. Make a decision
   • YES
     Confirmation - Press OK
   • NO
     Alter/change - Press

Overview of menu selection

Connection

Warning, danger of death through electric shock!

• Must be installed by qualified electrician! - Disconnect power source. - Cover or shield any adjacent live components.
• Ensure device cannot be switched on!
• Check power supply is disconnected.
• Earth and bypass.

Installation

Distributor installation (wall)

• for installation on DIN top hat rails (in accordance with EN 60715) with accessories (9070071)


Front panel installation

• for installation in front frame and transparent cover (in accordance with DIN 43700)


Initial start-up

Set date, time and summer/winter time rule

• Press required key and display follows on screen (see figure):


RESET

• Press the 4 buttons simultaneously.

You can choose between RETAIN PROGRAMS and DELETE PROGRAMS.

PROGRAM

Program switching time

Example: Switch on sports hall lighting from Mon–Fri, 7:30 to 12:00 hrs

• Press MENU. PROGRAM is displayed.
• Confirm by pressing OK. NEW is displayed.
• Confirm by pressing OK. SWITCHING TIME is displayed.
• Confirm by pressing OK. Select ON (for switch-on times).
• Confirm by pressing OK. The display shows HOUR.
• Use the+ or – keys to enter hour, minute, (07:30) and confirm by pressing OK.
  MONDAY is displayed.
• Confirm by pressing OK. COPY is displayed.
• Confirm by pressing OK. ADD TUESDAY is displayed.
• Confirm by pressing OK and also confirm the days Wed, Thurs, Fri by pressing OK.
• Continue with to SAVE is displayed. Confirm by pressing OK.

Repeat all steps for the switch-off time however instead of selecting ON with select OFF and enter 12:00 for hour and minute.

Request/change/delete switching time

• Press MENU. PROGRAM is displayed.
• Confirm by pressing OK. NEW is displayed.
• Use to select CHECK.
• Confirm by pressing OK.
• Confirm SWITCH TIME by pressing OK. The first of the entered switching times is displayed.
• Confirm by pressing OK. NEXT is displayed.


Change or delete individual switching times

• Press to select MODIFY (or DELETE).
• Confirm MODIFY HOUR by pressing OK.
• Confirm by pressing OK. The first of the entered switching times is displayed.
• Use the + or – keys to enter hour and minute and confirm by pressing OK.

Pulse time programming

Example: Switch on pause signal on Monday 8:05 hrs for 5 sec

• Press MENU. PROGRAM is displayed.
• Confirm by pressing OK. NEW is displayed.
• Confirm by pressing OK. SWITCH TIME is displayed.
• Select PULSE by pressing .
• Confirm by pressing OK. ON is displayed.
• Confirm by pressing OK. The display shows HOUR.
• Use the + or – keys to enter hour, minute, second (8:05) and confirm by pressing OK.
  PULSE LENGTH is displayed.
• Use the + or – keys to enter the duration of the pulse in minutes and seconds (5 sec).
  MONDAY is displayed.
• Confirm by pressing OK. COPY is displayed.
• Press to select SAVE.
• Confirm by pressing OK.

Cycle time programming

In addition to switch-on and switch-off times (switching time) and short time pulses (pulse) cycle times (cycle) can also be programmed. The pulse length (+ pulse pause) is limited to 17 hrs, 59 min, 59 sec

• Cycle times refers to cyclically repetitive time functions such as fan controls, urinal rinses etc.

Example: Switch on water rinsing Monday from 8:00 to 20:30 hrs every 15 min for 20 sec (8:00⁰⁰–8:00²⁰ On; 8:15⁰⁰–8:15²⁰ On; 8:30⁰⁰–8:30²⁰ On etc.)

Cycle programming

• Start cycle: Monday 8:00 hrs
• Pulse length: 20 sec
• Pause length: 14 min 40 sec
• Cycle end: Monday 20:30:00 hrs

Observe the number of maximum electrical switching cycles when using the ‚cycle' function.

MANUAL

Manual and permanent switching

Manual and permanent switching can be set using the menu in MANUAL or (in the automatic screen) by key combination (see fig.).

Activate manual switching

• Briefly press both keys simultaneously.

Activate permanent switching

• Simultaneously press both keys for 2 seconds.

Cancelling manual/permanent switching

• Press both keys simultaneously.

OPTIONS

Enter PIN code

The PIN code can be set using the OPTIONS menu item (see fig.).

If you forget the PIN call the Theben hotline.

OBELISK top2 memory card

Use memory card

• Insert memory card in the time switch.
• Read / read out saved switching times and device settings in the time switch or start Obelisk program.
• Remove memory card OBELISK top2 (No. 9070404) after copying.
• Avoid mechanical stress or dirtying with other storage/transport methods.

Technical data

• Operating voltage: 230 –240 V~, +10%/-15 %
• Frequency: 50–60 Hz
• Power consumption:
  0,8 W (TR 635 top2),
  0,9 W (TR 636 top2)
• Standby:
  0,9 W (TR 635 top2),
  1,1 W (TR 636 top2)
• Switch output: switching of choice of external wires is permitted
• Contact: two way switch
• Gap: <3 mm (µ)
• Contact material: AgSnO
• Max switching capacity:
  TR 635 top2:
  16 A, 250 V~, cos ϕ = 1
  10 A, 250 V~, cos ϕ = 0,6
  TR 636 top2:
  6 A, 250 V~, cos ϕ = 1
  6 A, 250 V~, cos ϕ = 0,6
• Min. switching capacity:
  10 mA/230 V AC
  100 mA/12 V AC/DC
• Incandescent lamp load + Halogen lamp load:
  2300 W (TR 635 top2)
• 1200 W (TR 636 top2)
• Fluorescent lamp load: uncorrected + (VVG)
  series corrected 1000 VA
  parallel correction 400 VA (42µF)
• Compact fluorescent lamps: 90 W
• LED lamps:
  <2 W output, max. connection total of 20 W,
  >2 W < 8 W output, max. connection total of 50 W
• Permissible ambient temperature: –30°C... +55°C
• Protection class: II in accordance with EN 60730-1 subject to designated installation
• Protection rating: IP 20 in accordance with EN 60529
• Time accuracy: ≤ ±0,5 s/day at +20°C
• Power reserve: 10 years (lithium call) at +25°C
• Pollution degree: 2
• Rated impulse withstand voltage: 4 kV
• TR 635 top2: max. switching cycles with 16 A resistive load: 50,000
• TR 636 top2: max. switching cycles with 6 A resistive load: 50,000

Basic safety instructions

Danger of death through electric shock or fire!
Installation should only be carried out by a qualified electrician!

• The device is intended for wall and front panel installation
• Corresponds to type 1 BSTU in accordance with IEC/EN 60730-2-7
• Power reserve (10 years) is reduced if memory card is inserted (in battery operation)

Designated use

• The time switch can be used for lighting, bell systems, ventilation etc.
• Only use in enclosed dry spaces
• Do not use on safety devices, e.g. escape route doors, fire safety equipment etc.

www.theben.de
