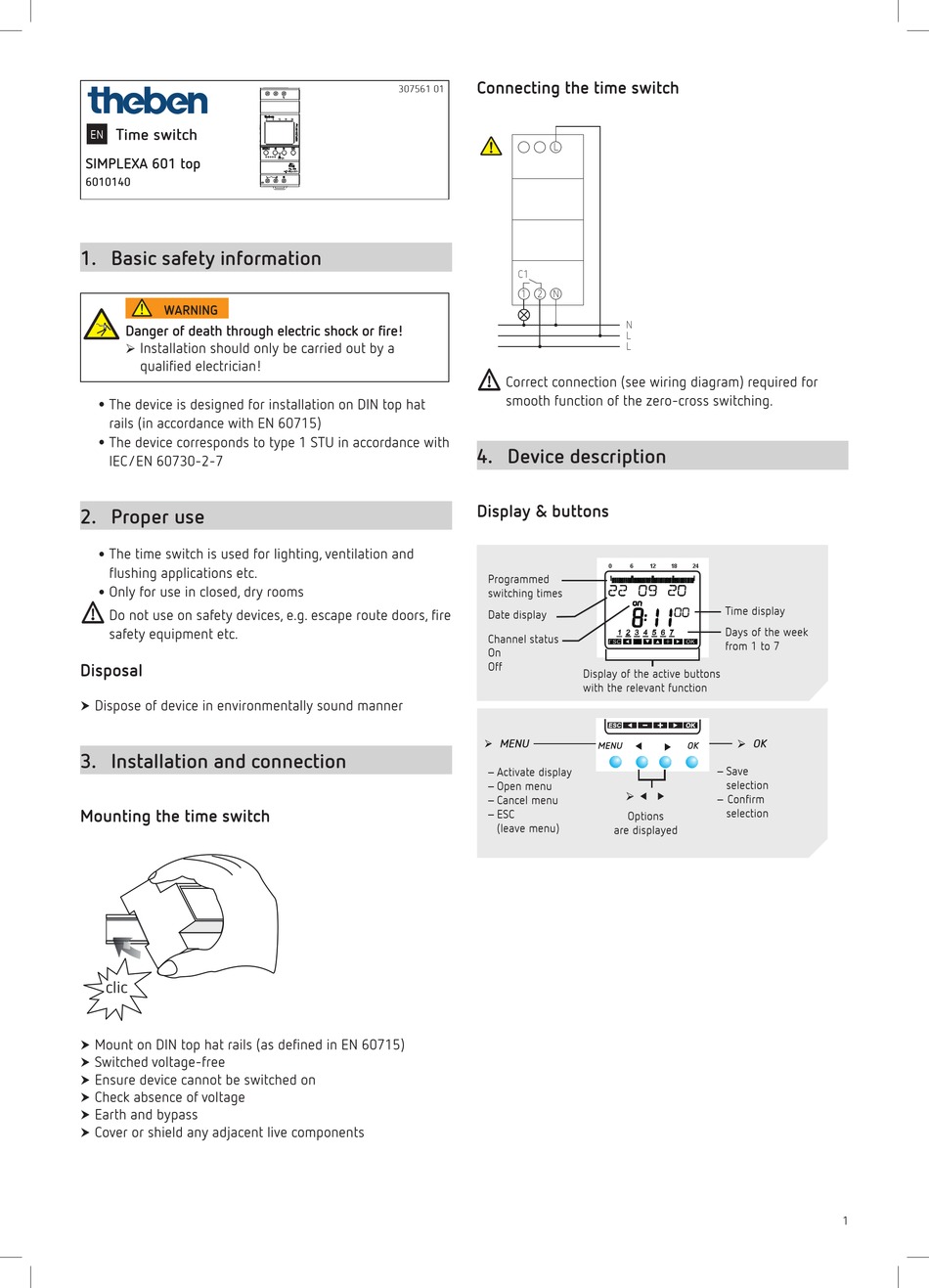

Time switch
EN
SIMPLEXA 601 top
6010140
1. Basic safety information
WARNING
Danger of death through electric shock or fire!
Installation should only be carried out by a
¾
qualified electrician!
•
The device is designed for installation on DIN top hat
rails (in accordance with EN 60715)
•
The device corresponds to type 1 STU in accordance with
IEC/EN 60730-2-7
2. Proper use
•
The time switch is used for lighting, ventilation and
flushing applications etc.
•
Only for use in closed, dry rooms
!
Do not use on safety devices, e.g. escape route doors, fire
safety equipment etc.
Disposal
Dispose of device in environmentally sound manner
†
3. Installation and connection
Mounting the time switch
clic
Mount on DIN top hat rails (as defined in EN 60715)
†
Switched voltage-free
†
Ensure device cannot be switched on
†
Check absence of voltage
†
Earth and bypass
†
Cover or shield any adjacent live components
†
Connecting the time switch
307561 01
L
C1
1 2 N
!
Correct connection (see wiring diagram) required for
smooth function of the zero-cross switching.

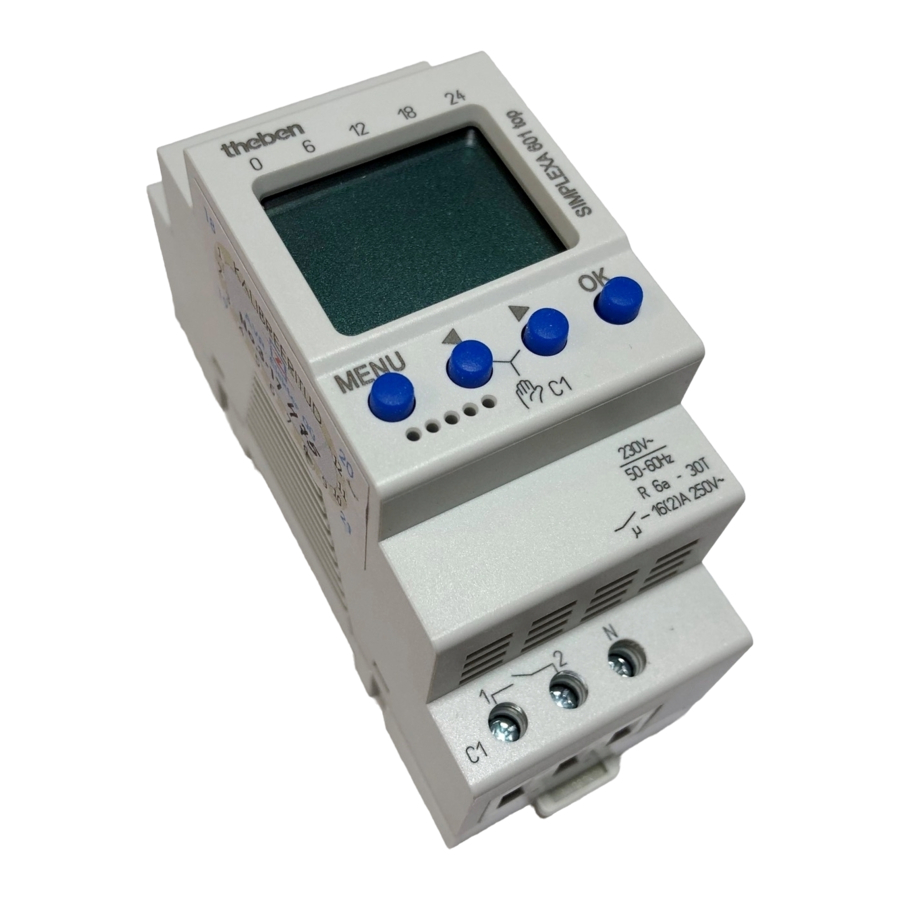

4. Device description
Display & buttons
Programmed
switching times
Date display
Channel status
On
Off
MENU
– Activate display
– Open menu
– Cancel menu
– ESC
(leave menu)
N
L
L
0
6
12
18
24
Time display
Days of the week
from 1 to 7
Display of the active buttons
with the relevant function
OK
MENU
OK
– Save
selection
¾
– Confirm
selection
Options
are displayed
1
Advertisement
Table of Contents
Related Manuals for Theben SIMPLEXA 601 top
Summary of Contents for Theben SIMPLEXA 601 top
- Page 1 Connecting the time switch 307561 01 Time switch SIMPLEXA 601 top 6010140 1. Basic safety information 1 2 N WARNING Danger of death through electric shock or fire! Installation should only be carried out by a ¾ qualified electrician! Correct connection (see wiring diagram) required for •...
- Page 2 5. Settings and functions Operating instructions 1. Read text line Set switching time text/symbol represents query MENU PROGRAM MEM FREE CHECK 2. Make a decision MODIFY HOUR DELETE MINUTE MONDAY same switching COPY SAVE Modify/ time for Confirmation several days = Change TUESDAY block...
- Page 3 The PIN code is set in OPTIONS via the menu. Operating temperature: – 30 °C … + 55 °C L If you have forgotten your PIN, call the Theben Hotline. Power reserve: 6 years Time accuracy (typical): ±...
- Page 4 7. Contact Theben AG Hohenbergstr. 32 72401 Haigerloch GERMANY Tel. +49 7474 692-0 Fax +49 7474 692-150 Hotline Tel. +49 7474 692-369 hotline@theben.de Addresses, telephone numbers etc. www.theben.de...
-
Page 5: Table Of Contents
307561 01 Time switch SIMPLEXA 601 top 6010140 1. Basic safety information 2. Proper use Disposal 3. Installation and connection 5 Mounting the time switch Connecting the cable Disconnecting the cable 4. Device description Display & buttons Operating instructions Overview of navigation menu 10... - Page 6 Initial operation 5. Settings and functions Set switching time Change switching times Delete switching program Setting holiday function Activating PIN code Setting manual or permanent switching Hour counter Using Bluetooth OBELISK top3 18 Connect time switch, Bluetooth OBELISK top3 and smartphone (via app) Resetting the time switch...
- Page 7 6. Technical data 7. Contact...
-
Page 8: Basic Safety Information
1. Basic safety information WARNING Danger of death through electric shock or fire! Installation should only be carried out by a ¾ qualified electrician! • The device is designed for installation on DIN top hat rails (in accordance with EN 60715) •... -
Page 9: Installation And Connection
3. Installation and connection Mounting the time switch clic Mount on DIN top hat rails (as defined in EN 60715) † Switched voltage-free † Ensure device cannot be switched on † Check absence of voltage † Earth and bypass † Cover or shield any adjacent live components †... - Page 10 Connecting the time switch 1 2 N Correct connection (see wiring diagram) required for smooth function of the zero-cross switching.
-
Page 11: Device Description
4. Device description Display & buttons Programmed switching times Time display Date display Days of the week Channel status from 1 to 7 Display of the active buttons with the relevant function MENU MENU – Save –... - Page 12 1. Read text line text/symbol represents query 2. Make a decision Modify/ Confirmation Change Press Press...
-
Page 13: Overview Of Navigation Menu
Overview of navigation menu MENU PROGRAM TIME/DATE OPTIONS TIME LANGUAGE SET DATE CHECK FACTORY SU--WI MODIFY SETTINGS WEEK DELETE INFO FORM DATE FORM TIME Initial operation L The device must be connected to the power supply so that the time and date can be set. - Page 14 ENGLISH FORM DATE YEAR ESPANOL ITALIANO MONTH NORSK SUOMI FORM TIME SVENSKA русский HOUR HEBREW MINUTE DEUTSCH SU-WI EUROPE 24 02 20 9:40 Set language, date, time as well as summer/winter time † (SU-WI) Press any button and display follows on screen (see figure) †...
-
Page 15: Settings And Functions
5. Settings and functions Set switching time MENU PROGRAM MEM FREE CHECK MODIFY HOUR DELETE MINUTE MONDAY same switching COPY SAVE time for several days = TUESDAY block SAVE Switching time for one day L A switching time always consists of a start time and an end time L There are 42 memory cells available Example: Switch on sports hall lighting from Mon–Fri, 7:30 to... -
Page 16: Change Switching Times
Press MENU † Select PROGRAM and press OK to confirm † Select NEW and press OK to confirm † Select ON (for turn-on time) or OFF (for turn-off time), † confirm with OK Set required turn-on time (Mo–Fr, 7:30), confirm with OK †... -
Page 17: Delete Switching Program
L You can either change or delete a block, i.e. a switching time copied for several days (e.g. Mon-Fri) or a single switching time Change individual switching times Press MENU † Select PROGRAM and press OK to confirm † Select MODIFY, confirm by pressing OK †... -
Page 18: Activating Pin Code
With u DELETE MONDAY etc. individual days can also be † cleared. Activating PIN code The PIN code is set in OPTIONS via the menu. L If you have forgotten your PIN, call the Theben Hotline. L Have the serial number ready. MENU OPTIONS LANGUAGE... -
Page 19: Setting Manual Or Permanent Switching
Setting manual or permanent switching Manual or permanent switching can be set via the automatic screen by button combination (see picture). • Manual control: Reversing the channel status to the next automatic or programmed switching. • Permanent switching: As long as a permanent switching (on or off) is activated, the programmed switching times are ineffective Activating manual control Briefly press both buttons simultaneously... - Page 20 6. Technical data Operating voltage: 230 V AC +10 % / –15 % Frequency: 50–60 Hz Standby: 0,54 W Max switching capacity: 16 A (at 250 V, cos ϕ = 1) Switching capacity: 2 A (at 250 V, cos ϕ = 0,6) Min.
- Page 21 LED lamps (> 2 W): 300 W L The time switch display is only fully functional at tempera- tures from +5 °C ... +55 °C. 7. Contact Theben AG Hohenbergstr. 32 72401 Haigerloch GERMANY Tel. +49 7474 692-0 Fax +49 7474 692-150 Hotline Tel.
