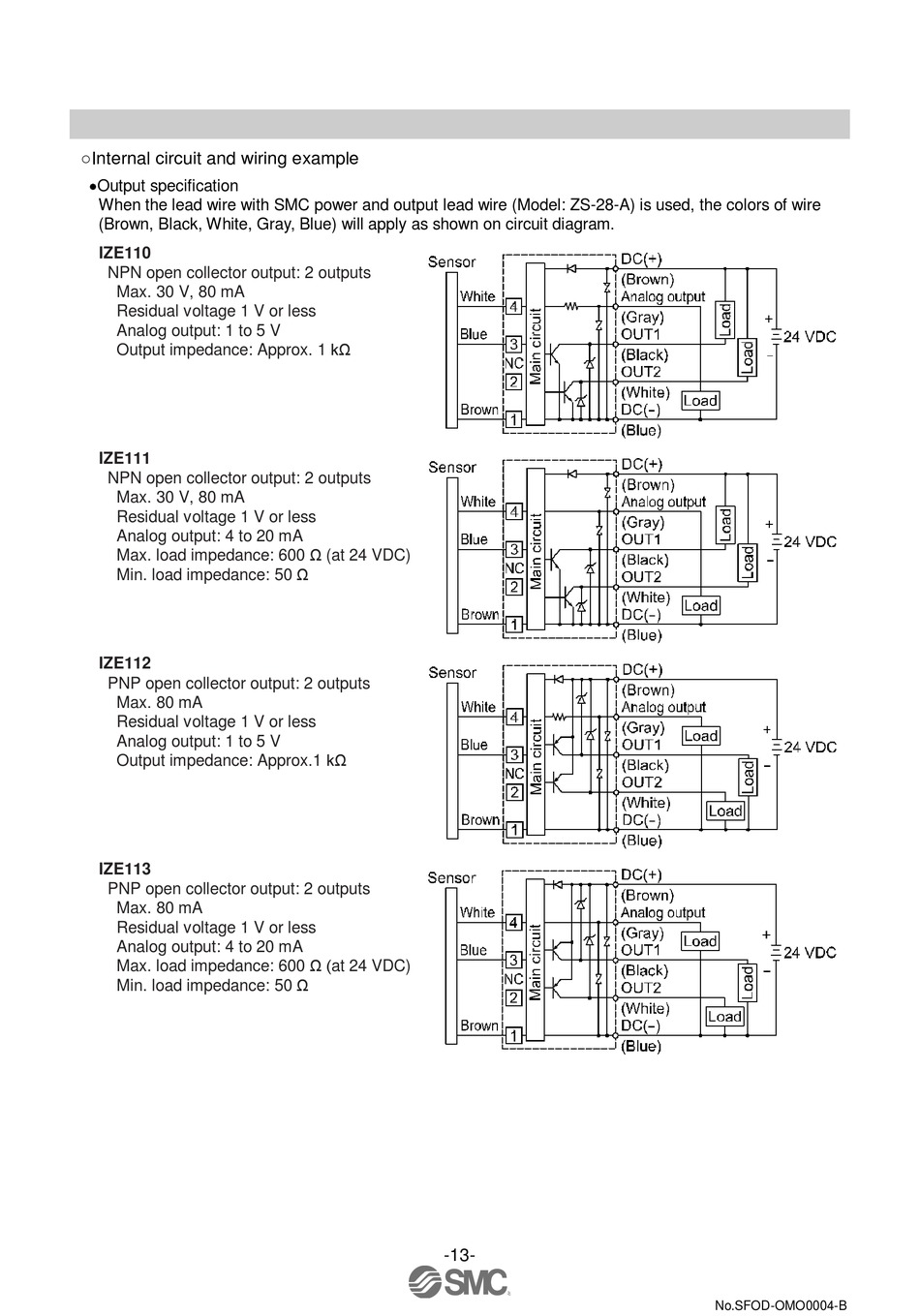

○Internal circuit and wiring example
Output specification
When the lead wire with SMC power and output lead wire (Model: ZS-28-A) is used, the colors of wire
(Brown, Black, White, Gray, Blue) will apply as shown on circuit diagram.
IZE110
NPN open collector output: 2 outputs
Max. 30 V, 80 mA
Residual voltage 1 V or less
Analog output: 1 to 5 V
Output impedance: Approx. 1 kΩ
IZE111
NPN open collector output: 2 outputs
Max. 30 V, 80 mA
Residual voltage 1 V or less
Analog output: 4 to 20 mA
Max. load impedance: 600 Ω (at 24 VDC)
Min. load impedance: 50 Ω
IZE112
PNP open collector output: 2 outputs
Max. 80 mA
Residual voltage 1 V or less
Analog output: 1 to 5 V
Output impedance: Approx.1 kΩ
IZE113
PNP open collector output: 2 outputs
Max. 80 mA
Residual voltage 1 V or less
Analog output: 4 to 20 mA
Max. load impedance: 600 Ω (at 24 VDC)
Min. load impedance: 50 Ω
