Summary of Contents for Forever Redwood Andrea's Cupola
Page 1

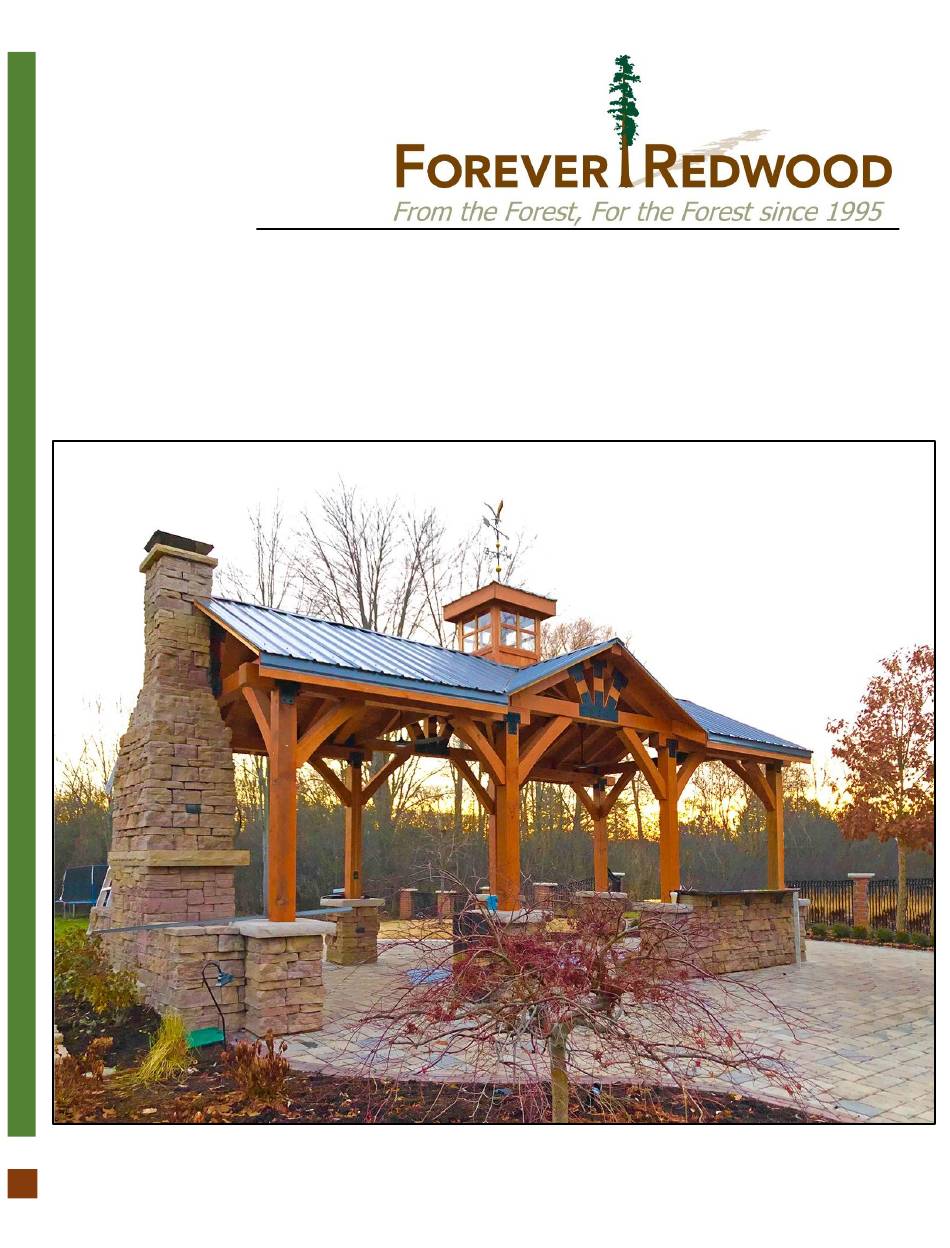

866.332.2403 (TOLL FREE) (707) 640.29.05 (Option 4) Direct Line for the Design Department; 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE ANDREA’S CUPOLA PAVILION...
Page 2
NOTE: Assembly is best done by two people. To assemble your product, you need a Hammer, a Ratch, a Drill, and an impact drill. Required Tools (Are not included in your hardware packing). PROCESS TO INSTALL THE HARDWARE PROVIDED. To install the bolts. Insert the carriage bolts into the holes and lightly tap with a hammer until the square neck fit in the wood piece and the bolt head must flush with the wood piece.
Page 3
To install the lag bolts. Place the washers in their lag bolts. After that, insert the lag bolts into the holes and carefully tighten it using a ratch with the necessary socket. Use the washers only for the Wood Pieces. To install the deck screws.
Page 4
CONTENT OF BOXES Qty. Description Drawings Posts Supports Main Knee Braces Roof Truss -A (There are unarmed) Tie Beam King Posts Struts Principal Rafters Secondary Knee Braces Roof Truss -B (There are unarmed) Collar Tie King Post Principal Rafters Ridge Beams Rafters Andrea’s Cupola Pavilion www.ForeverRedwood.com...
Page 5
CONTENT OF BOXES Qty. Description Drawings Bridge Beams Bridge Rafters Cupola Supports Diagonal Beams Roof Truss -C (There are unarmed) Tie Beams 13.1 King Posts 13.2 Struts 13.3 Principal Rafter 13.4 Short Rafters -B Roof Boards Roof Trims Fascias Andrea’s Cupola Pavilion www.ForeverRedwood.com...
Page 6
CONTENT OF BOXES Drawing Qty. Description Cupola (There are unarmed) Cupola Base 18.1 Window Frame 18.2 Windows 18.3 Rafters 18.4 Central Frame 18.5 Roof Board 18.6 Fascias 18.7 Boots Anchor Bases T -Plaques Metal Plaque -A Metal Plaque -B Note: Part numbers in the Content of Boxes Table are for reference only. These do not match to the numbers marked on the parts sent.
Page 7
CONTENT OF BOXES Description Drawings Qty. Metal Plaque -C Metal Plaque -D Plaque in Floor Metal Plaques -E Metal Plaque -F Metal Plaque -G Metal Plaque -H Metal Plaque -I Metal Plaque -J Plaque Simpson Note: Part numbers in the Content of Boxes Table are for reference only. These do not match to the numbers marked on the parts sent.
HARDWARE LIST Qty. Desciption Drawing 51/6” x 3” Lag Bolts 3/8” x 3 ½” Lag Bolts 3/8” x 12” Lag Bolts 3/8” x 10” Lag Bolts 3/8” x 6” Lag Bolts 3/8” x 4 ½” Lag Bolts 3/8” x 3” Lag Bolts 3/8”...
Page 9
HARDWARE LIST Qty. Desciption Drawing 3” Deck Screws 5” Deck Screws 6” Deck Screws 2” Deck Screws 2680 1 ¼” Deck Screws 4” Deck Screws 3 ½” Deck Screws 2 ½” Deck Screws Note: Dimensions of your hardware will vary depending on size. Andrea’s Cupola Pavilion www.ForeverRedwood.com...
Page 10
DESCRIPTION Posts Single Supports Main Knee Braces Roof Truss -A Secondary Knee Braces Roof Truss -B Ridge Beams Rafters Bridge Beam Bridge Rafters Support Cupola Diagonal Beams Roof Truss -C Short Rafters -B Roof Boards Roof Trims Fascias Cupola Boots Anchor Bases T -Plaques Metal Plaque -A...
Page 11
DESCRIPTION Metal Plaque -E Metal Plaque -F Metal Plaque -G Metal Plaque -H Metal Plaque -I Metal Plaque -J Plaque Simpson Note: Part numbers in the Content of Boxes Table are for reference only. These do not match to the numbers marked on the parts sent. Andrea’s Cupola Pavilion www.ForeverRedwood.com...
Page 12
Note: Part numbers in the Drawing are for reference only. These do not match to the numbers marked on the parts sent. Andrea’s Cupola Pavilion www.ForeverRedwood.com...
Page 13
NOTE: In order to know where the post needs to be placed, check the numbers on them. If the post is not marked, then place the single Supports on the ground to locate the markings for each post position and clearly set your bearings. (“Don´t attach yet, only place them on the ground to begin with”).
Page 14
Step 3: Attach the main knee braces (3) to the supports (2) with 3/8” x 18” bolts (BL3). After that use 3/8” x 14” bolts (BL2) to the posts (1). Check the marked on each main knee brace and place as drawings shown. Step 4: Attach the double main knee brace (3) to the supports (2) and to the posts (1) with 3/8”...
Page 15
Step 5: Attach the metal bases -A & C (22,24) to the supports (2) with 3/8”x 3 ½” lag bolts (LB2). Step 6: Attach the metal bases -B (23) to the supports (2) with 3/8”x 3 ½” lag bolts (LB2). Andrea’s Cupola Pavilion www.ForeverRedwood.com...
Page 16
Step 7: Attach the Plaques in the Flower (26) to the tie beam with 3/8” x 8” bolts (BL1) and 3/8” x 3 ½” lag bolts (LB2). Step 8: Attach the king posts (4.2) and struts (4.3) to the tie beam (4.1) with plaque in the floor (26) with 3/8” x 8” bolts (BL1) and 3/8”...
Page 17
Step 9: Use 3/8” x 6” lag bolts (LB5) to attach the principal rafter truss (4.4) to the king post (4.2) and to the tie beam (4.1) with 3/8” x 12” lag bolts (LB3) and 3/8” x 10” lag bolts (LB4) as shown below. Check the marked on each principal rafter truss and place as drawings shown.
Page 18
Step 11: Attach the T -plaque (21) to the struts (4.3) and principal truss (4.4) with 3/8”x 3 ½” lag bolts (LB2) and 3/8” x 8” bolts (BL1). Step 12: Attach the metal plaque -G (29) to the roof trusses -A & B (4,6) with 3/8” x 8” bolts (BL1) and 3/8” x 3 ½” lag bolts (LB2).
Page 19
Step 13: Attach the roof truss -A (4) to the supports (2) with metal plaque -A (22) and 3/8” x 8 ½” bolts (BL5) as shown below. Check the marked on each roof truss -A and place as drawings shown. Note: repeat this step 1 time.
Page 20
Step 15: Attach the collar tie to (6.1) the king posts (6.2) with 3/8” x 10” lag bolts (LB4). Check the marked on each collar tie and place as drawings shown. Step 16: Attach the principal rafter truss (6.3) to the king posts (6.2) with 3/8” x 6” lag bolts (LB5) and to the collar tie (6.1) with 3/8”...
Page 21
Step 17: Attach the metal bases -D (25) to the collar tie (6.1) and principal roof truss (6.3) with 3/8”x 3 ½” lag bolts (LB2) and 3/8” x 8” bolts (BL1). Step 18: Attach the metal plaque -G (29) to the roof trusses -A & B (4,6) with 3/8” x 8” bolts (BL1) and 3/8” x 3 ½” lag bolts (LB2).
Page 22
Step 19: Attach the metal plaque -F (28) to the roof truss -B (6) with 3/8” x 4 ½” lag bolts (LB6). Step 20: Attach the roof truss -B (6) to the supports (2) with metal plaque -C (24) and 3/8” x 8 ½” bolts (BL5) as show below. Check the marked on each roof truss -B and place as drawings shown Note: repeat this step 1 time.
Page 23
Step 21: Attach the ridge beam (7) to the roof trusses -A (4,6) with metal plaque -E & G (27,29) and 3/8” x 8 ½” bolts (BL5). Check the marked on each ridge beam and place as drawings shown Step 22: Attach the rafter (8) to the metal plaque -B (23) with 5/16” x 2 ½” bolts (BL8) and to the ridge beam (7) with 3” deck screws (DS1) and 5”...
Page 24
Step 23: Attach the beam bridge (9) to the roof trusses -B (6) with metal plaque -F (27) and 3/8” x 3” lag bolts (LB7). Check the marked on each beam bridge and place as drawings shown Step 24: Attach the bridge rafter (10) to the beam bridge (9) with 3/8” x 6” lag bolts (LB5). After that use 3” & 6” deck screws (DS1, DS2) to attach the bridge rafter between them.
Page 25
Step 25: Attach the metal plaque -H (30) to the bridge rafters (10) with 5/16” x 3 ½” bolts (BL9) with washer and nuts. Step 26: Attach the ridge beam (7) to the roof trusses -B (6) with metal plaque -H (30) and 3/8” x 8 ½” bolts (BL5). Check the marked on each ridge beam and place as drawings shown Andrea’s Cupola Pavilion www.ForeverRedwood.com...
Page 26
Step 27: Attach the rest bridge rafter (10) to the beam bridge (9) with 3” deck screws (DS1) and to the ridge beam (7) with 5” deck screws (DS2). Check the marked on each bridge rafter and place as drawings shown. Step 28: Use 5”...
Page 27
Step 29: Attach the metal plaque -I (31) to the beam bridge (9) with 5/16” x 4 ½” bolts (BL10) and 3/8” x 5” lag bolts (LB5). BL10 Step 30: Attach the metal plaque -J (32) to the supports (2) with 3//8” x 3 ½” lag bolts (LB2). Andrea’s Cupola Pavilion www.ForeverRedwood.com...
Page 28
Step 31: Use 5/16” x 4 ½” bolts (BL10) to attach the metal plaque -I (31) to the diagonal beam (12). After that use 3/8” x 4 ½” lag bolts (LB6) to attach the diagonal beam (12) to the metal plaque -J (32). Check the marked on each ridge beam and place as drawings shown.
Page 29
Step 33: Attach the king posts (13.2) and struts (13.3) to the tie beam (13.1) with plaque in the floor (26) with 3/8” x 8” bolts (BL1) and 3/8” x 3 ½” lag bolts (LB2). Step 34: Use 3/8” x 6” lag bolts (LB5) to attach the principal rafter truss (13.4) to the king post (13.2) and to the tie beam (13.1) with 3/8”...
Page 30
Step 35: Use 3/8” x 10” lag bolts (LB4) to attach the principal rafter truss (13.4) to the struts (13.3). Check the marked on each principal rafter truss and place as drawings shown. Step 36: Attach the T -plaque (21) to the struts (13.3) and principal truss (13.4) with 3/8”x 3 ½” lag bolts (LB2) and 3/8” x 8” bolts (BL1).
Page 31
Step 37: Use 3/8” x 6” lag bolts (LB5) to attach the diagonal beam (12) to the roof truss -C (13). Check the marked on each diagonal beam and place as drawings shown. Step 38: Attach the ridge beam (7) to the roof trusses -C (6) and beam bridge (9) with metal plaque -I (31) and 3/8” x 8 ½” bolts (BL5) with washer and nuts.
Page 32
Step 39: Attach the short rafter (14) to the diagonal beams (12) with 5” deck screws (DS2). After that use 3” deck screws (DS1) to attach the short rafter (14) to the ridge beam (7). Check the marked on each short rafter and place as drawings shown. Step 40: Attach the plaque simpson (32) to the rafters (8,7) and ridge beam () with 1 ¼”...
Page 33
Step 41: Attach the roof boards (15) to the rafters (8) and roof trusses (4,6,13) with 2” deck screws (DS4). Check the marked on each roof board and place as drawings shown. Step 42: Attach the roof trim (16) to the roof boards (15) with 2” deck screws (DS4). Check the marked on each roof trim and place as drawings shown.
Page 34
Step 43: Attach the fascia (17) to the roof boards (15) with 2” deck screws (DS4). Check the marked on each fascia and place as drawings shown. Step 44: Attach the cupola base (18.1) to the roof boards (15) and cupola supports (11) with 4” deck screws (DS6) and 5” deck screws (DS2).
Page 35
Step 45: Attach the window frame (18.2) to the cupola base (18.1) with 4” deck screws (DS6). Check the marked on each window panels and place as drawings shown. Step 46: Use 3 ½” deck screws (DS7) to attach the window frame (18.3) between them. Check the marked on each window panels and place as drawings shown.
Page 36
Step 47: Attach the rafter -A (18.5) to the window frame (18.3) with 4” deck screws (DS6) and to the central frame (18.6). Check the marked on each rafter -A and place as drawings shown. Step 48: Attach the roof boards (18.7) to the rafters (18.5) with 2” deck screws (DS4). Check the marked on each roof board and place as drawings shown.
Page 37
Step 49: Attach the fascia (18.8) to the roof boards (18.7) with 2” deck screws (DS4). Check the marked on each fascia and place as drawings shown. Step 50: Finally attach the boot (19) to the posts (1) with 3” deck screws (DS1). Andrea’s Cupola Pavilion www.ForeverRedwood.com...
Page 38
This completes the Pavilion Assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. Andrea’s Cupola Pavilion www.ForeverRedwood.com...
