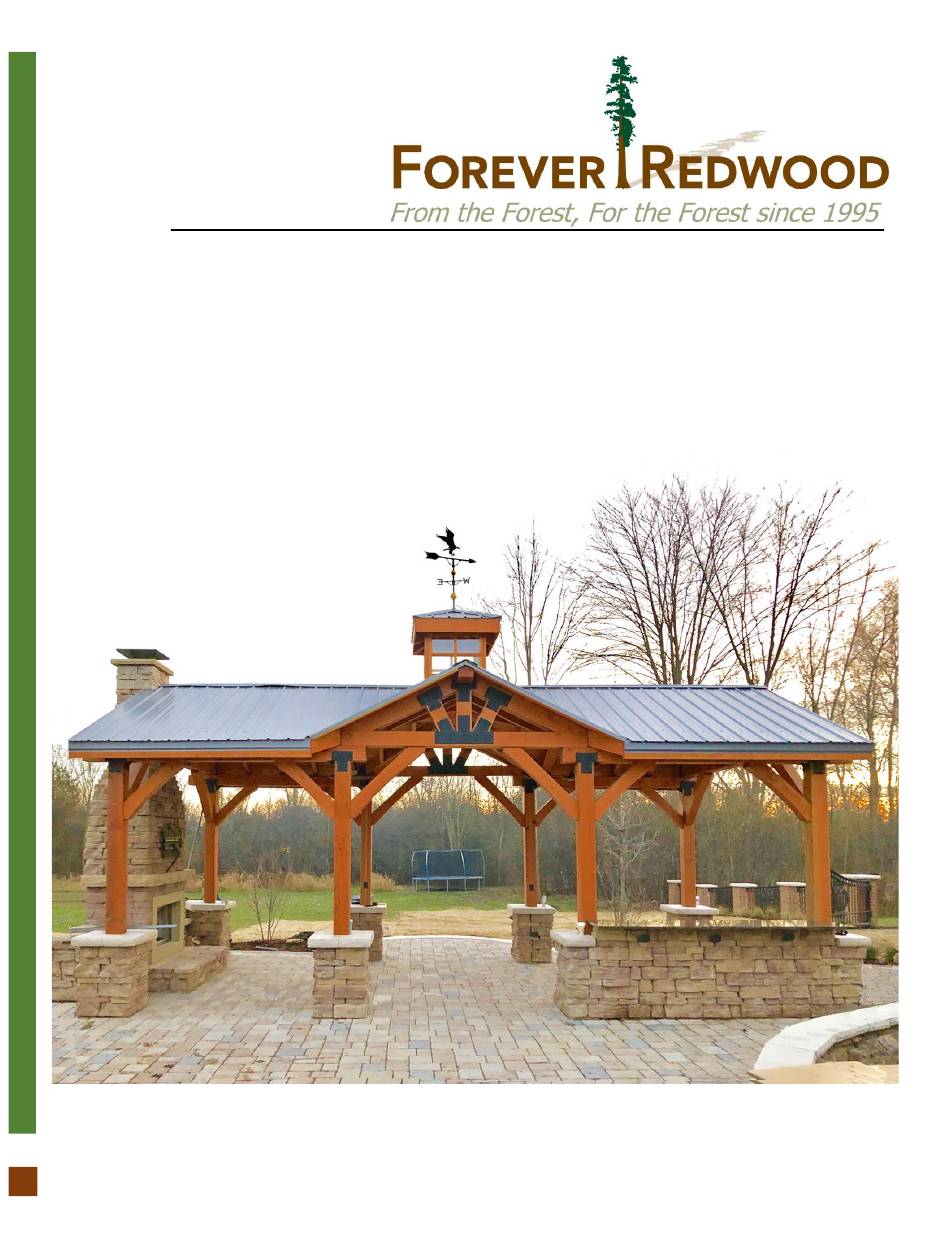

- Page 1 866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE ANDREA'S CUPOLA PAVILION...
- Page 2 P| 1 ANDREA´S CUPOLA PAVILION www.ForeverRedwood.com...
- Page 3 P| 2 ANDREA´S CUPOLA PAVILION www.ForeverRedwood.com...
- Page 4 P| 3 ANDREA´S CUPOLA PAVILION www.ForeverRedwood.com...
- Page 5 P| 4 ANDREA´S CUPOLA PAVILION www.ForeverRedwood.com...
- Page 6 P| 5 ANDREA´S CUPOLA PAVILION www.ForeverRedwood.com...
- Page 7 P| 6 ANDREA´S CUPOLA PAVILION www.ForeverRedwood.com...
- Page 8 NOTE: In order to know where the post needs to be placed, check the numbers on them. If the post is not marked, then place the single Supports on the ground to locate the markings for each post position and clearly set your bearings. (“Don´t attach yet, only place them on the ground to begin with”).
- Page 9 Step 2: Use the T-Supports (25), 3/8 X 8 ½´´ bolts (C) and 3/8´´ X 3´´ Lag Bolts (B) to attach the supports (2) to the posts. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´...
- Page 10 Step 3: Attach the Angles-A (26) to the posts and to the supports with 3/8´´ x 3´´ lag bolts (B). 3/8´´ X 3´´ Lag Bolts Step 4: Use Angles-B (27) and Use Angles-C (28) whit 3/8´´ X 3´´ Lag Bolts (B) and 3/8´´ X 8 ½´´ (C) to attach the Triangles (3,4) to the supports.
- Page 11 Step 5: Attach the Long Ridge Beam (5) to the Triangles with 3/8´´ x 6´´ Lag bolts (D). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 6´´ Lag Bolts Step 6: Use Angles-D (29), 5/16´´...
- Page 12 Step 7: Use Angles-E (30), 3/8´´ x 2 ´´ bolts (G) or 3/8´´ x 3´´ lag bolts (B) to attach the bridge (9) to the triangles. After that, attach to the beam with 3/8´´ x 4´´lag bolts (E). Each part has a series of numbers that indicate where to attach the part with the corresponding number.
- Page 13 Step 9: Attach triangle 3 (11) to the posts and to the supports with 3/8´´ x 12´´ Lag Bolts (H). 3/8´´ X 12´´ Lag Bolts Step 10: Attach the short ridge beam (13) to the bridge with Angle-G (31) and 3/8´´ x 2´´ Lag Bolts (G). After that, attach the short ridge beam (13) to the triangle 3 (11) whit 3/8´´...
- Page 14 Step 11: Attach the diagonals (14, 15) to the bridge with 3/8´´ x 6´´ Lag Bolts (D). After that attach to the support whit Angle- G (32) and 3/8´´ x 3´´ Lag Bolts (B). 3/8´´ X 6´´ Lag Bolts 3/8´´ X 3´´ Lag Bolts Step 12: Attach the short rafters (16, 17) to the bridge and short ridge beam (13) whit and 3/8´´...
- Page 15 Step 13: Attach the fascia board (20) whit 3´´deck screws(K). Attach the overhang boards (18, 19) whit 1 5/8´´ deck screws (L). 3´´ Deck Screws Step 14: Attach the corner knee braces (6, 7) to the posts and to the supports with 3/8´´ x 12´´ Bolts (I). After that attach the center braces together (6, 7) whit 3/8´´...
- Page 16 Step 15: Use 1 5/8´´ deck screws (L) to attach the roof boards (22) to the rafters. Put the boards from the bottom to the top. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 1 5/8´´...
- Page 17 Step 16: Finally, use 3´´ deck screws (K) to attach the boots (22) to the posts. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ ´Deck Screws P| 16 ANDREA´S CUPOLA PAVILION www.ForeverRedwood.com...
- Page 18 This completes the Pavilion assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 17 ANDREA´S CUPOLA PAVILION www.ForeverRedwood.com...
