- Page 1 DC-D Series Installation Manual DC-D4811WRX DC-D4515WRX Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
• Easy network access via UPnP (Universal Plug and ethernet. Play) function and embedded mDNS (Multicast DNS) You can use the IDIS Discovery program to change protocol network camera settings or the IDIS Solution Suite • Wide dynamic range compensation (True WDR) for... -
Page 7: Accessories
Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. Network Camera Guide Pattern Quick Guide Screws (2 ea.) Protect Connector Allen Wrench Desiccant and double-sided tape (each 2ea.) -
Page 8: Overview

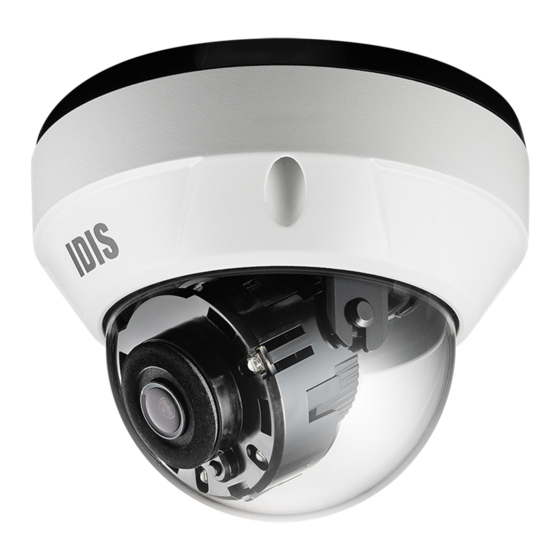

Part 1 – Introduction Overview Body Product color and design may vary depending on the model. Dome Cover IR LED Lens Factory Reset Button Bottom Cover Network Port SD Memory Card Slot Cable Access Hole Alarm I/O, Audio I/O Wall/Ceiling Installation Hole Cable Rubber •... - Page 9 Max. Voltage: 5VDC), the product could be For more information on network connection setup, damaged. When connecting the device which refer to the IDIS Discovery operation manual. exceeds the specification limit, refer to the picture (circuit) below. The following table describes the network cable specifications.
-
Page 10: Factory Reset
IDIS Discovery program from a remote location. A factory reset will reboot the system. For more information on factory reset, refer to the IDIS Discovery... -
Page 11: Installation
Part 1 – Introduction Installation Remove the dome cover. Installation of this product does not require the use of special tools. For more information on other devices comprising the overall system, refer to their respective installation manuals. Product color and design may vary depending on the model. -
Page 12: Inserting A Sd Memory Card
Part 1 – Introduction Inserting a SD Memory Card Make the LAN cable go through the cable rubber using the protect connector. Insert a SD memory card into the SD memory card slot with the 'microSD' printed facing upward. It is recommended to use lubricant to move the LAN cable smoothly. - Page 13 Part 1 – Introduction Assemble the cable rubber to the bottom cover. Attach the enclosed desiccant to the designated space inside the dome cover using double-sided tape as shown below. Desiccant Use the screws, anchors provided with the camera to secure the bottom cover on a wall or a ceiling.
-
Page 14: Angle Adjustment
Part 1 – Introduction Angle Adjustment Closing the Dome Cover The lens can be rotated along three axes. Before closing the dome cover, check if the gasket ring is firmly fixed. Fasten the screws for the dome cover clockwise using the Allen wrench provided with the camera. -
Page 15: Dimension
Part 1 – Introduction Dimension Ø 82mm Ø 120.6mm... -
Page 16: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio In Audio Out Power Alarm Out Alarm In Network Camera Power... -
Page 17: With Non Directip™ Nvr-Based Layout
Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact. -
Page 18: Part 3- Appendix
ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 8.0 or below. -
Page 19: Specifications
DC-D4515WRX f=4.0mm Aperture F2.0 Iris Control Fixed Iris Angular Field DC-D4811WRX 101.34° (H), 54.46° (V), 119.72° (D) of View DC-D4515WRX 78.9° (H), 43.4° (V), 91.9° (D Min. Illumination COLOR : 0.2 lux B/W : 0 lux (IR LED ON) Dynamic Range... - Page 20 Part 3- Appendix Network Video Compression H.265(MP), H.264(MP), M-JPEG Bitrate Control CBR/ VBR Max. Frame Rate DC-D4811WRX 15fps : 3840 x 2160 (WDR) DC-D4515WRX 15fps : 3072 x 1728 (WDR) Supported DC-D4811WRX 3840x2160, 1920x1080, 1280x720, 640x360 Resolution DC-D4515WRX 3072x1728, 1920x1080, 1280x720, 640x360...
- Page 22 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
