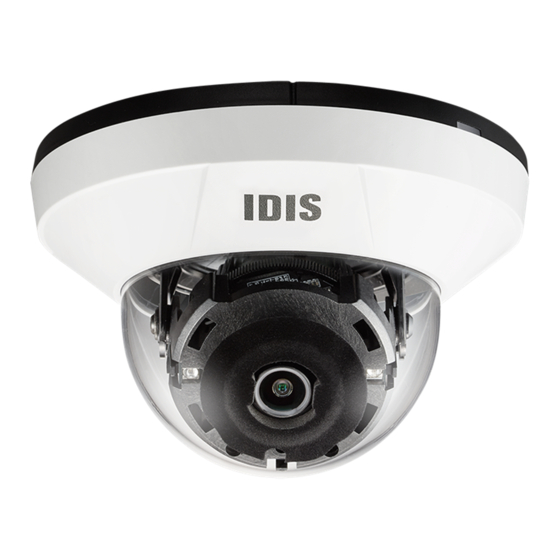

Idis DC-D Series Installation Manual
  1. Manuals
  2. Brands
  3. Idis Manuals
  4. Security Camera
  5. DC-D Series
  6. Installation manual

Idis DC-D Series Installation Manual

Hide thumbs Also See for DC-D Series:
Table of Contents

Advertisement

Quick Links

Download this manual
DC-D
Series
Installation Manual
DC-D4513RX
DC-D4513WRX
Powered by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC-D Series and is the answer not in the manual?

Questions and answers

Related Manuals for Idis DC-D Series

Summary of Contents for Idis DC-D Series

  • Page 1 DC-D Series Installation Manual DC-D4513RX DC-D4513WRX Powered by...
  • Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
  • Page 4 IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.

  • Page 5: Table Of Contents

    Table of Contents Part 1 – Introduction ......... 6 Product Features .

  • Page 6: Part 1 - Introduction

    • Easy network access via UPnP (Universal Plug and ethernet. Play) function and embedded mDNS (Multicast DNS) You can use the IDIS Discovery program to change protocol network camera settings or the IDIS Solution Suite • Wide dynamic range compensation (True WDR) for...

  • Page 7: Accessories

    Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. DC-D4513RX DC-D4513WRX Guide Pattern Network Camera Quick Guide Screws and Anchors (each 2 ea.) Protect Connector Allen Wrench Desiccant...

  • Page 8: Overview

    Part 1 – Introduction Overview Body Product color and design may vary depending on the DC-D4513RX model. Dome Cover DC-D4513RX DC-D4513WRX...
  • Page 9 For more information on network connection setup, refer to the IDIS Discovery operation manual. The following table describes the network cable specifications. <The network cable specifications>...
  • Page 10 Part 1 – Introduction • Cable Access Hole I/O Connector For routing cables. • Audio - O (Out): Connect an amplifier to this port (line out). This device does not feature a built-in audio amplifier unit and therefore requires the user to purchase a separate speaker system with a built-in amplifier.

  • Page 11: Factory Reset

    It's also possible to do a factory reset by pressing and releasing the reset button while the camera is turned on or using the IDIS Discovery program from a remote location. A factory reset will reboot the system. For more information on factory reset, refer to the IDIS Discovery Remove the dome cover.

  • Page 12: Inserting A Sd Memory Card

    Part 1 – Introduction Inserting a SD Memory Card DC-D4513WRX Insert a SD memory card into the SD memory card slot Loosen the screws counterclockwise using the Allen with the 'microSD' printed facing upward. wrench provided with the product. Push the SD memory card until it disengages from the slot, and then pull it out.
  • Page 13 Part 1 – Introduction Assemble the cable rubber to the bottom cover. Use the screws, anchors provided with the camera to secure the bottom cover on a wall or a ceiling. Use the provided guide pattern to check the distance between the screw holes if necessary.

  • Page 14: Angle Adjustment

    Part 1 – Introduction Adjust the angle. For more information, refer to the • Horizontal Rotation Angle Adjustment. Used to adjust the lens' horizontal angle. Turn the horizontal rotator in the clockwise or counterclockwise direction. Attach the enclosed desiccant to the designated space inside the dome cover using double-sided tape as shown below.

  • Page 15: Dimension

    Part 1 – Introduction Dimension DC-D4513WRX Fasten the screws for the dome cover clockwise using the Allen wrench provided with the camera. DC-D4513RX Ø 110mm Remove the protective film outside.
  • Page 16 Part 1 – Introduction DC-D4513WRX Ø 120mm...

  • Page 17: Part 2 - Camera Connection

    Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio Out Audio In Alarm In Power Alarm Out Network Camera Power...

  • Page 18: With Non Directip™ Nvr-Based Layout

    Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact.

  • Page 19: Part 3- Appendix

    ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 8.0 or below.

  • Page 20: Specifications

    Part 3- Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/2.8” CMOS Max. Resolution 2592 x 1944 Scanning Mode Progressive Scan Lens type Fixed-focal Focal Length f=4.0mm/f=2.8mm Aperture F2.15/F2.0 Iris Control Fixed Iris Angular Field 5M Mode H: 79.2°...
  • Page 21 Part 3- Appendix Network Video Compression H.265(MP), H.264(MP), M-JPEG Bitrate Control H.264 - VBR/CBR H.265 Max. Frame Rate 30ips: 2592x1944 Supported Resolution 2592x1944, 1920x1440, 1280x960, 640x480 2592x1456, 1920x1080, 1280x720, 640x360 Multi-Video Streaming Quadruple Ethernet RJ45(10/100BASE-T) Audio In/Out DC-D4513RX model only Line-in 1ea / Line-out 1ea / Internal Mic 1ea Alarm In 1 TTL, NC/NO Programmable, 4.3V(NC) or 0.3V(NO) threshold, 5V DC...
  • Page 22 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
