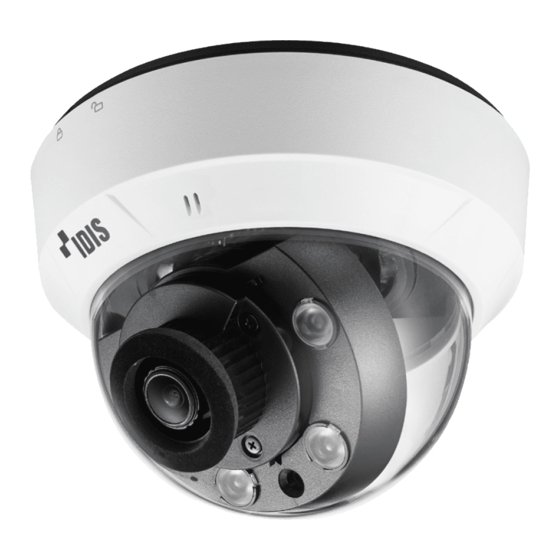

- Page 1 DC-D Series Installation Manual DC-D3212RX-N DC-D3212X-N DC-D3214RX-N DC-D3214X-N Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
• Easy network access via UPnP (Universal Plug and compresses and transmits video over ethernet. Play) function and embedded mDNS (Multicast DNS) You can use the IDIS Discovery program to change protocol network camera settings or the IDIS Solution Suite •... -
Page 7: Accessories
Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. Network Camera Guide Pattern Screws (2 ea.) Quick Guide... -
Page 8: Overview
Part 1 – Introduction Overview Body Product color and design may vary depending on the DC-D3212X-N model. Dome Cover DC-D3212RX-N Side Cable Access Hole • Side Cable Access Hole For routing cables. - Page 9 PoE switch use, refer to the switch manufacturer's operation manual. You can configure, manage, and upgrade this camera and monitor its images from a remote computer over the network. For more information on network connection setup, refer to the IDIS Discovery operation manual.
-
Page 10: Factory Reset
Test the SD releasing the reset button while the camera is turned memory card regularly and replace it whenever on or using the IDIS Discovery program from a remote necessary. location. A factory reset will reboot the system. For more •... -
Page 11: Installation
Part 1 – Introduction Installation Inserting a SD Memory Card Insert a SD memory card into the SD memory card slot Installation of this product does not require the use of with the 'microSD' printed facing upward. special tools. For more information on other devices comprising the overall system, refer to their respective installation manuals. -
Page 12: Closing The Dome Cover
Part 1 – Introduction Closing the Dome Cover Attach the dome cover to the bottom cover. Turn the dome cover clockwise to fasten the dome cover. Angle Adjustment The lens can be rotated along three axes. Connect external devices, the network cable, and the power adapter. -
Page 13: Dimension
Part 1 – Introduction Dimension 111.9mm (4.4") -
Page 14: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Power Network Camera Power Monitor Out Network Remote Monitoring DirectIP™ NVR makes it easy to use cameras without extra network configurations. -
Page 15: With Non Directip™ Nvr-Based Layout
Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact. -
Page 16: Part 3- Appendix
ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 8.0 or below. -
Page 17: Specifications
Auto / Manual (1/30 ~ 1/8,000), Anti-Flicker, Slow Shutter(1 ~ 1/5, 1/7.5, 1/15) Day & Night IR cut filter with auto switch IR Distance (LEDs) 20m (4ea) DC-D3212RX-N / DC-D3214RX-N model only Pan/Tilt Range Pan: -174° ~ 174°, Tilt: 0° ~ 70°... - Page 18 * An SD memory card is a consumable product with a finite service life. Prolonged use will damage the card's memory sectors and result in data loss or memory card failure. Test the SD memory card regularly and replace it whenever necessary. * microSD Logo is a trademark of SD-3C, LLC. DC-D3214RX-N / Audio In Internal Mic 1ea...
- Page 20 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
