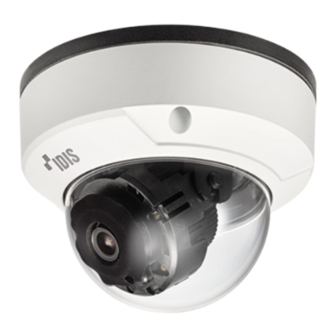

Idis DC-D Series Installation Manual
Hide thumbs
Also See for DC-D Series:
- Installation manual (22 pages) ,
- Installation manual (22 pages) ,
- Installation manual (20 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Idis DC-D Series
Summary of Contents for Idis DC-D Series
- Page 1 DC-D Series Installation Manual DC-D4218WRA Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
• Easy network access via UPnP (Universal Plug and You can use the IDIS Discovery program to change Play) function and embedded mDNS (Multicast DNS) network camera settings or the IDIS Solution Suite... -
Page 7: Accessories
Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. Network Camera Guide Pattern Quick Guide Screws and Anchors (each 2 ea.) Protect Connector Allen Wrench Desiccants, Double-sided tapes (each 2 ea.) -
Page 8: Overview
Part 1 – Introduction Overview Body Product color and design may vary depending on the model. Dome Cover IR LED Lens Factory Reset Button Bottom Cover Network Port SD Memory Card Slot Cable Access Hole Alarm I/O, Audio I/O Wall/Ceiling Installation Hole Cable Rubber •... - Page 9 (circuit) below. For more information on network connection setup, If used with an external inductive load(e.g. relay), refer to the IDIS Discovery operation manual. a diode must be connected in parallel with the load for protection. Otherwise, the product could The following table describes the network cable be damaged.
-
Page 10: Factory Reset
IDIS Discovery program from a remote location. A factory reset will reboot the system. For more information on factory reset, refer to the IDIS Discovery... -
Page 11: Installation
Part 1 – Introduction Installation Inserting a SD Memory Card Insert a SD memory card into the SD memory card slot Installation of this product does not require the use of with the 'microSD' printed facing upward. special tools. For more information on other devices comprising the overall system, refer to their respective installation manuals. - Page 12 Part 1 – Introduction Insert the LAN cable through the cable rubber using Assemble the cable rubber to the bottom cover. the protect connector. The use of lubricant is recommended to insert the LAN cable smoothly. Pull the cable slightly and arrange the rubber as Use the screws, anchors provided with the camera to shown below.
-
Page 13: Angle Adjustment
Part 1 – Introduction Desiccant Angle Adjustment The lens can be rotated along three axes. Connect external devices, the network cable, and the power adapter. Adjust the angle. For more information, refer to the Angle Adjustment. Attach the enclosed desiccant to the designated space inside the dome cover using double-sided tape as shown below. -
Page 14: Closing The Dome Cover
Part 1 – Introduction • Horizontal Rotation Dimension Used to adjust the lens' horizontal angle. Turn the horizontal rotator in the clockwise or counterclockwise direction. Closing the Dome Cover Fasten the screws for the dome cover clockwise using the Allen wrench provided with the camera. Ø... -
Page 15: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP® NVR or non DirectIP® NVR, VMS such as IDIS Solution Suite Compact. With DirectIP® NVR-based Layout Audio Out Audio In Alarm In Power Alarm Out Network Camera Power... -
Page 16: With Non Directip® Nvr-Based Layout
Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP® NVR connection or VMS connection such as IDIS Solution Suite Compact. -
Page 17: Part 3- Appendix
ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 10 or below. -
Page 18: Specifications
Part 3- Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/2.8” CMOS Max. Resolution 1920 x 1080 Scanning Mode Progressive Scan Lens type Fixed-focal Focal Length F1.6 Iris Control Fixed Iris Angular Field of View 87.5°(H), 44.4°(V), 104.9°(D) (4.0mm) 105.8°(H), 56.4°(V), 121.2°(D) (2.8mm) Min. - Page 19 Part 3- Appendix Network Video Compression H.265(MP), H.264(MP), M-JPEG Bitrate Control VBR/CBR Max. Frame Rate 1920x1080, 1280x720, 640x360, 352x240 Supported Resolution 60ips, 30ips : 1920 x 1080 50ips, 25ips : 1920 x 1080 Multi-Video Streaming Quadruple Ethernet RJ45(10/100 Based Ethernet) Audio In/Out Line-in 1ea / Line-out 1ea Alarm In...
- Page 20 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
