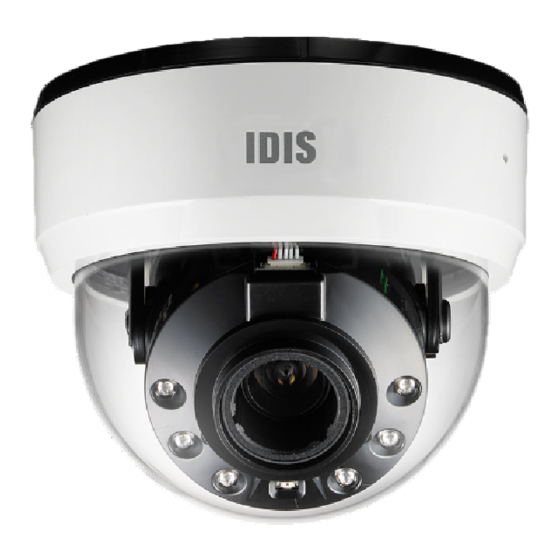

- Page 1 Network Camera Quick Guide DC-D4536RX/DC-D4536HRX DC-D4536RX-A/DC-D4536HRX-A Powered by...
-
Page 2: Safety Precautions
Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result appliance is operated. -
Page 3: Fcc Compliance Statement
IDIS Co., Ltd. reserves all rights concerning this document. Use or duplication of this document in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this document are subject to change without prior notice for reasons such as functionality enhancements. -
Page 4: Dome Cover
DC-D4536HRX Allen Wrench ( only) Guide Pattern Please download software (IDIS Discovery, IDIS Center, IDIS Solution Suite Compact) and product manual from this link : - IDIS Website (www.idisglobal.com) - Search IDIS Discovery, IDIS Center, IDIS Solution Suite Compact. Overview DC-D4536HRX/DC-D4536HRX-A •... - Page 5 Body DC-D4536HRX/DC-D4536HRX-A DC-D4536RX/DC-D4536RX-A IR LED Network Port Dome Cover Assembly Lens Part Factory Reset Button Alarm I/O, Audio I/O Built-in Microphone SD Memory Card Slot Wall/Ceiling Cable Rubber Installation Hole Power Network Camera...
-
Page 6: Camera Installation
Camera Installation Removing the Dome Cover DC-D4536RX/DC-D4536RX-A Turn the dome cover counterclockwise. Remove the dome cover. Remove the dome cover. DC-D4536HRX/DC-D4536HRX-A Loosen the screws counterclockwise using the Allen wrench provided with the product. Quick Guide... -
Page 7: Inserting A Sd Memory Card
Inserting a SD Memory Card DC-D4536RX/DC-D4536RX-A Use the screws, anchor provided with the camera Insert a SD memory card into the SD memory card slot to secure the install body on a wall or a ceiling. with the ‘micro SD’ print facing upward. Use the provided guide pattern to check the distance between the screws. - Page 8 Assemble the cable rubber to the bottom cover. It is recommended to use lubricant to move the LAN cable smoothly. Pull the cable slightly and arrange the rubber as shown below. Attach the enclosed desiccant in the bottom to prevent moisture. Use the screws, anchor provided with the camera To pass through a thin cable or more than two to secure the install body on a wall or a ceiling.
-
Page 9: Closing The Dome Cover
Closing the Dome Cover DC-D4536RX/DC-D4536RX-A Attach the dome cover to the bottom cover. Turn the dome cover clockwise to fasten the dome cover. Connect external devices, the network cable, and DC-D4536HRX/DC-D4536HRX-A the power adapter. Adjust the angle. For more information, refer to Attach the double-sided tape to the desiccant first, the Angle Adjustment. - Page 10 Fasten the screws for the dome cover clockwise using the Allen wrench provided with the camera. Remove the protective film inside and outside before closing the dome cover.
-
Page 11: Specifications
Specifications Vandal Resistance Out-door Ready IP67, Heater Operating DC-D4536RX, -10°C ~ +50°C (14°F ~ +122°F) Temperature DC-D4536RX-A DC-D4536HRX, -40°C ~ +55°C (-40°F ~ +131°F) DC-D4536HRX-A Boot Up DC-D4536RX, 0°C ~ +50˚C (32°F ~ +122˚F) Temperature DC-D4536RX-A DC-D4536HRX, -20°C ~ +55˚C (-4°F ~ +131˚F) DC-D4536HRX-A Operating Humidity 0% ~ 90%... - Page 12 IDIS Co., Ltd. For more information, please visit www.idisglobal.com...
