Dvr Description - ESP HDVIEW HDV8RX User Manual

HDV8RX 8 channel.qxp_Layout 2 17/03/2015 15:01 Page 3

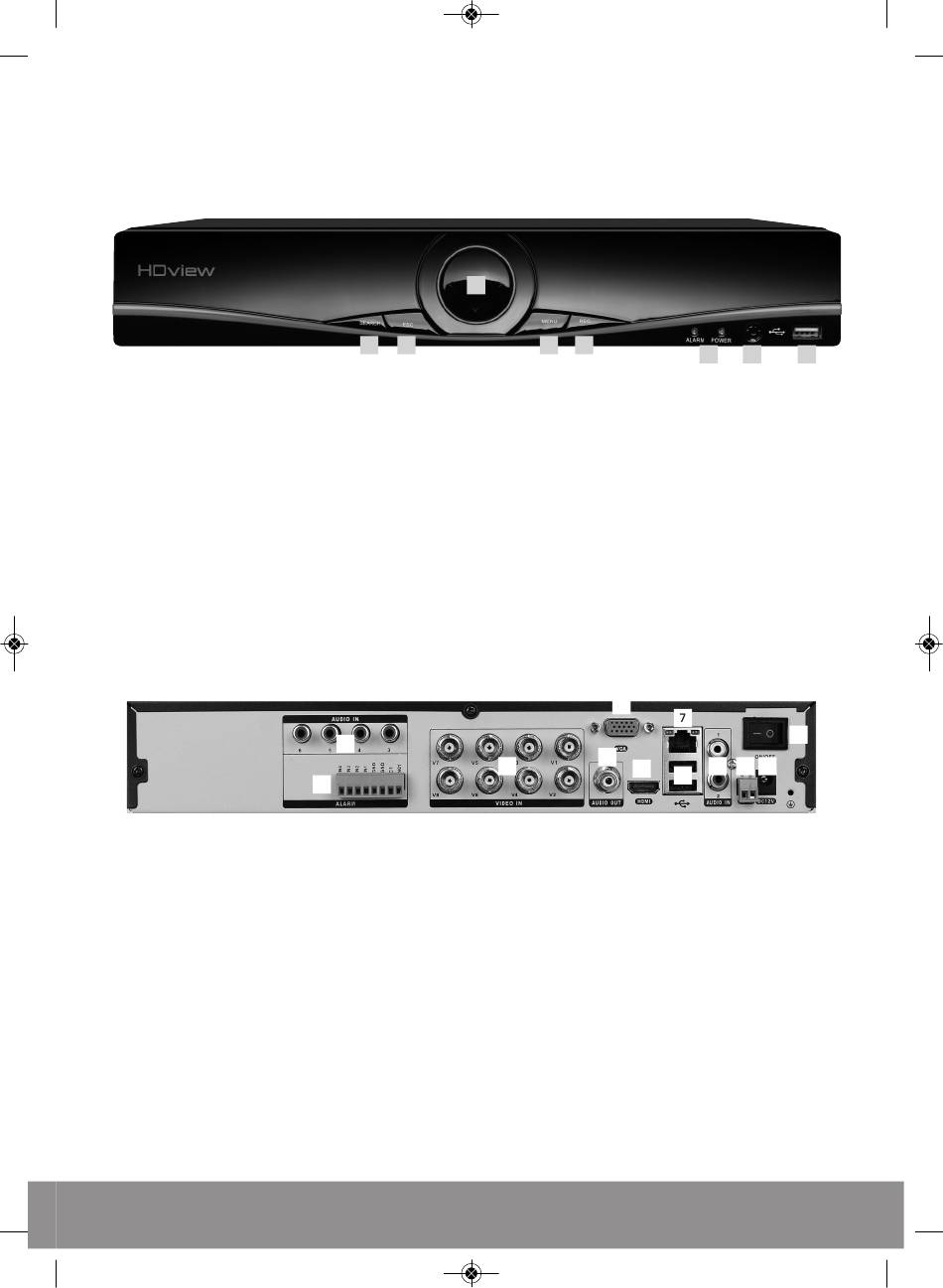

Front Panel
1. Search - Initiate play back
2. ESC - Exit menu
3. Navigation arrows
4. Menu - Access main menu
5. REC - Access shortcut record menu
6. System indicator lights
7. Remote control receiver
8. USB for mouse or USB stick
Rear Panel
1. AUDIO IN
2. ALARM
3. VIDEO IN
4. AUDIO OUT
5. VGA
6. HDMI
7. LAN
8. USB 1 + 2
9. AUDIO IN
10. RS485 + -
11. DC12V
12. Power
1 2
1
2
Audio input
Alarm IN / OUT
1-8 for video input from camera
Audio output
Output for monitor
Output for monitor
Socket connection for ethernet cable
For mouse control, USB backup and Wifi dongle
Audio input
Signal Control
Power input
ON/OFF switch
