PowerShield PSDCMin12 Quick Manual

1. Package Contents
Thank you for purchasing the
PowerShield 12V DC 18W Mini UPS (PSDCMin12/18).
Please check for the following items inside of the packaging:
- PowerShield PSDCMin12/18 DC UPS adaptor with a wide variety of DC connectors
- Quick Guide
If anything is missing or damaged, please contact your dealer.

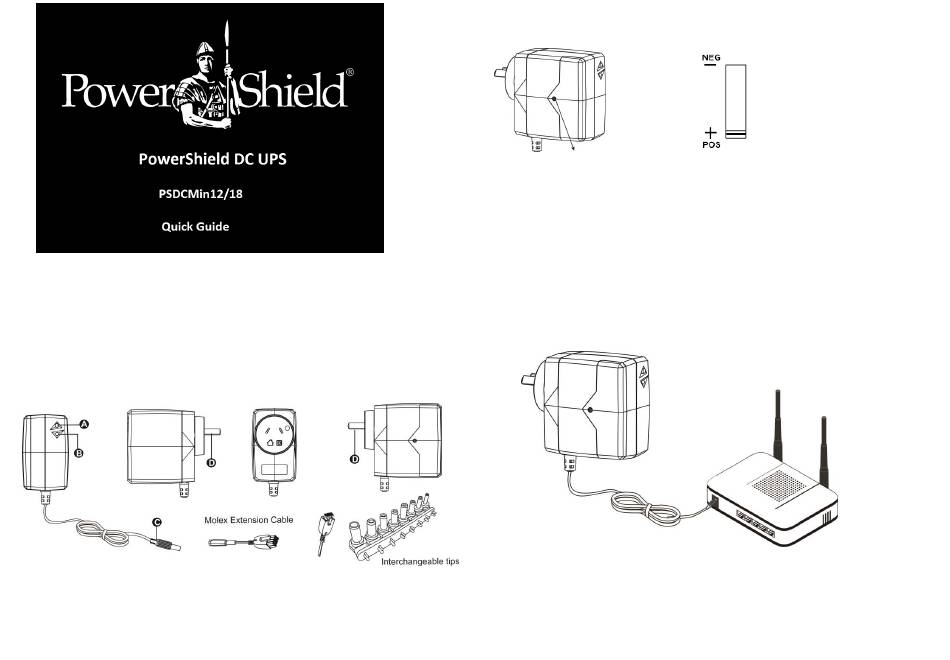

2. Product Overview
A C
Restart/OFF Button DC output with a wide variety of interchangeable tips
B D
LED indicator AC input
1
3. Installation and Operation
Please inspect the PSDCMin12/18 for any damage before installation.
Battery Access: Battery cover screw is located under the manufacturing date code label.
Battery Cover access screw
Connecting to Utility and Charging
The PSDCMin12/18 will automatically turn on when (D) is plugged into the powered wall
socket. The PSDCMin12/18 will turn on and switch on the green LED. If the battery is not
fully charged, the DC UPS will auto charge the battery and the green LED will flash on/off
until fully charged.
Connecting the Loads
Insert the desired DC connector in the DC output adaptor (C) of the PSDCMin12/18 and
connect to the load. The connected 12VDC device will then be protected up to a maximum
power of 18 Watt by the PSDCMin12/18.
Restart/OFF Button Operation
If the PSDCMin12/18 experiences overload, it enters fault mode and switches the RED LED
ON. Remove the fault by disconnecting the load and press restart button to restart the UPS.
To turn OFF the DC UPS, unplug from the wall outlet, press the OFF button and hold for 5
seconds.
Rechargeable Lion
2
