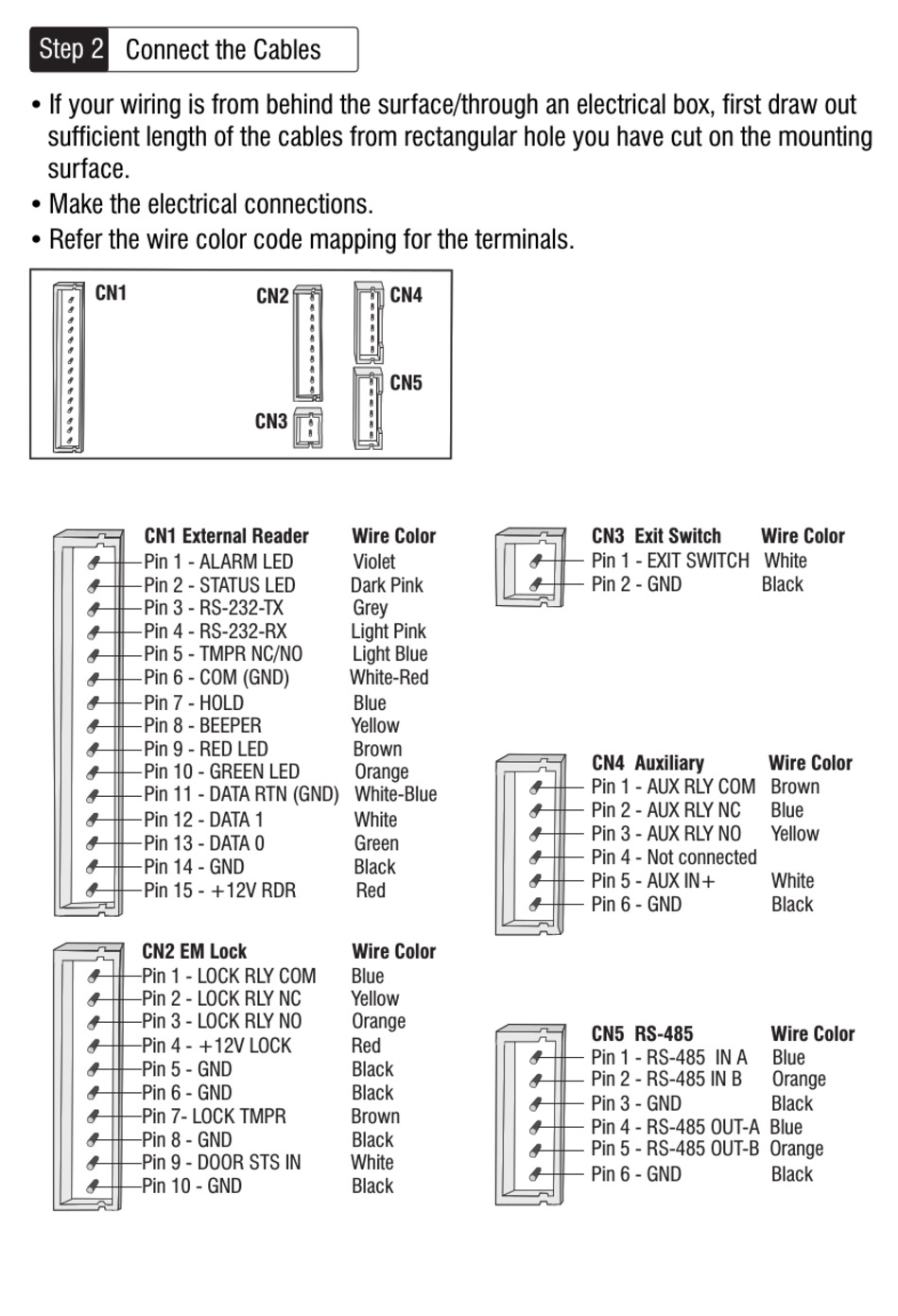

Step 2

Connect the Cables

Ÿ If your wiring is from behind the surface/through an electrical box, first draw out
sufficient length of the cables from rectangular hole you have cut on the mounting
surface.
ŸMake the electrical connections.
Ÿ Refer the wire color code mapping for the terminals.
CN1
CN1 External Reader
Pin 1 - ALARM LED
Pin 2 - STATUS LED
Pin 3 - RS-232-TX
Pin 4 - RS-232-RX
Pin 5 - TMPR NC/NO
Pin 6 - COM (GND)
Pin 7 - HOLD
Pin 8 - BEEPER
Pin 9 - RED LED
Pin 10 - GREEN LED
Pin 11 - DATA RTN (GND) White-Blue
Pin 12 - DATA 1
Pin 13 - DATA 0
Pin 14 - GND
Pin 15 - +12V RDR
CN2 EM Lock
Pin 1 - LOCK RLY COM
Pin 2 - LOCK RLY NC
Pin 3 - LOCK RLY NO
Pin 4 - +12V LOCK
Pin 5 - GND
Pin 6 - GND
Pin 7- LOCK TMPR
Pin 8 - GND
Pin 9 - DOOR STS IN
Pin 10 - GND
CN4
CN2
CN5
CN3
Wire Color
Violet
Dark Pink
Grey
Light Pink
Light Blue
White-Red
Blue
Yellow
Brown
Orange
White
Green
Black
Red
Wire Color
Blue
Yellow
Orange
Red
Black
Black
Brown
Black
White
Black
CN3 Exit Switch
Pin 1 - EXIT SWITCH White
Pin 2 - GND
CN4 Auxiliary
Pin 1 - AUX RLY COM Brown
Pin 2 - AUX RLY NC
Pin 3 - AUX RLY NO
Pin 4 - Not connected
Pin 5 - AUX IN+
Pin 6 - GND
CN5 RS-485
Pin 1 - RS-485 IN A
Pin 2 - RS-485 IN B
Pin 3 - GND
Pin 4 - RS-485 OUT-A Blue
Pin 5 - RS-485 OUT-B Orange
Pin 6 - GND
Wire Color
Black
Wire Color
Blue
Yellow
White
Black
Wire Color
Blue
Orange
Black
Black
