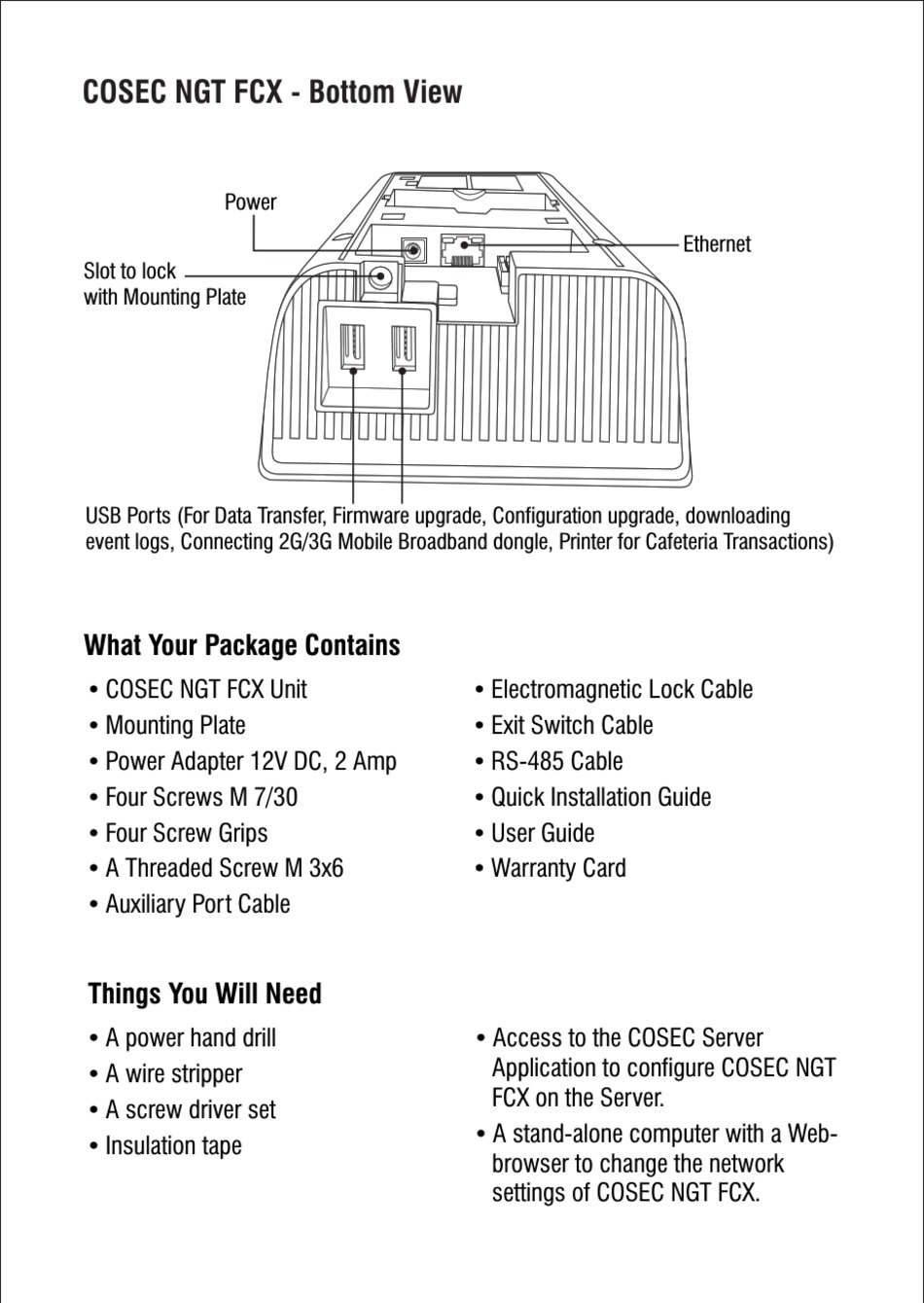

Matrix COSEC NGT FCX Quick Installation Manual page 5

COSEC NGT FCX - Bottom View
Power
Slot to lock
with Mounting Plate
USB Ports (For Data Transfer, Firmware upgrade, Configuration upgrade, downloading
event logs, Connecting 2G/3G Mobile Broadband dongle, Printer for Cafeteria Transactions)
What Your Package Contains
Ÿ COSEC NGT FCX Unit
Ÿ Mounting Plate
Ÿ Power Adapter 12V DC, 2 Amp
Ÿ Four Screws M 7/30
Ÿ Four Screw Grips
Ÿ A Threaded Screw M 3x6
Ÿ Auxiliary Port Cable
Things You Will Need
Ÿ A power hand drill
Ÿ A wire stripper
Ÿ A screw driver set
Ÿ Insulation tape
Ÿ Electromagnetic Lock Cable
Ÿ Exit Switch Cable
Ÿ RS-485 Cable
Ÿ Quick Installation Guide
Ÿ User Guide
Ÿ Warranty Card
Ÿ Access to the COSEC Server
Application to configure COSEC NGT
FCX on the Server.
Ÿ A stand-alone computer with a Web-
browser to change the network
settings of COSEC NGT FCX.
Ethernet
