Matrix COSEC NGT FCX Quick Installation Manual page 8

Ÿ

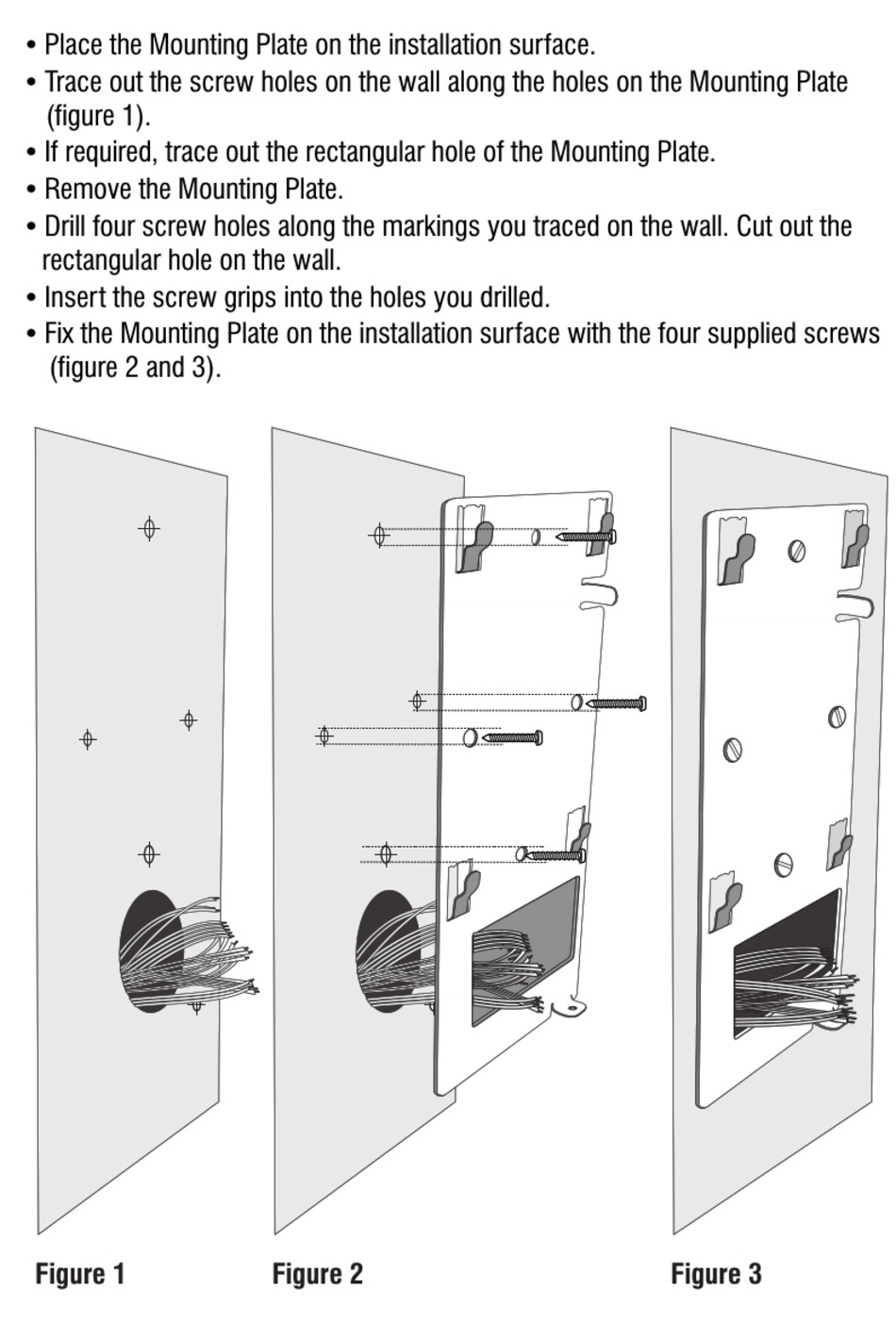

Place the Mounting Plate on the installation surface.
Ÿ Trace out the screw holes on the wall along the holes on the Mounting Plate
(figure 1).
Ÿ If required, trace out the rectangular hole of the Mounting Plate.
Ÿ Remove the Mounting Plate.
Ÿ Drill four screw holes along the markings you traced on the wall. Cut out the
rectangular hole on the wall.
Ÿ Insert the screw grips into the holes you drilled.
Ÿ Fix the Mounting Plate on the installation surface with the four supplied screws
(figure 2 and 3).
Figure 1 Figure 2 Figure 3
