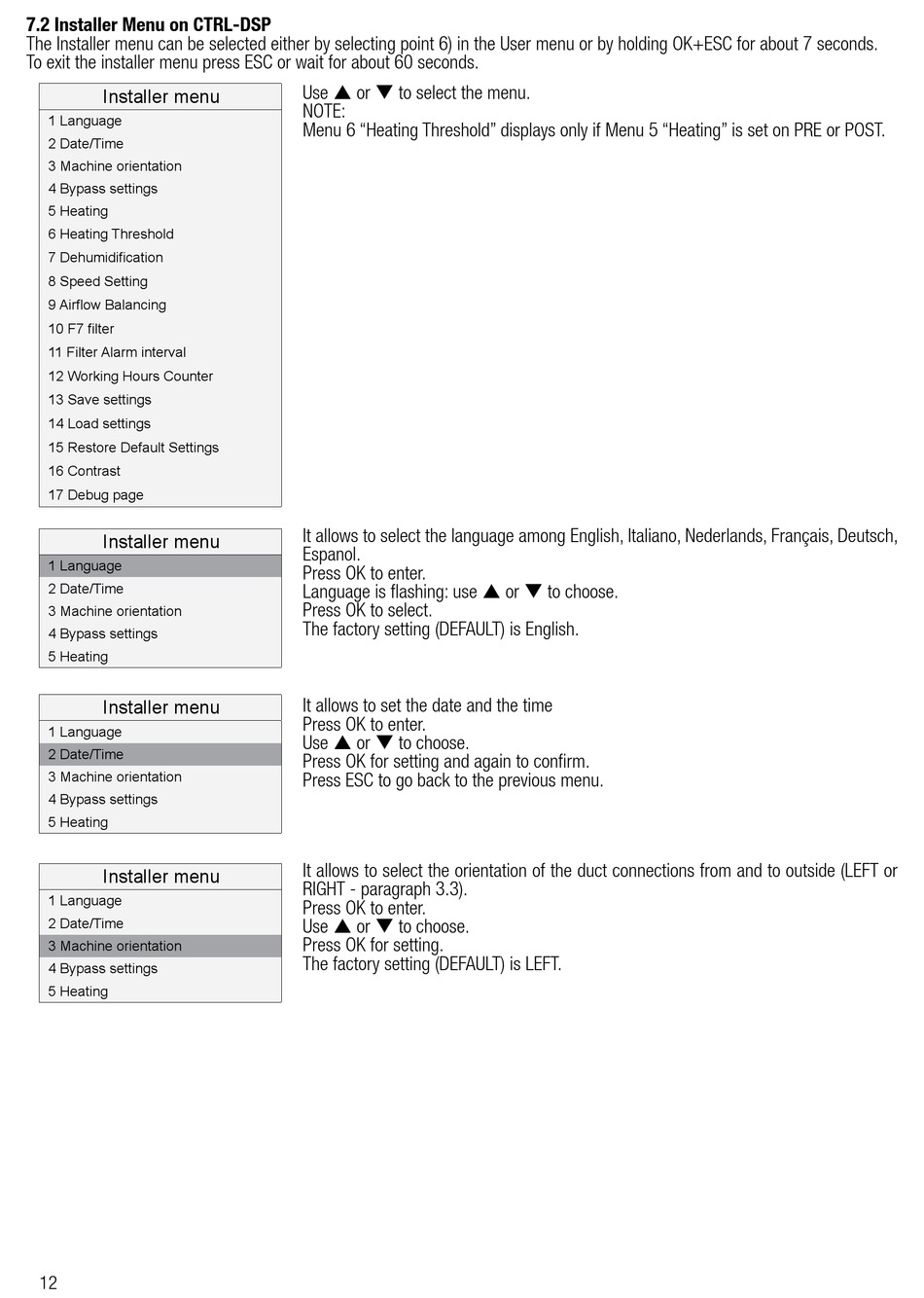

7.2 Installer Menu on CTRL-DSP

The Installer menu can be selected either by selecting point 6) in the User menu or by holding OK+ESC for about 7 seconds.
To exit the installer menu press ESC or wait for about 60 seconds.
Installer menu
1 Language
2 Date/Time
3 Machine orientation
4 Bypass settings
5 Heating
6 Heating Threshold
7 Dehumidification
8 Speed Setting
9 Airflow Balancing
10 F7 filter
11 Filter Alarm interval
12 Working Hours Counter
13 Save settings
14 Load settings
15 Restore Default Settings
16 Contrast
17 Debug page
Installer menu
1 Language
2 Date/Time
3 Machine orientation
4 Bypass settings
5 Heating
Installer menu
1 Language
2 Date/Time
3 Machine orientation
4 Bypass settings
5 Heating
Installer menu
1 Language
2 Date/Time
3 Machine orientation
4 Bypass settings
5 Heating
12
Use  or  to select the menu.
NOTE:
Menu 6 "Heating Threshold" displays only if Menu 5 "Heating" is set on PRE or POST.
It allows to select the language among English, Italiano, Nederlands, Français, Deutsch,
Espanol.
Press Ok to enter.
Language is flashing: use  or  to choose.
Press Ok to select.
The factory setting (DEFAULT) is English.
It allows to set the date and the time
Press Ok to enter.
Use  or  to choose.
Press Ok for setting and again to confirm.
Press ESC to go back to the previous menu.
It allows to select the orientation of the duct connections from and to outside (LEFT or
RIGHT - paragraph 3.3).
Press Ok to enter.
Use  or  to choose.
Press Ok for setting.
The factory setting (DEFAULT) is LEFT.
