PCB Layout Recommendation
The Printed Circuit Board (PCB) layout recommendation for the AS3460 (shown in Figure 50 and
Figure 52) is given below:

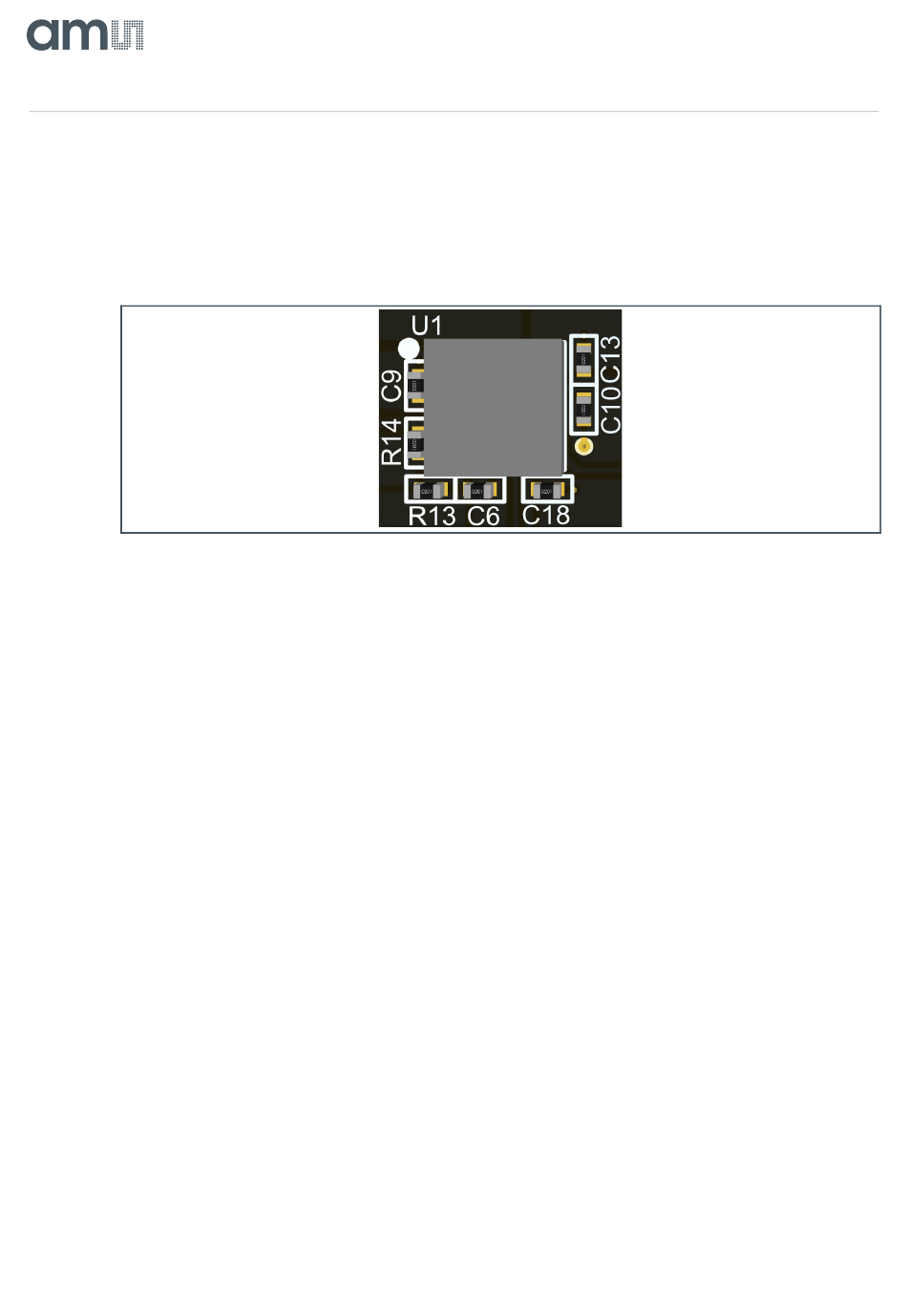

Figure 52:
PCB Area Calculation / Single Sided PCB
It is recommended to use a four Layer PCB to route all pins of the AS3460 IC.
4.1.1
Component Placement Recommendation
This chapter provides detailed information about recommended external components.
