- Page 1 Eval Kit Manual DN[Document ID] AS5047P Adapter Board AS5047P-TS_EK_AB ams Eval Kit Manual, Confidential Page 1 [v1-0] 2015-Jan-14 Document Feedback...
-
Page 2: Table Of Contents
One device SPI mode, unidirectional – 3 wire ..............7 One device SPI mode, bidirectional – 4 wire ............... 8 AS5047P-TS_EK_AB Hardware ..................9 AS5047P-TS_EK_AB schematics ..................9 AS5047P-TS_EK_AB PCB layout ..................10 Ordering & Contact Information ..................11 Copyrights & Disclaimer ..................... 12 Revision History... -
Page 3: Introduction
AS5047P magnetic position sensor without the need to build a test fixture or design an own PCB. Kit Content Figure 1: Kit content Pos. Item Comment AS5047P-TS_EK_AB Adapter board AS5000-MD6H-2 Diametric Magnet, D6x2.5mm, NdFeB, Bomatec AG ams Eval Kit Manual, Confidential Page 3 [v1-0] 2015-Jan-14 Document Feedback... -
Page 4: Board Description

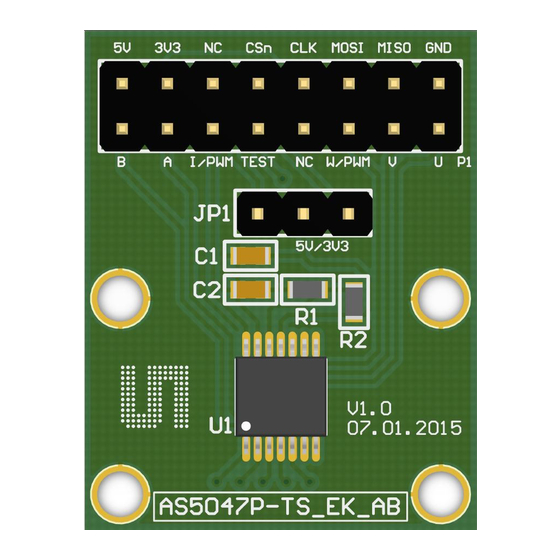

R2 has to be populated. For 5V operation R1 has to be populated and R2 has to be removed (default case). Vice versa for 3.3V operation. Figure 2: AS5047P adapter board P1 connector (Not populated) JP1 connector (Selecting supply voltage) 4x2.6mm Mounting holes AS5047P ams Eval Kit Manual, Confidential Page 4 [v1-0] 2015-Jan-14 Document Feedback... -
Page 5: Mounting The As5047P Adapter Board
0.5mm to 3mm. The magnet holder must not be ferromagnetic. Materials as brass, copper, aluminum, stainless steel are the best choices to make this part. ams Eval Kit Manual, Confidential Page 5 [v1-0] 2015-Jan-14... -
Page 6: As5047P Adapter Board And Pinout
Not connected P1 - 14 W/PWM Digital output Commutation signal W or PWM P1 - 15 Digital output Commutation signal V P1 - 16 Digital output Commutation signal U ams Eval Kit Manual, Confidential Page 6 [v1-0] 2015-Jan-14 Document Feedback... -
Page 7: Operation Case
14-bit Angle Register (0x3FFF). See AS5047P datasheet register table, register 0x3FFF. Figure 5: One device SPI mode, unidirectional – 3 wire 3-3.6V Regulated Power Supply MOSI MISO I/PWM TEST W/PWM 5V/3V3 AS5047P ams Eval Kit Manual, Confidential Page 7 [v1-0] 2015-Jan-14 Document Feedback... -
Page 8: One Device Spi Mode, Bidirectional - 4 Wire
If it’s needed to read other registers than the Angle Register (0x3FFF) or to write to registers of the AS5047P the MOSI connection is required. Figure 6: One device SPI mode, bidirectional – 4 wire 3-3.6V Regulated Power Supply MOSI MISO I/PWM TEST W/PWM 5V/3V3 AS5047P ams Eval Kit Manual, Confidential Page 8 [v1-0] 2015-Jan-14 Document Feedback... -
Page 9: As5047P-Ts_Ek_Ab Hardware
AS5047P Adapter Board AS5047P-TS_EK_AB Hardware AS5047P-TS_EK_AB schematics Figure 7: AS5047P-TS_EK_AB schematics ams Eval Kit Manual, Confidential Page 9 [v1-0] 2015-Jan-14 Document Feedback... -
Page 10: As5047P-Ts_Ek_Ab Pcb Layout
AS5047P Adapter Board AS5047P-TS_EK_AB PCB layout Figure 8: AS5047P-TS_EK_AB PCB layout ams Eval Kit Manual, Confidential Page 10 [v1-0] 2015-Jan-14 Document Feedback... -
Page 11: Ordering & Contact Information
For further information and requests, e-mail us at: ams_sales@ams.com For sales offices, distributors and representatives, please visit: www.ams.com/contact Headquarters ams AG Tobelbaderstrasse 30 8141 Unterpremstaetten Austria, Europe Tel: +43 (0) 3136 500 0 Website: www.ams.com ams Eval Kit Manual, Confidential Page 11 [v1-0] 2015-Jan-14 Document Feedback... -
Page 12: Copyrights & Disclaimer
AG shall not be liable to recipient or any third party for any damages, including but not limited to personal injury, property damage, loss of profits, loss of use, interruption of business or indirect, special, incidental or consequential damages, of any kind, in connection with or arising out of the furnishing, performance or use of the technical data herein. - Page 13 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: AS5047P-TS_EK_AB...
