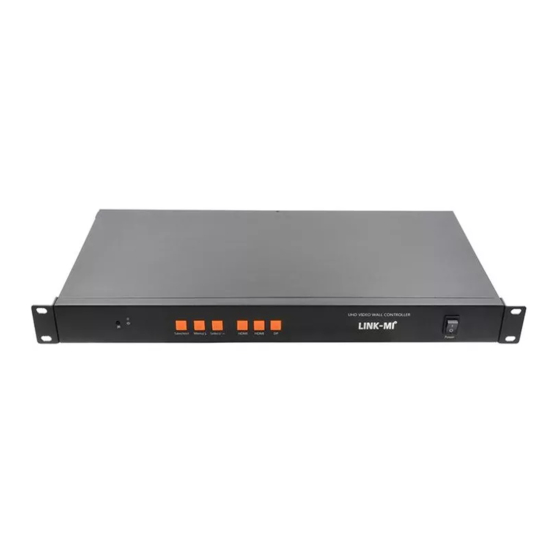

- Page 1 LM-TV09-4K2K 4K video wall controller User Manual...
-
Page 2: Table Of Contents
Catalog 1.Installation Instructions ……………1 2.Product Brief ……………………………2 3.Controller Installed …………………3 4.Remote Control Settings ………………6 5.Pressing Setting ………………………7 6.Specifications……………………………7... -
Page 3: Installation Instructions
Installation Instructions For the safety of you and your equipment, please be sure to read the safety instructions carefully before using this device. If you use in the event of doubt, please read this manual first. Detailed description of the equipment operating in the body. If you still have questions, please contact us, we will give you a satisfactory answer as soon as possible. -
Page 4: Product Brief
Product Brief 1. Overview : LM-TV-4K2K Series is a high performance UHD Ultra HD 4K Image splicer, user-customizable 2 To 12 Image stitching. Its main function is to M × N splicing display unit displays a 3840×2160@60HZ of super high definition image. Products using advanced image processing technology, the input signal can support HDMI2.0, that is 3840×2160@60HZ, will not appear, even when playing fast animation delay, dropped frames are like. -
Page 5: Controller Installed
3.Panel Description Controller Installed 1 .Open the package Check host attachments. Include the host, the power cord, remote control, warranty card and instructions. Installation machine 2.1 . TV sets: LCD TV or other display device setting input signal to HDMI State. Display unit has multiple HDMI input ports, make sure that connection splicer HDMI lines corresponding to the port;... - Page 6 Each of the LCD unit with the splicer is connected to the output port, location boxes indicate LCD, digital output port, each mosaic mode in the following illustration each LCD is connected with the corresponding port: 2.3 . Input signal connections...
- Page 7 Product support 1 HDMI 、 1 mobile signal 、 1 DP Input, all input embedded audio input or binding, users can access all the signals on demand, or access part of the signal, interface functions and interface pictures are as follows: mobile signal : Support HDMI1.4 Signal input, maximum support 3840×2160@30HZ HDMI Signal input can be backwards compatible;...
-
Page 8: Remote Control Settings
2. signal source selection LM-TV09-4K2K Signal source menu option: Auto-select, D0: DP 、 D1:HDMI 、 D2:mobile signal 2.1 . Automatic selection: Through the remote control handle menu "signal source" set to "automatic selection", in the case of equipment had no access to other sources, you can automatically insert the signal source and the signal source identification automatically display splicing unit. -
Page 9: Pressing Setting
Pressing Setting Through the chassis control functions with the remote control button function control, this section explains the function of each button, as follows: Menu Key : The following pop-up menu, repeatedly press strike Menu Button makes the cursor stays in the different submenus; Select/ : The Red menu parameters are modified;...
