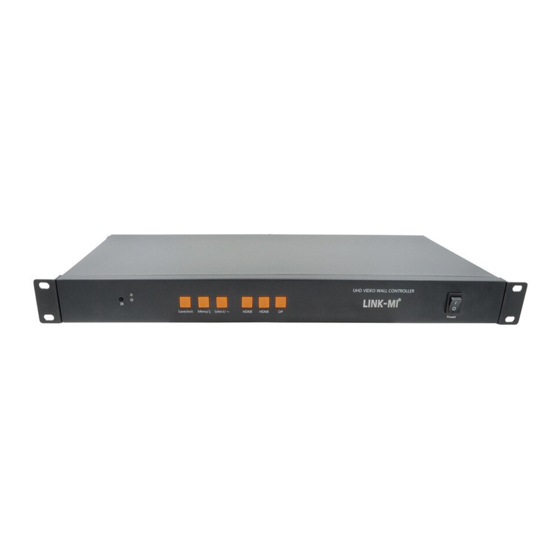

- Page 1 LM-TV08-4K2K 4K video wall controller User Manual...
-
Page 2: Table Of Contents
Catalog 1.Installation Instructions ……………1 2.Product Brief ……………………………2 3.Controller Installed …………………3 4.Remote Control Settings ………………6 5.Pressing Setting ………………………7 6.Specifications……………………………7... -
Page 3: Installation Instructions
Installation Instructions For the safety of you and your equipment, please be sure to read the safety instructions carefully before using this device. If you use in the event of doubt, please read this manual first. Detailed description of the equipment operating in the body. If you still have questions, please contact us, we will give you a satisfactory answer as soon as possible. -
Page 4: Product Brief
Product Brief 1. Overview : LM-TV-4K2K Series is a high performance UHD Ultra HD 4K Image splicer, user- customizable 2 To 12 Image stitching. Its main function is to M × N splicing display unit displays a 3840×2160@60HZ of super high definition image. Products using advanced image processing technology, the input signal can support HDMI2.0, that is 3840×... -
Page 5: Controller Installed
3.Panel Description Controller Installed 1 .Open the package Check host attachments. Include the host, the power cord, remote control, warranty card and instructions. Installation machine 2.1 . TV sets:... - Page 6 LCD TV or other display device setting input signal to HDMI State. Display unit has multiple HDMI input ports, make sure that connection splicer HDMI lines corresponding to the port; Stitching device connected to the TV: When in place of picture mosaic, by HDMI Line equipment Output With LCD TV HDMI Input connection, please note that TV must correspond with the splicing processor is connected to the port.
- Page 7 2.3 . Input signal connections Product support 1 HDMI 、 1 mobile signal 、 1 DP Input, all input embedded audio input or binding, users can access all the signals on demand, or access part of the signal, interface functions and interface pictures are as follows: mobile signal : Support HDMI1.4 Signal input, maximum support 3840×2160@30HZ HDMI Signal input can be backwards compatible;...
-
Page 8: Remote Control Settings
After the above cable connect the power, the power indicator light, equipment in good working condition; System topology Remote Control Settings Stitching device and the display unit are attached, connected to power the red power light is on, the device works, by remote control or key makes it easy to set up your equipment, or the chassis configuration. -
Page 9: Pressing Setting
automatically insert the signal source and the signal source identification automatically display splicing unit. 2.2. Manual selection: Can be used for a single source or multiple sources at the same time connected to the device, by manually switching the signal source on the remote control display screen displays an image. - Page 10 Name Spec HDMI input Interface HDMI A type（HDMI2.0 support HDCP2.2） Resolution Up to 3840×2160@60Hz mobile signal input HDMI A type（HDMI1.4 support HDCP2.0 and mobile signal） Interface Resolution Up to 3840×2160@30Hz DP input Interface DP1.2 Resolution Up to 3840×2160@60Hz Audio output Fit for output video HDMI output 1920×1080@60Hz...
